LESQFS 212 TDT.H

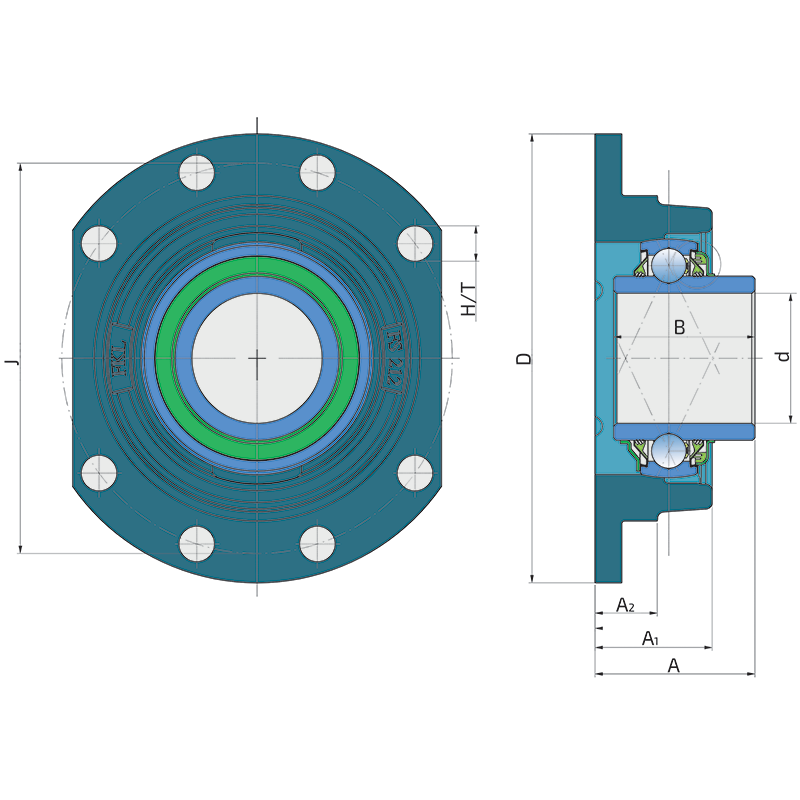

Technical specifications
| d |
Bore diameter |
60 mm |
| D |
Outside diameter |
205 mm |
| J |
Pitch circle diameter |
180 mm |
| A |
Overall width |
73.7 mm |
| A1 |
Total housing width |
54 mm |
| A2 |
Housing flange thickness |
28.7 mm |
| B |
Width inner ring |
65.1 mm |
| H/T |
Hole/Thread |
14.5 mm |
| kg |
Mass |
5.3 kg |
| Co |
Static load rating |
67.2 kN |
| Cdyn |
Dynamic load rating |
79.3 kN |
| Pu |
Fatigue load limit |
2.82 kN |

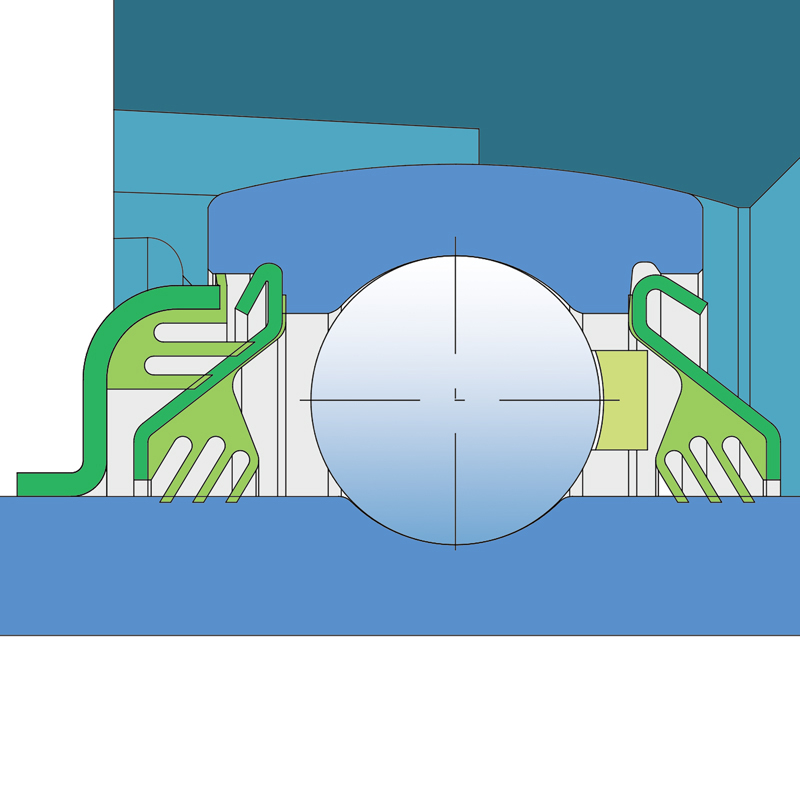

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| HORSCH |
95110360 |
| HORSCH |
96080209 (old designation) |
| HORSCH |
00240187 (old designation) |
| RBF |
PN00063 |
| АЗСМ АО (Машзавод) |
LESQFS 212 TDT.H |
Installations
| HORSCH |
PRONTO |
| HORSCH |
Tiger |
| HORSCH |
Focus |
