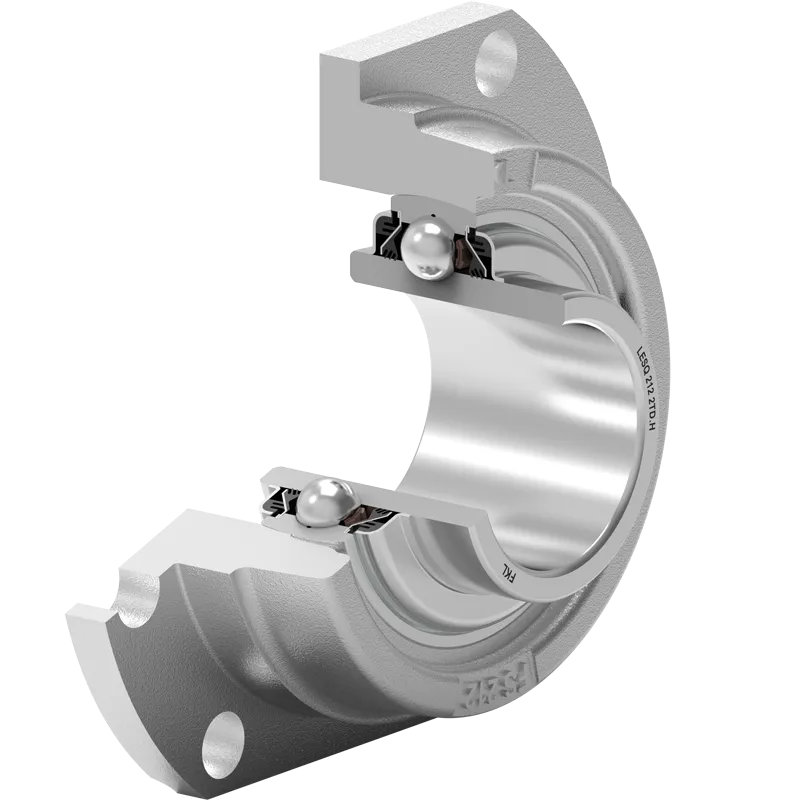

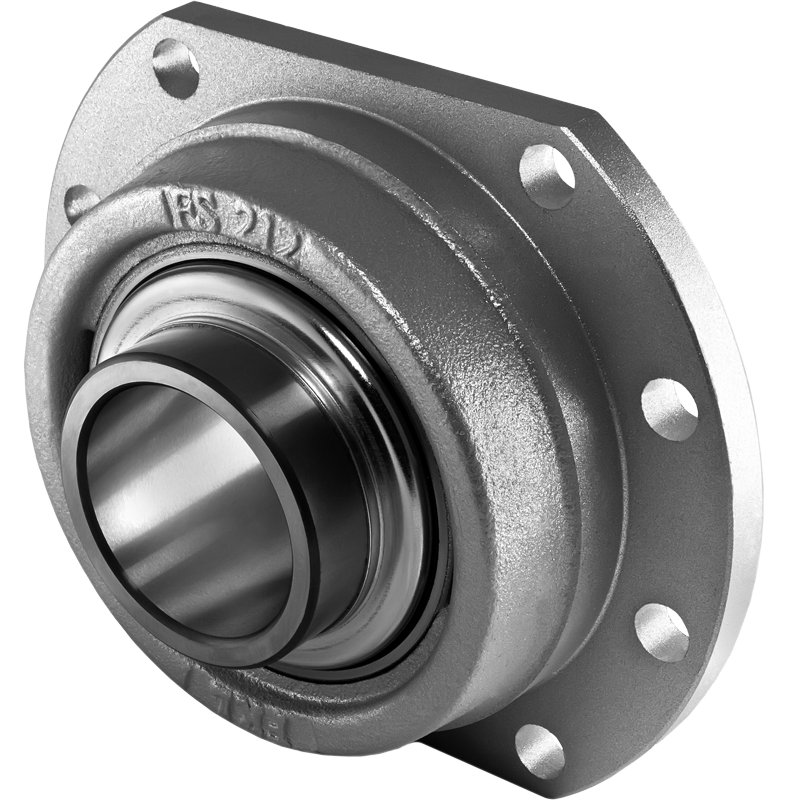

LESQFS 212 2TD.H

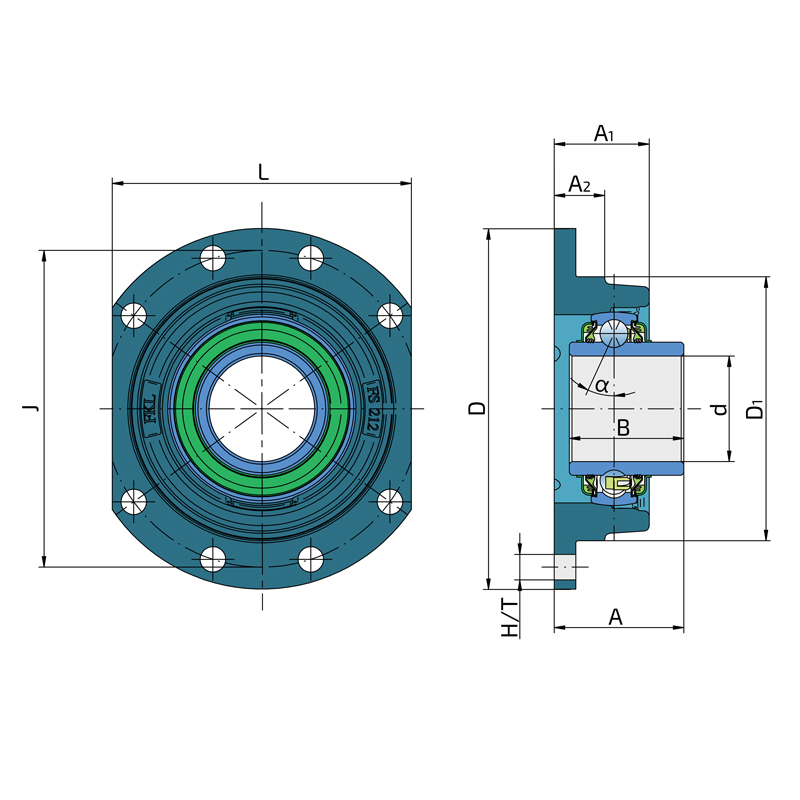

Technical specifications
| D | Outside diameter | 205 mm |
| D1 | Outside diameter of the flange | 150 mm |
| J | Pitch circle diameter | 180 mm |
| L | Overall width | 170 mm |
| d | Bore diameter | 60 mm |
| A | Overall width | 73.7 mm |
| A1 | Total housing width | 54 mm |
| A2 | Housing flange thickness | 28.7 mm |
| B | Width inner ring | 65.1 mm |
| H/T | Hole/Thread | 14.5 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 5.27 kg |
| Co | Static load rating | 67.2 kN |
| Cdyn | Dynamic load rating | 79.3 kN |
| Pu | Fatigue load limit | 2.82 kN |

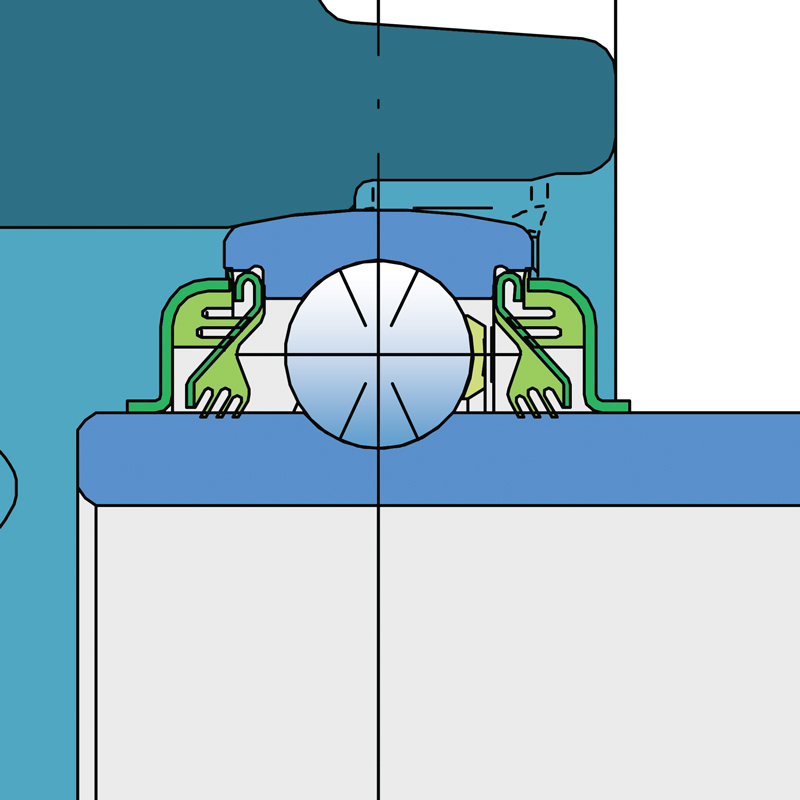

DOUBLE T SEAL / DOUBLE T SEAL
Double 3-lip seal on both sides.
The seals on both sides provide effective protection against contaminant penetration.
Cross references
| HORSCH | 95110360 |
| HORSCH | 96080209 (old designation) |
| HORSCH | 00240187 (old designation) |
| RBF | PN00063 |
| АЗСМ АО (Машзавод) | LESQFS 212 TDT.H |
Installations
| HORSCH | Pronto |
| HORSCH | Tiger |
| HORSCH | Focus |
