LESQ 212 TDT.H

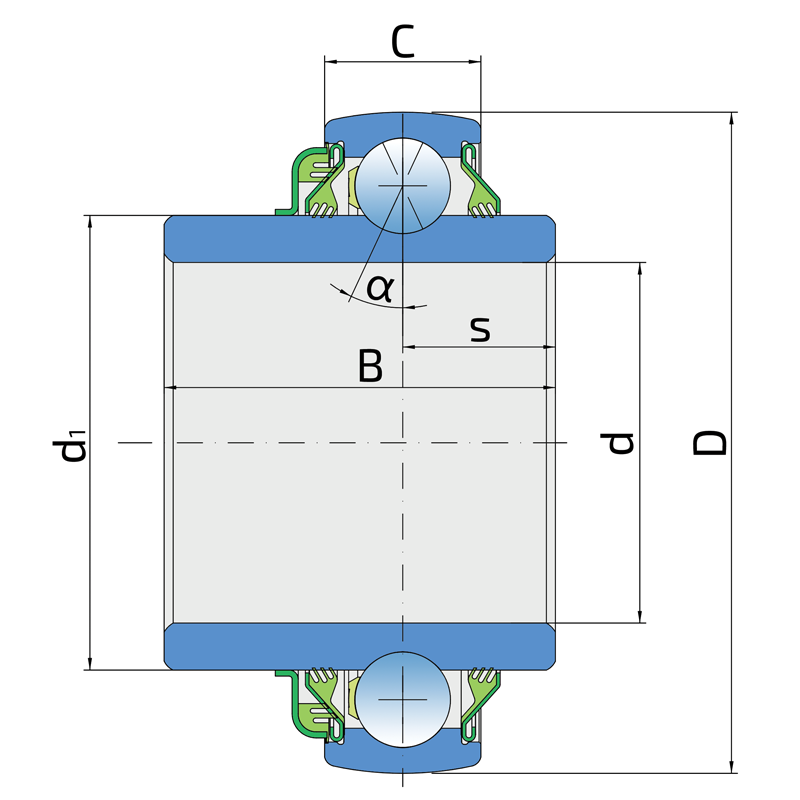

Technical specifications
| d | Bore diameter | 60 mm |
| D | Outside diameter | 110 mm |
| B | Width inner ring | 65.1 mm |
| C | Width outer ring | 26 mm |
| s | Distance from inner ring side face to raceway centre | 25.4 mm |
| d1 | Outer diameter inner ring | 75.64 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 1.453 kg |
| Cdyn | Dynamic load rating | 79.3 kN |
| Co | Static load rating | 67.2 kN |
| Pu | Fatigue load limit | 2.822 kN |

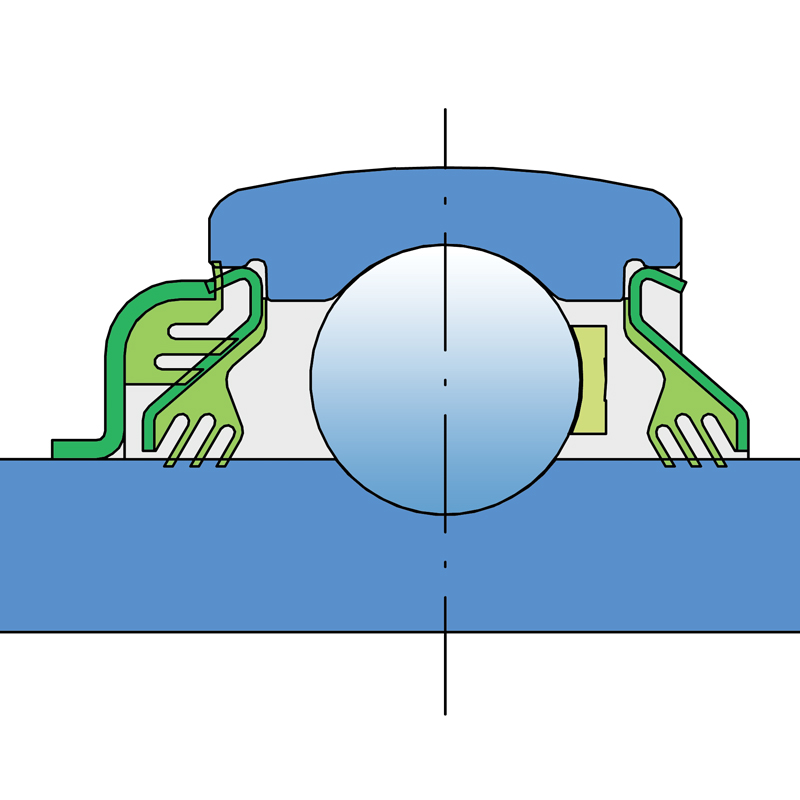

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
