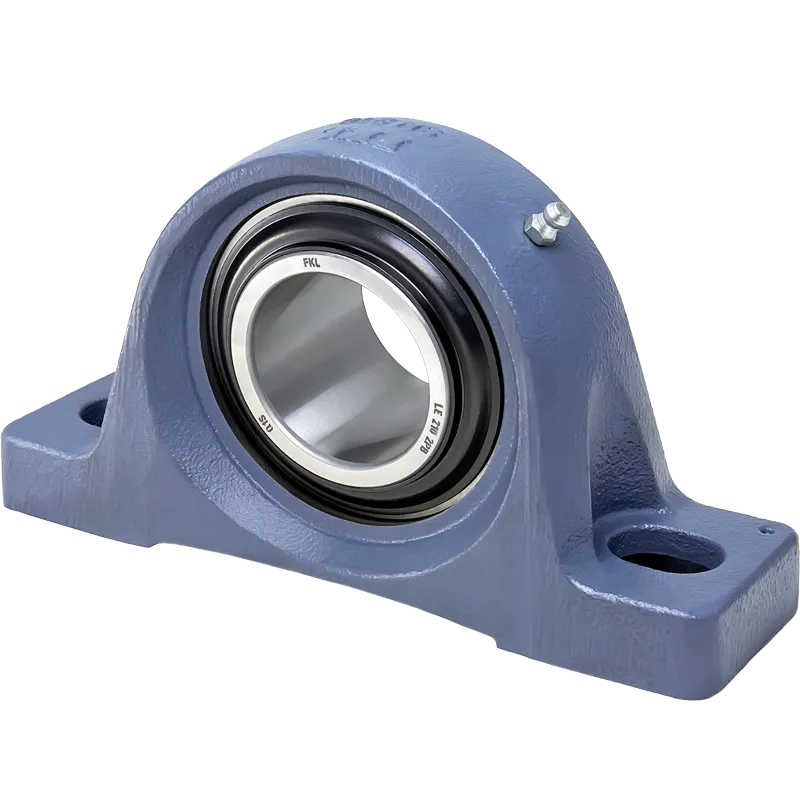

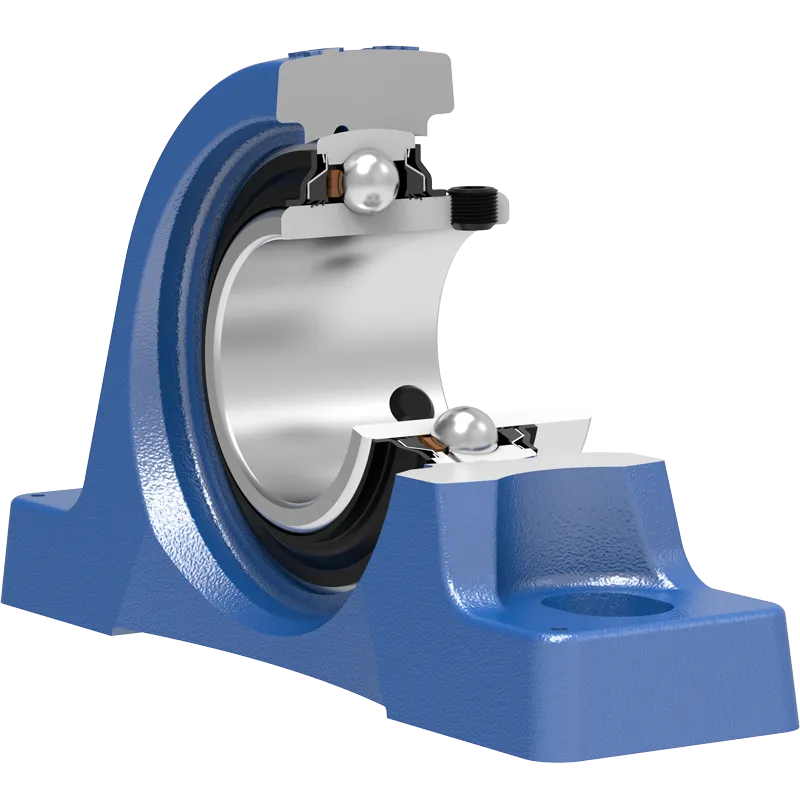

LESN 210 2TB

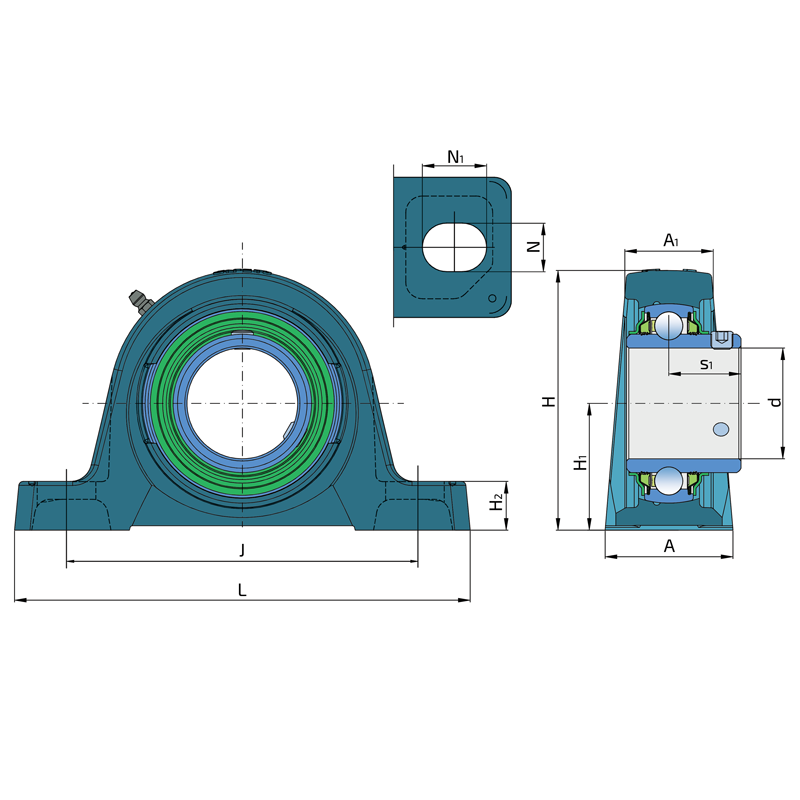

Technical specifications
| d | Bore diameter | 50 mm |
| L | Overall length | 206 mm |
| A | Housing contact surface width | 58 mm |
| A1 | Width of the top of the housing | 38 mm |
| H | Housing height | 113.2 mm |
| H1 | Distance from the contact surface to the bearing axis | 57.2 mm |
| H2 | Housing foot thickness | 22 mm |
| Jmin | Min. distance between the holes | 151 mm |
| Jmax | Max. distance between the holes | 164 mm |
| N | Diameter of attachment slot | 20 mm |
| N1 | Length of attachment slot | 26.5 mm |
| s1 | Distance from locking device side face to raceway centre | 32.6 mm |
| kg | Mass | 2.74 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.98 kN |

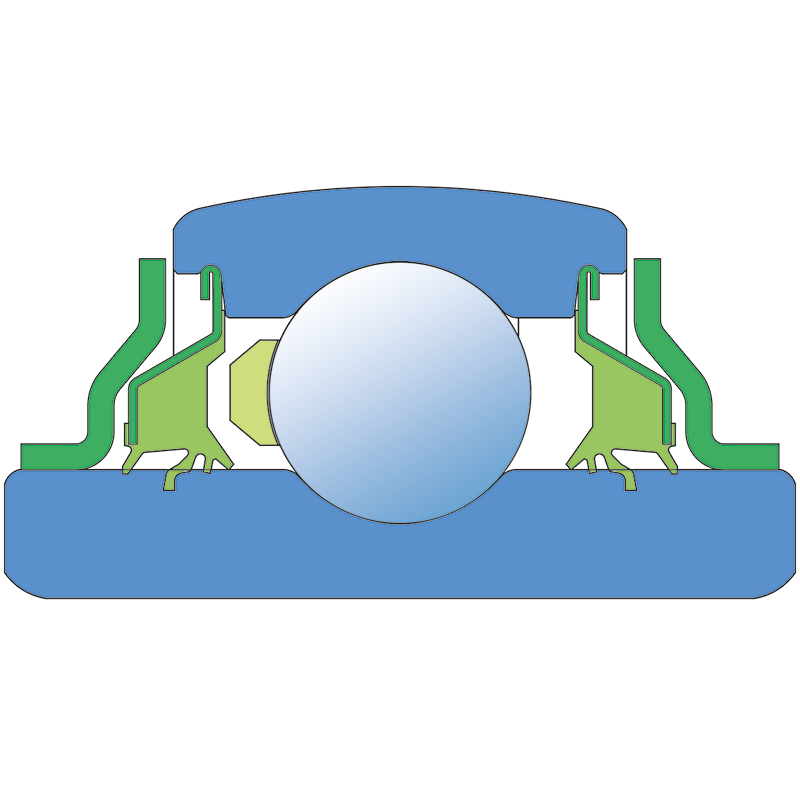

PB SEAL / PB SEAL (2PB)
A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
Cross references
| GARDELL | LESN 210 2TB |
| ROLMAKO | LESN 210 2TB |
| MANDAM | LESN 210 2TB |
