LES 207-104.2F.Zn1

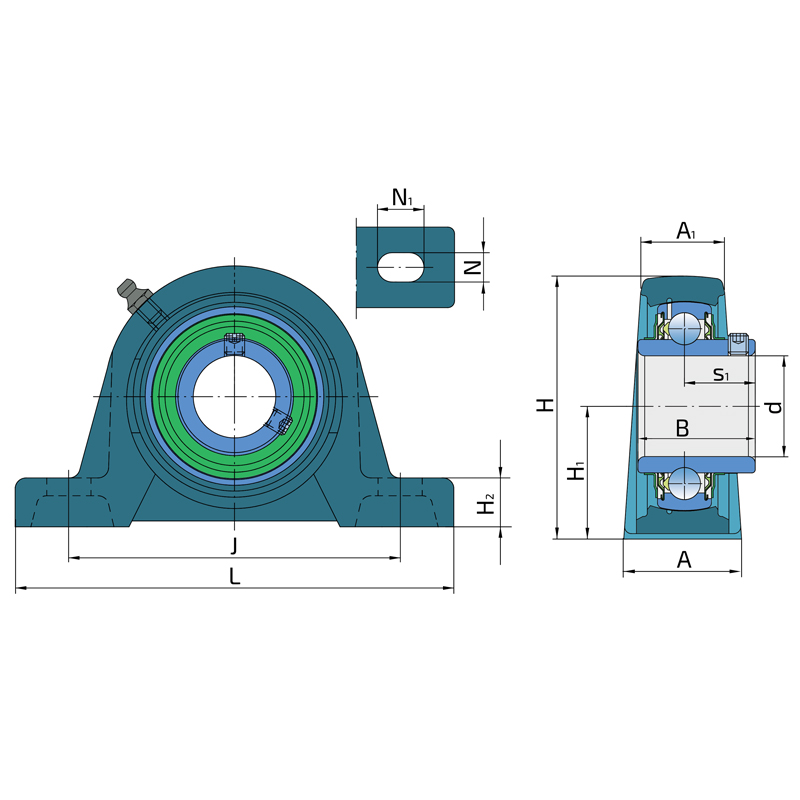

Technical specifications
| d | Bore diameter | 31.75 mm |
| d | Bore diameter | 1 1/4" inch |
| A | Housing contact surface width | 46 mm |
| A1 | Width of the top of the housing | 28 mm |
| H | Housing height | 92.1 mm |
| H1 | Distance from the contact surface to the bearing axis | 47.6 mm |
| H2 | Housing foot thickness | 17 mm |
| Jmin | Min. distance between the holes | 122 mm |
| Jmax | Max. distance between the holes | 136 mm |
| N | Diameter of attachment slot | 17 mm |
| N1 | Length of attachment slot | 24 mm |
| s1 | Distance from locking device side face to raceway centre | 25.4 mm |
| B | Width inner ring | 42.9 mm |
| kg | Mass | 1.6 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.643 kN |
F SEAL / F SEAL (2F)
Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
