LEN 207 2T

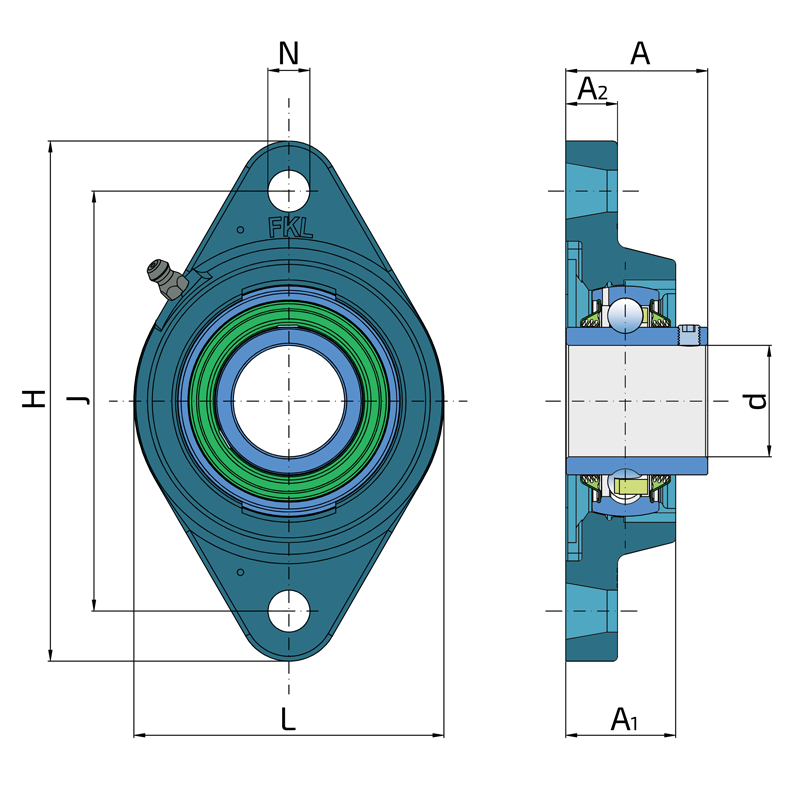

Technical specifications
| d | Bore diameter | 35 mm |
| L | Overall width | 96 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 44.5 mm |
| A1 | Total housing width | 34 mm |
| A2 | Housing flange thickness | 16 mm |
| H | Housing height | 161 mm |
| J | Distance between the holes | 130 mm |
| N | Diameter of attachment slot | 16 mm |
| kg | Mass | 1.27 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.655 kN |

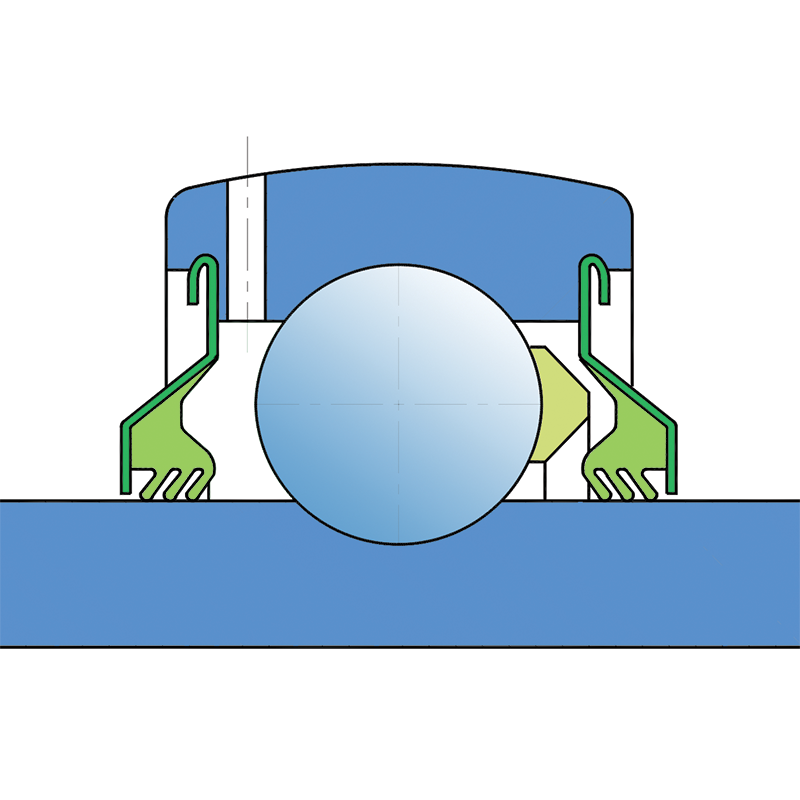

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
