LEN 205 2T

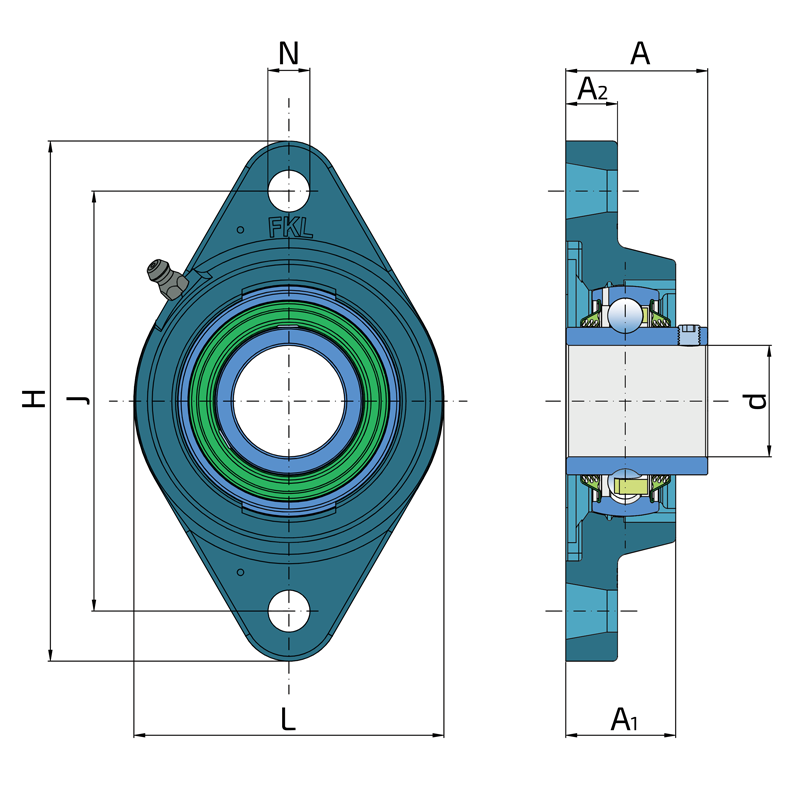

Technical specifications
| d | Bore diameter | 25 mm |
| L | Overall width | 68 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 35.8 mm |
| A1 | Total housing width | 27 mm |
| A2 | Housing flange thickness | 14 mm |
| H | Housing height | 130 mm |
| J | Distance between the holes | 99 mm |
| N | Diameter of attachment slot | 16 mm |
| kg | Mass | 0.61 kg |
| Cdyn | Dynamic load rating | 14 kN |
| Co | Static load rating | 7.8 kN |
| Pu | Fatigue load limit | 0.335 kN |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| EXPOM | LEN 205 2T |
| SNR | UCFL205L3 |
