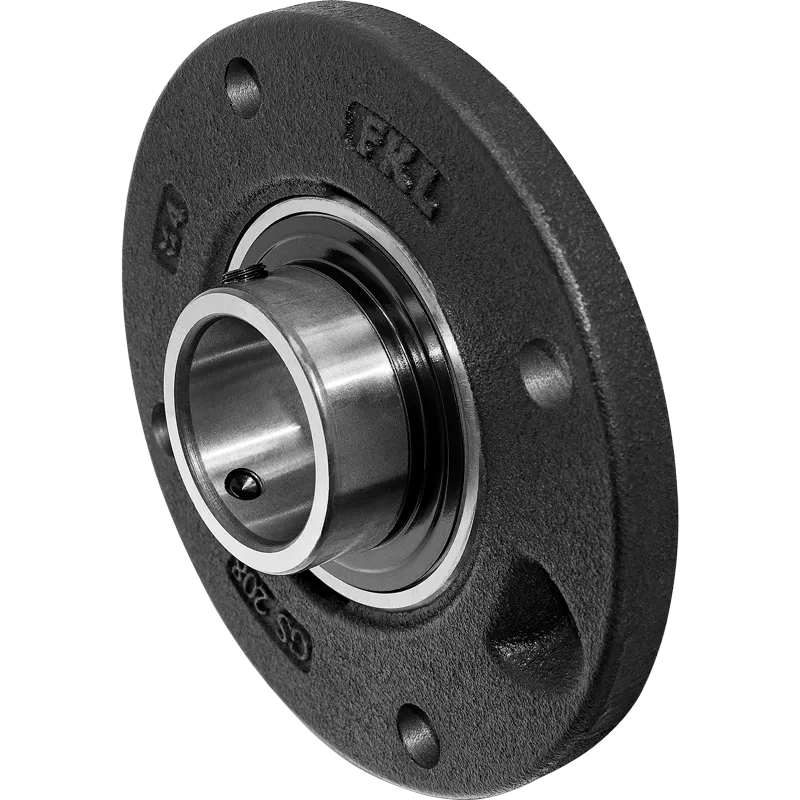

LEGS 208 2F.H

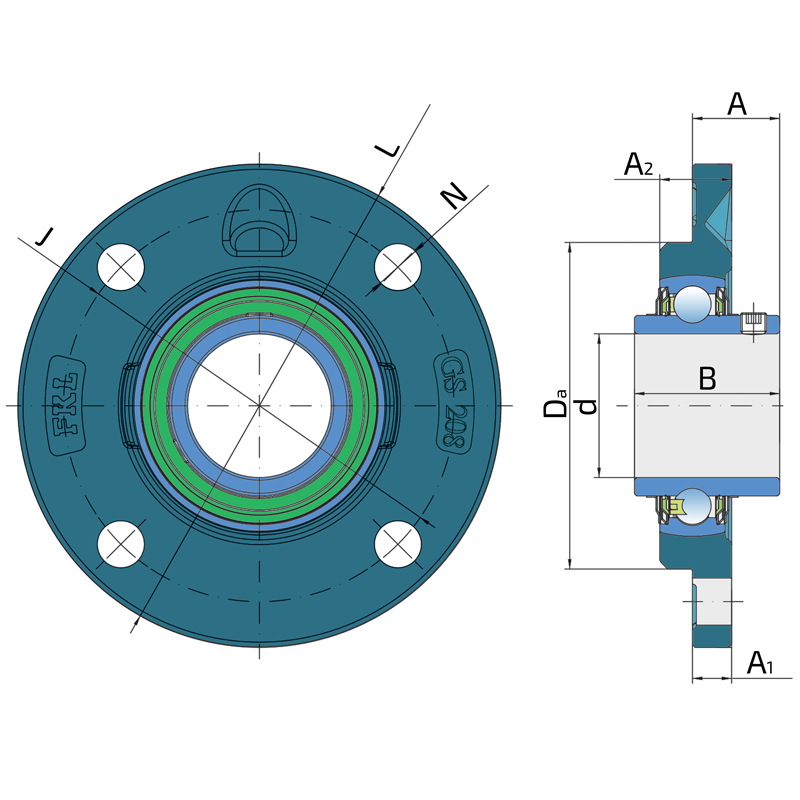

Technical specifications
| d |
Bore diameter |
40 mm |
| Da |
Centering diameter |
100 mm |
| L |
Diameter of housings |
145 mm |
| A |
Distance from the housing flange to the front of the inner ring of the bearing |
29.2 mm |
| A1 |
Housing flange thickness |
11.5 mm |
| A2 |
Height of the housing |
23 mm |
| J |
Pitch circle diameter |
120 mm |
| N |
Hole diameter |
11.5 mm |
| B |
Width inner ring |
49.2 mm |
| kg |
Mass |
1.656 kg |
| Cdyn |
Dynamic load rating |
30.7 kN |
| Co |
Static load rating |
19 kN |
| Pu |
Fatigue load limit |
0.798 kN |

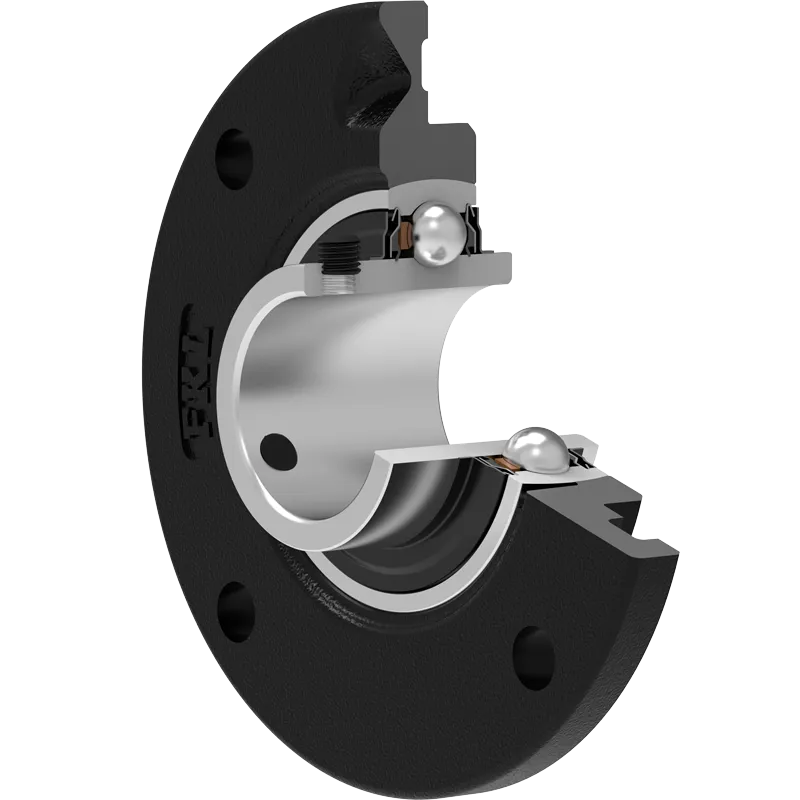

F SEAL / F SEAL (2F)
Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type,
with the labyrinth between the sheet part and the rubber lip
that conducts the contact sealing. The friction and speeds
are the same as with S but has much better protection
against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and
rough particles. At the same time makes the labyrinth with
the rubber part. The rubber part provides the contact sealing
that prevents the penetration of the finer impurities, water,
moisture, steam etc. Suitable for heavier conditions due to
better protection against foreign matters. It is used with the
Y bearings (standard).
Cross references
| INA |
RMEY40 |
| Ростсельмаш КЗ |
LEGS 208 2F.H |
