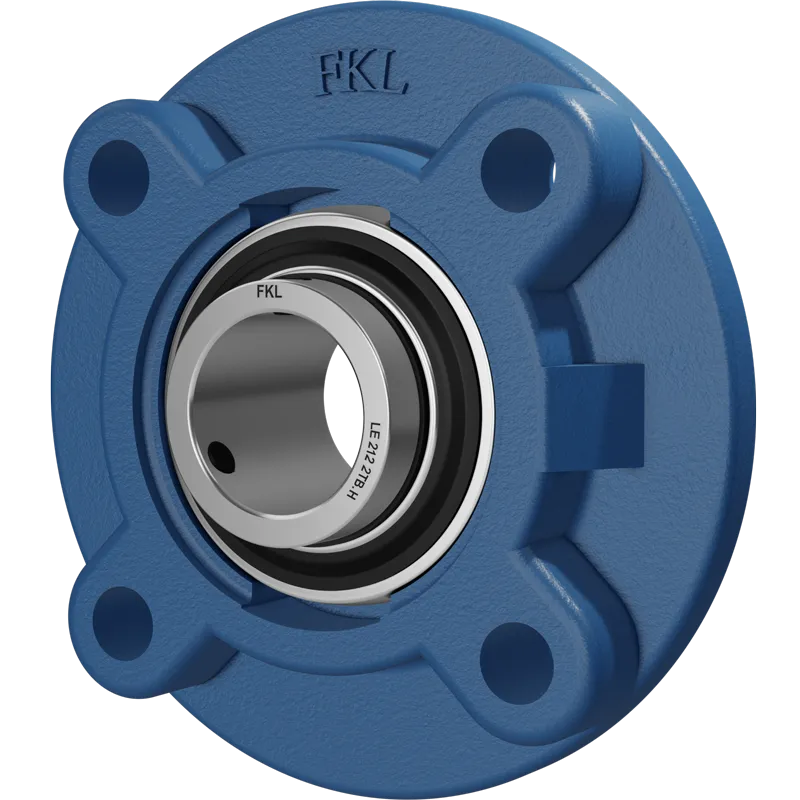

LEG 212 2TB.H

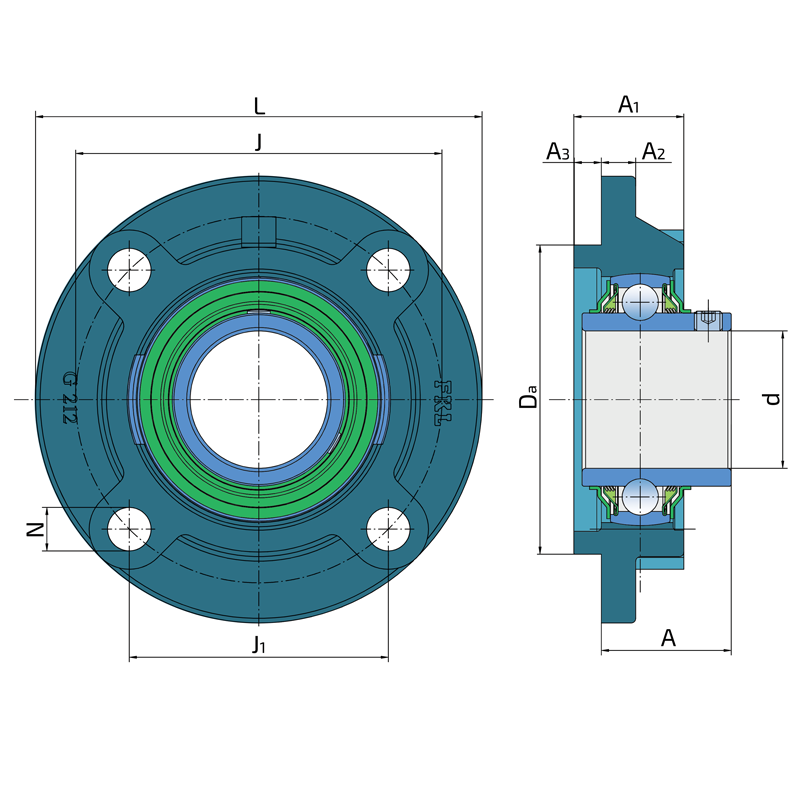

Technical specifications
| d |
Bore diameter |
60 mm |
| Da |
Centering diameter |
135 mm |
| L |
Overall width |
195 mm |
| A |
Distance from the housing flange to the front of the inner ring of the bearing |
56.7 mm |
| A1 |
Total housing width |
48 mm |
| A2 |
Housing flange thickness |
15 mm |
| A3 |
Centering diameter height |
12 mm |
| J |
Pitch circle diameter |
160 mm |
| J1 |
Distance between the holes |
113.1 mm |
| N |
Diameter of attachment slot |
19 mm |
| kg |
Mass |
5.02 kg |
| Cdyn |
Dynamic load rating |
52.7 kN |
| Co |
Static load rating |
36 kN |
| Pu |
Fatigue load limit |
1.53 kN |

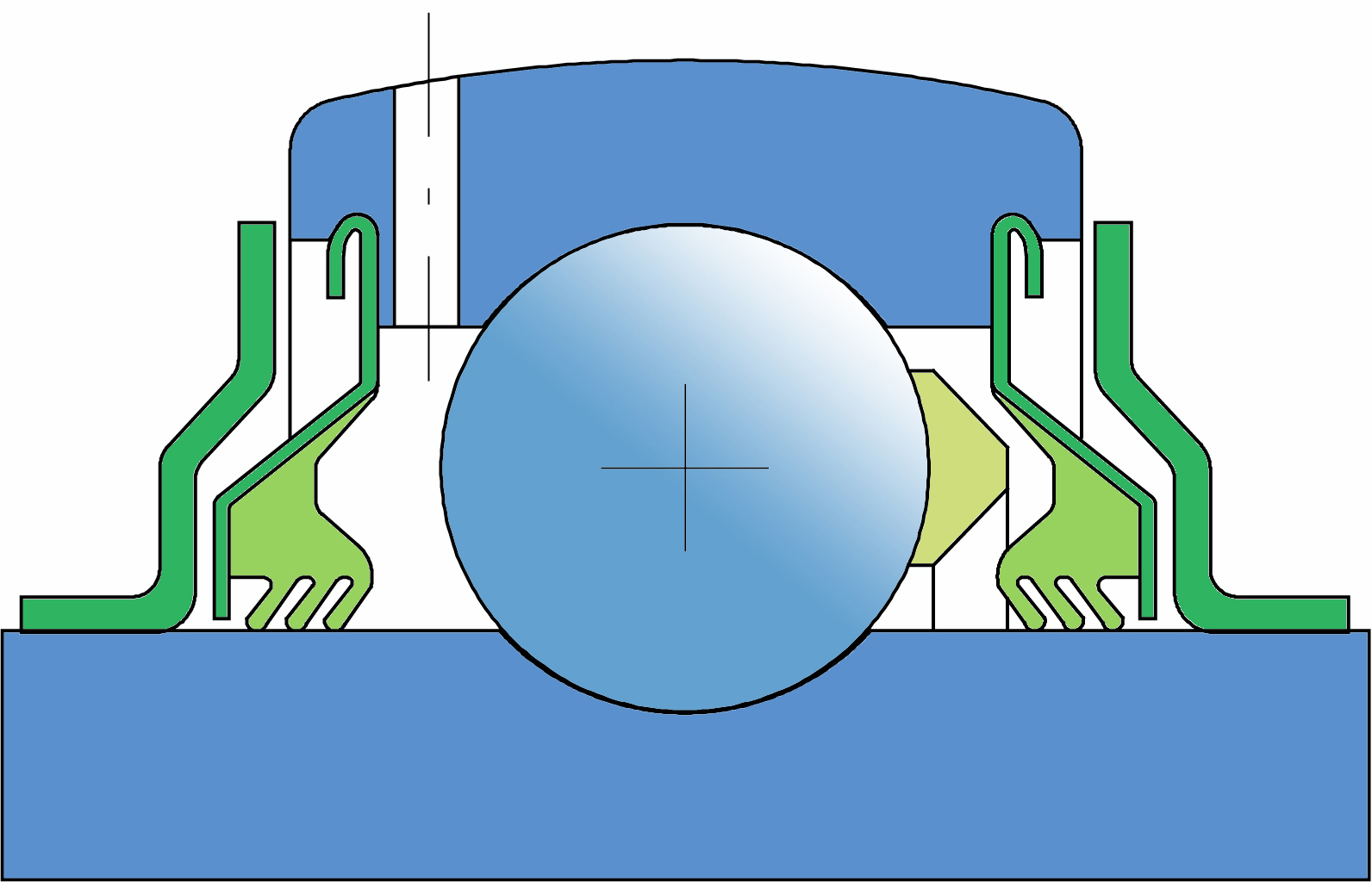

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the
bearing, provides equal protection against contamination.
The Metal flinger ring protects the seal from mechanical
damage.
