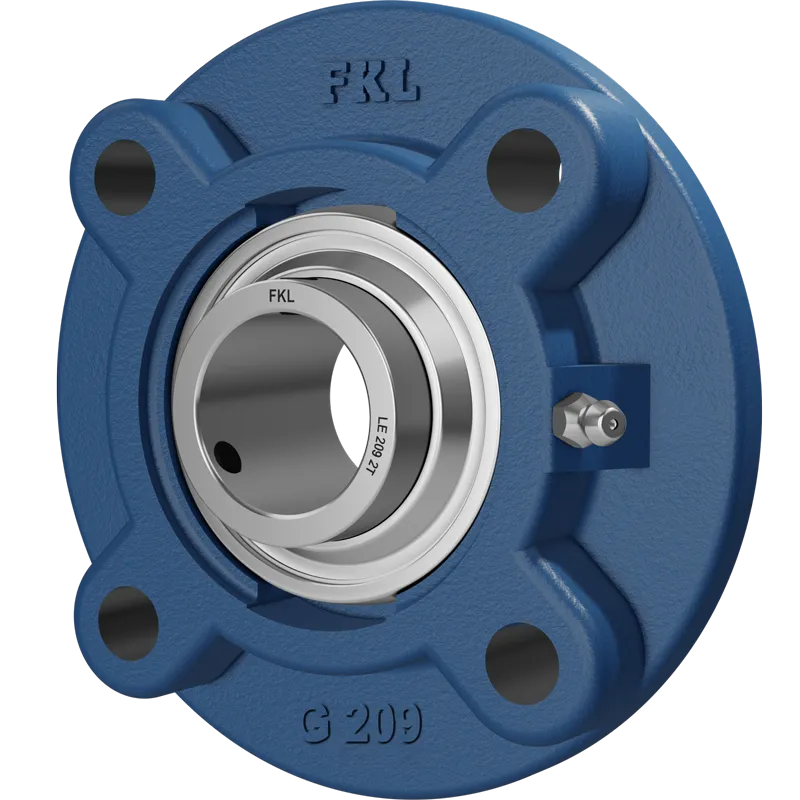

LEG 209 2T

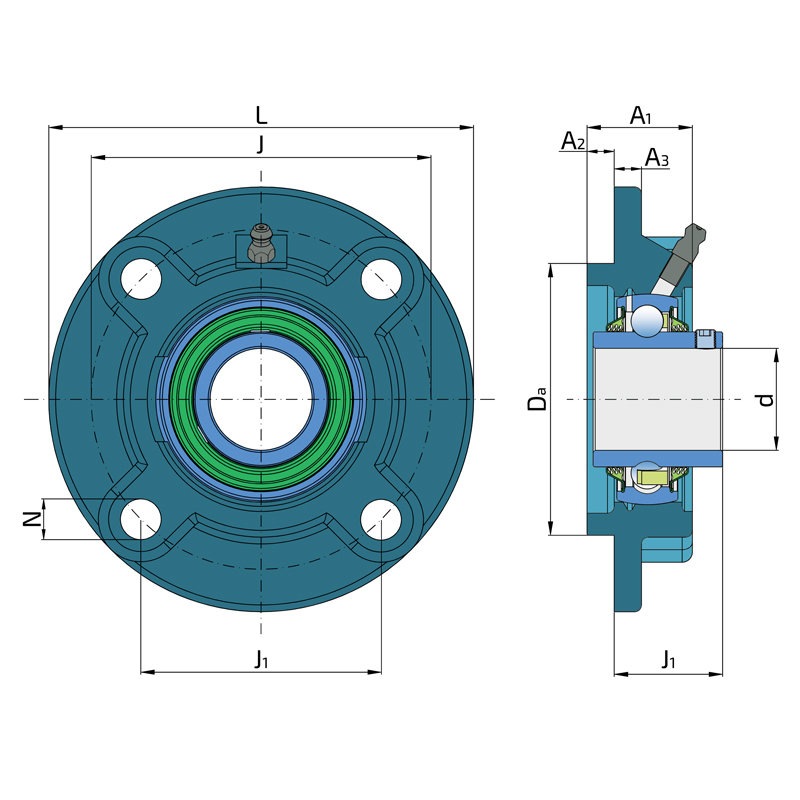

Technical specifications
| d | Bore diameter | 45 mm |
| Da | Centering diameter | 105 mm |
| L | Overall width | 160 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 40.2 mm |
| A1 | Total housing width | 38 mm |
| A2 | Housing flange thickness | 14 mm |
| A3 | Centering diameter height | 12 mm |
| J | Pitch circle diameter | 132 mm |
| J1 | Distance between the holes | 93.3 mm |
| N | Diameter of attachment slot | 16 mm |
| kg | Mass | 2.64 kg |
| Cdyn | Dynamic load rating | 33.2 kN |
| Co | Static load rating | 21.6 kN |
| Pu | Fatigue load limit | 0.915 kN |

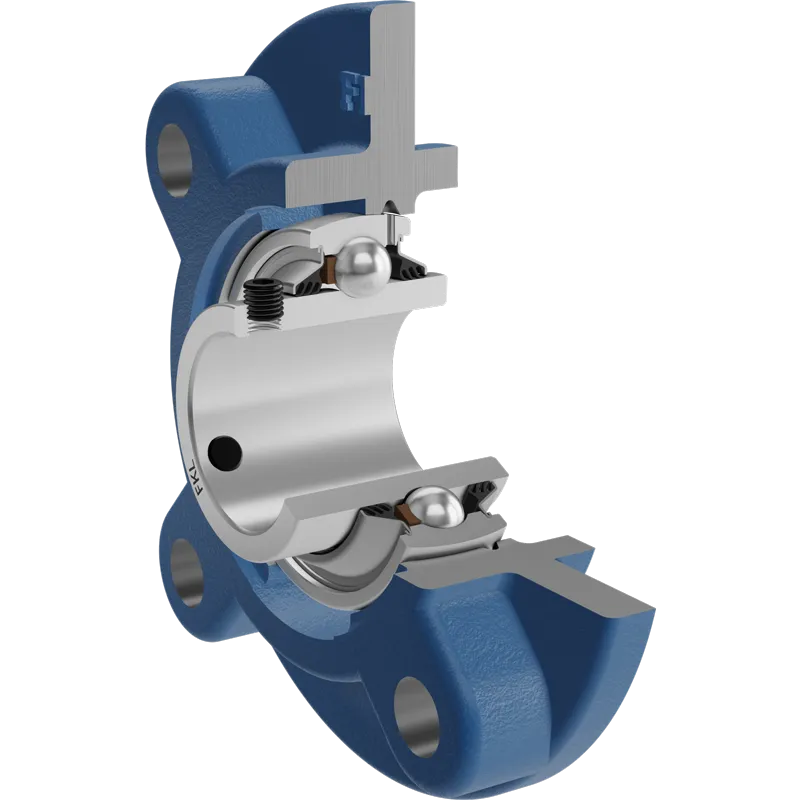

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
