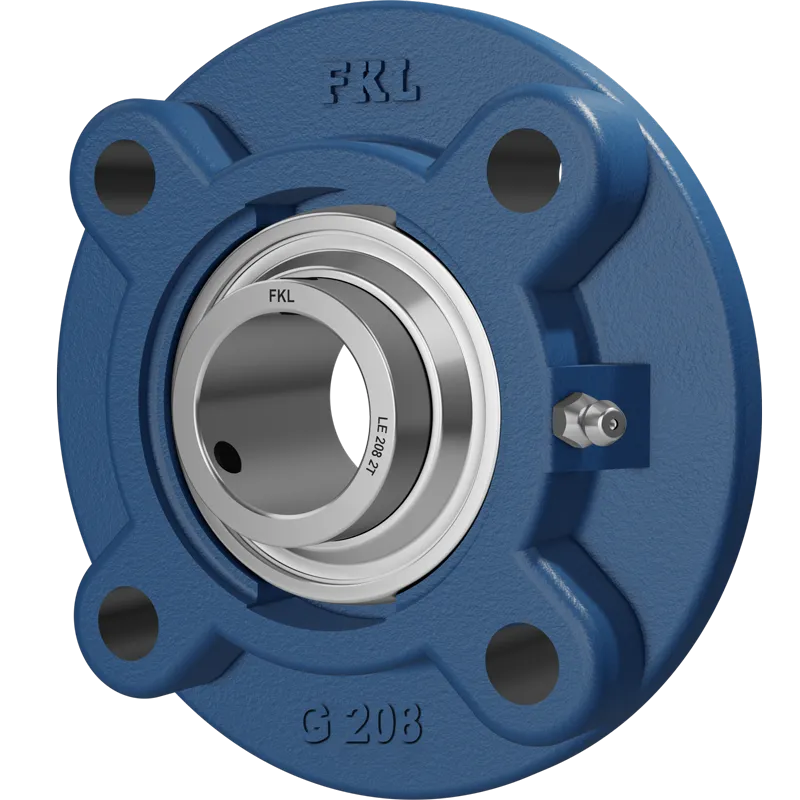

LEG 208 2T

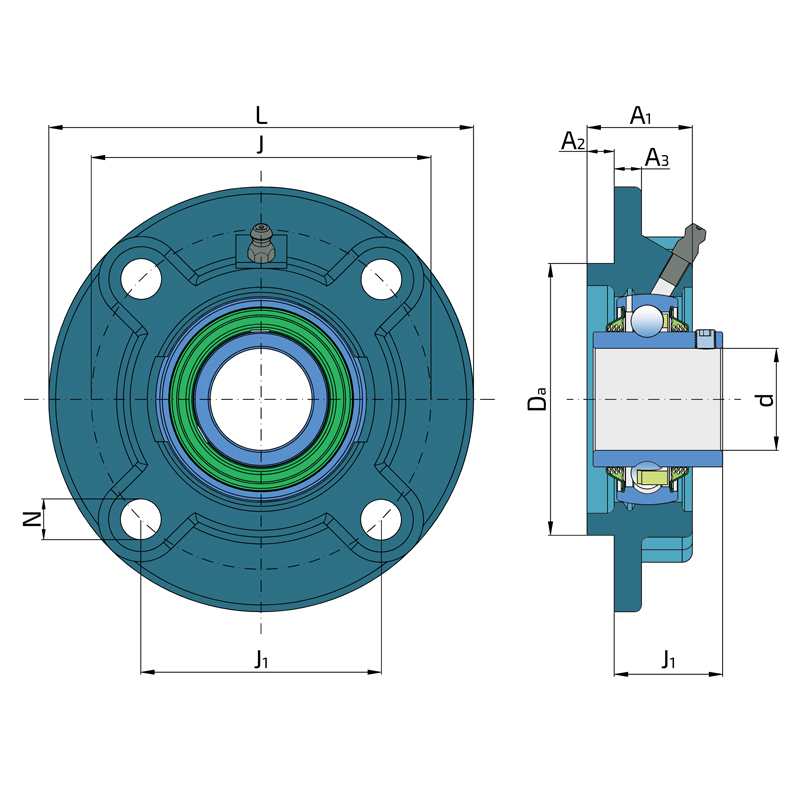

Technical specifications
| d |
Bore diameter |
40 mm |
| Da |
Centering diameter |
100 mm |
| L |
Overall width |
145 mm |
| A |
Distance from the housing flange to the front of the inner ring of the bearing |
41.2 mm |
| A1 |
Total housing width |
36 mm |
| A2 |
Housing flange thickness |
9 mm |
| A3 |
Centering diameter height |
10 mm |
| J |
Pitch circle diameter |
120 mm |
| J1 |
Distance between the holes |
84.8 mm |
| N |
Diameter of attachment slot |
14 mm |
| kg |
Mass |
1.89 kg |
| Cdyn |
Dynamic load rating |
30.7 kN |
| Co |
Static load rating |
19 kN |
| Pu |
Fatigue load limit |
0.8 kN |

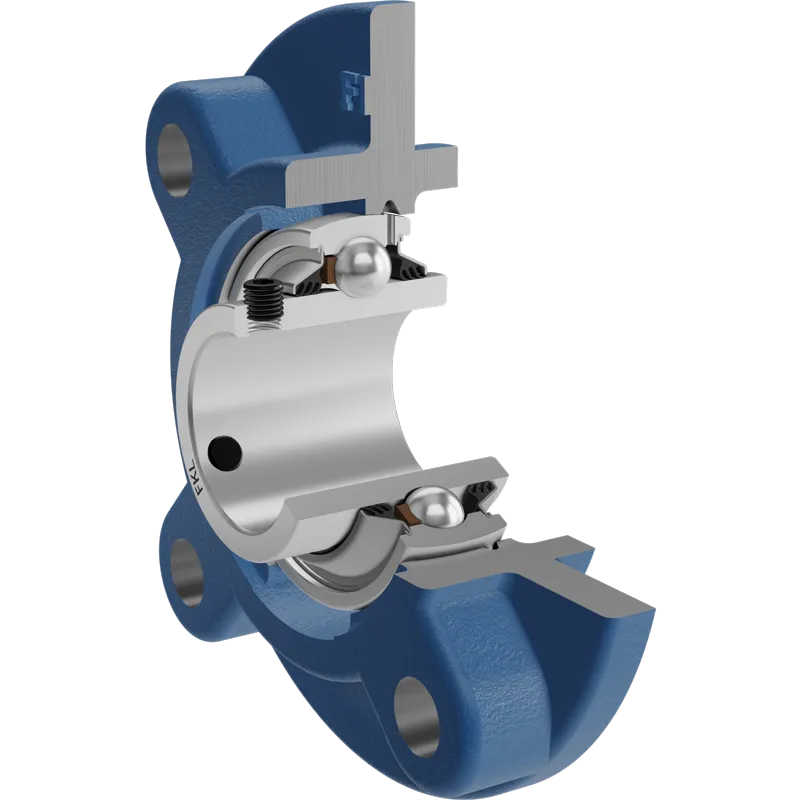

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
