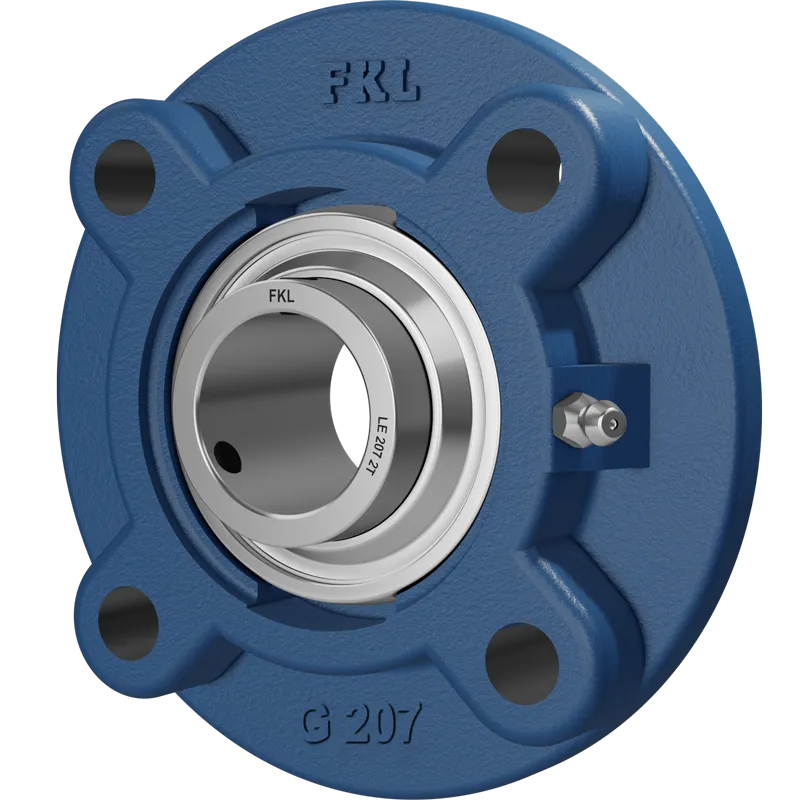

LEG 207 2T

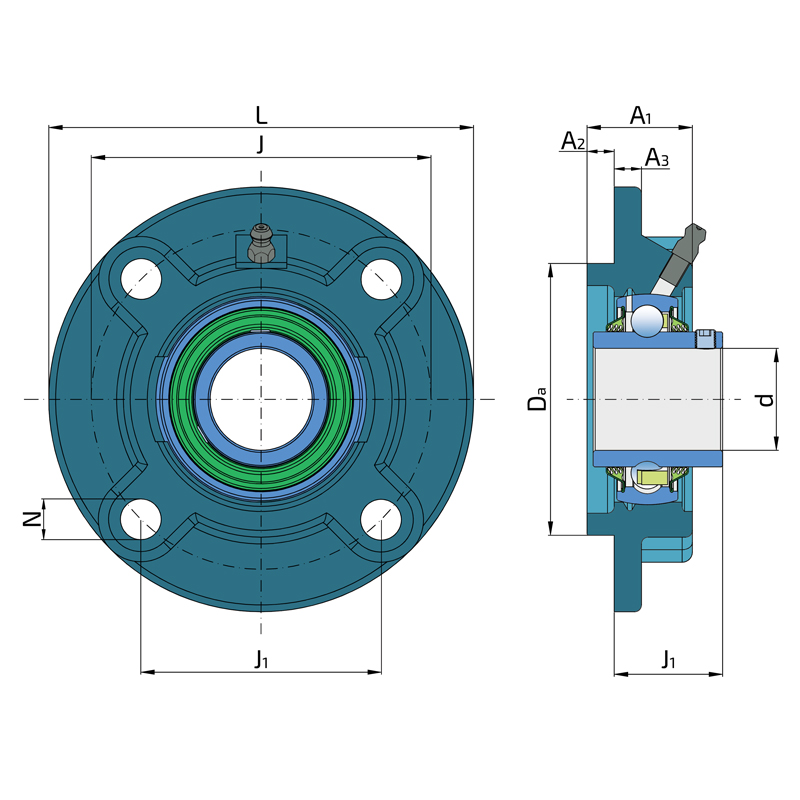

Technical specifications
| d | Bore diameter | 35 mm |
| Da | Centering diameter | 90 mm |
| L | Overall width | 135 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 36.5 mm |
| A1 | Total housing width | 34 mm |
| A2 | Housing flange thickness | 9 mm |
| A3 | Centering diameter height | 8 mm |
| J | Pitch circle diameter | 110 mm |
| J1 | Distance between the holes | 77.8 mm |
| N | Diameter of attachment slot | 14 mm |
| kg | Mass | 1.64 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.655 kN |

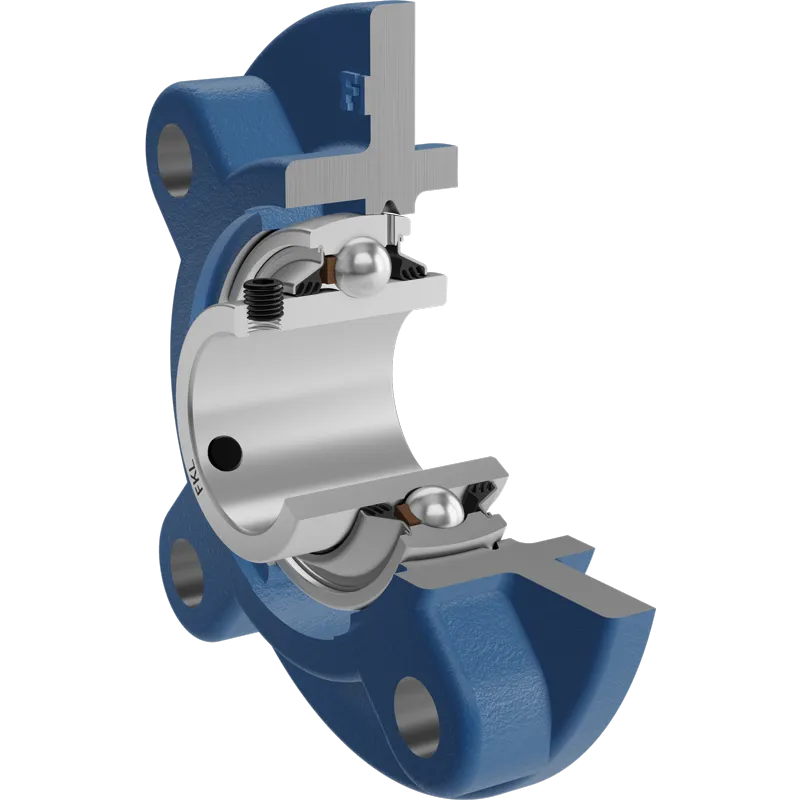

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
