LEFN 212 M 2TB

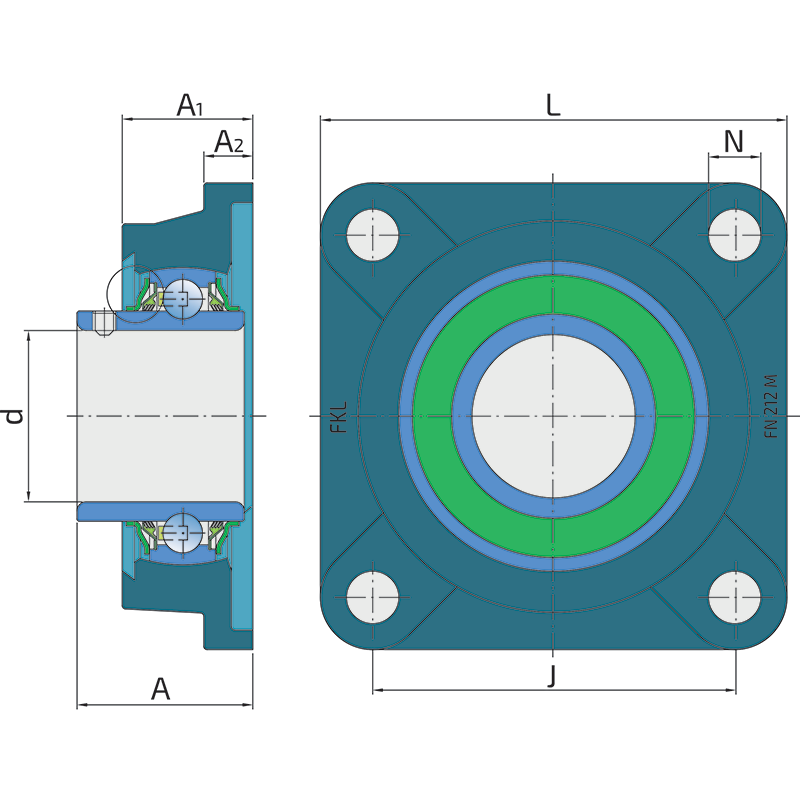

Technical specifications
| d |
Bore diameter |
60 mm |
| J |
Distance between the holes |
143 mm |
| L |
Total length |
175 mm |
| A |
Overall width |
73.7 mm |
| A1 |
Total housing width |
52 mm |
| A2 |
Housing flange thickness |
17 mm |
| N |
Hole diameter |
18 mm |
| kg |
Mass |
4.27 kg |
| Cdyn |
Dynamic load rating |
52 kN |
| Co |
Static load rating |
36 kN |
| Pu |
Fatigue load limit |
1.512 kN |

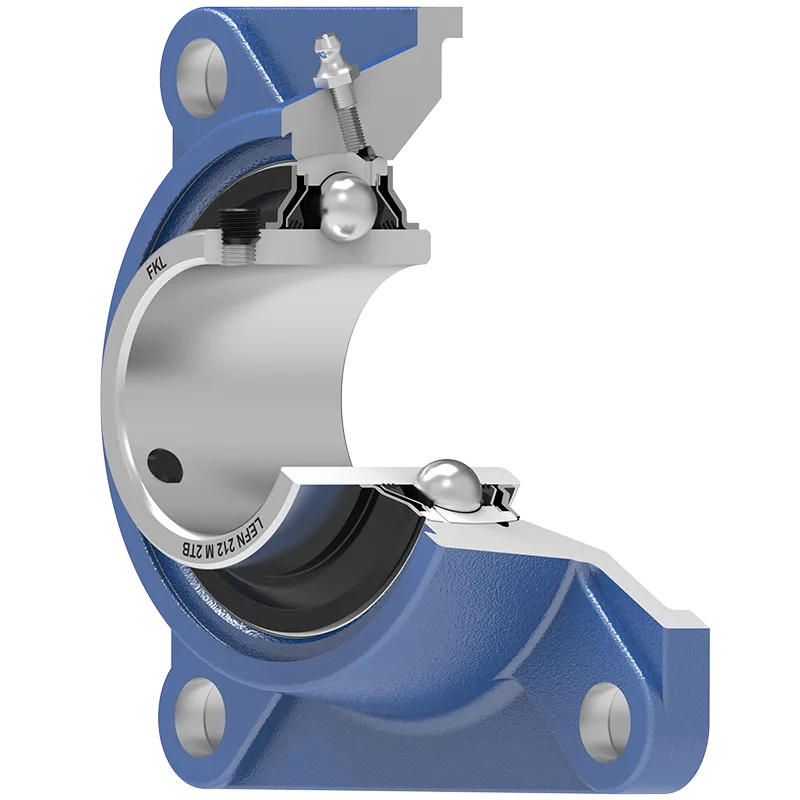

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the
bearing, provides equal protection against contamination.
The Metal flinger ring protects the seal from mechanical
damage.
Cross references
| USARYA |
LEFN 212 M 2TB |
| HORSCH |
00240198 |
| HORSCH |
00240165 |
| HORSCH |
00240231 |
| INA |
UCF212 |
| INA |
F-581539-0200+F-581539-0011 |
| SNR |
UCFE212G2L3 |
| SKF |
FY60TF.M |
| SNR |
XUC212B133+FE212GGG |
Installations
| HORSCH |
FOCUS |
| HORSCH |
SERTO |
| HORSCH |
PRONTO |
| HORSCH |
SPRINTER |
| HORSCH |
TIGER |
