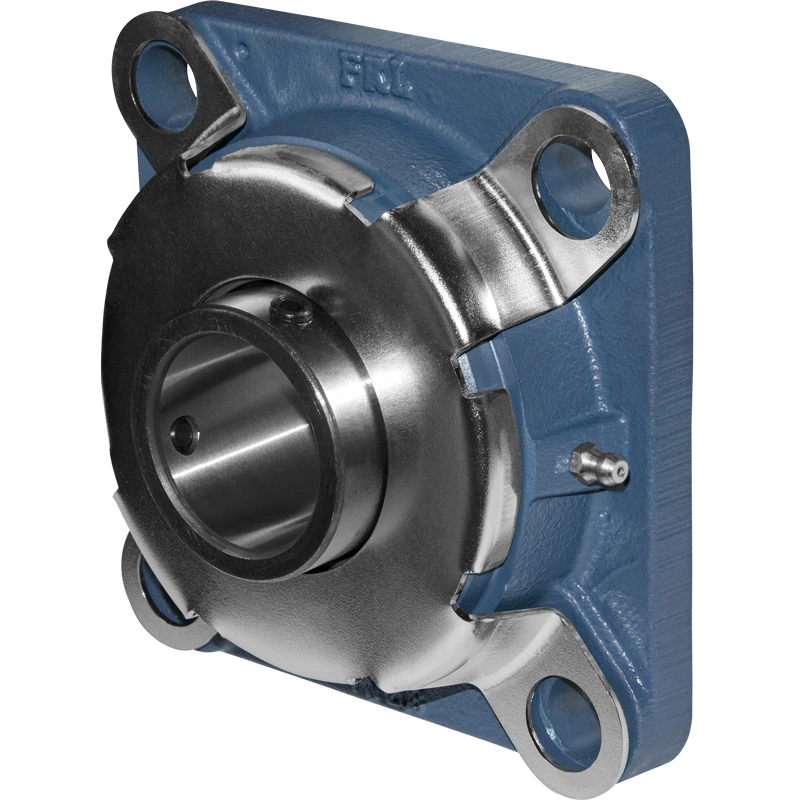

LEFN 210 2PC
Technical specifications
| d | Bore diameter | 50 mm |
| d1 | Outer diameter inner ring | 62.5 mm |
| L | Total length | 143 mm |
| J | Distance between the holes | 111 mm |
| N | Hole diameter | 16 mm |
| A | Overall width | 54.6 mm |
| A1 | Total housing width | 38 mm |
| A2 | Housing flange thickness | 15 mm |
| B | Width inner ring | 51.6 mm |
| kg | Mass | 2.8 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.974 kN |

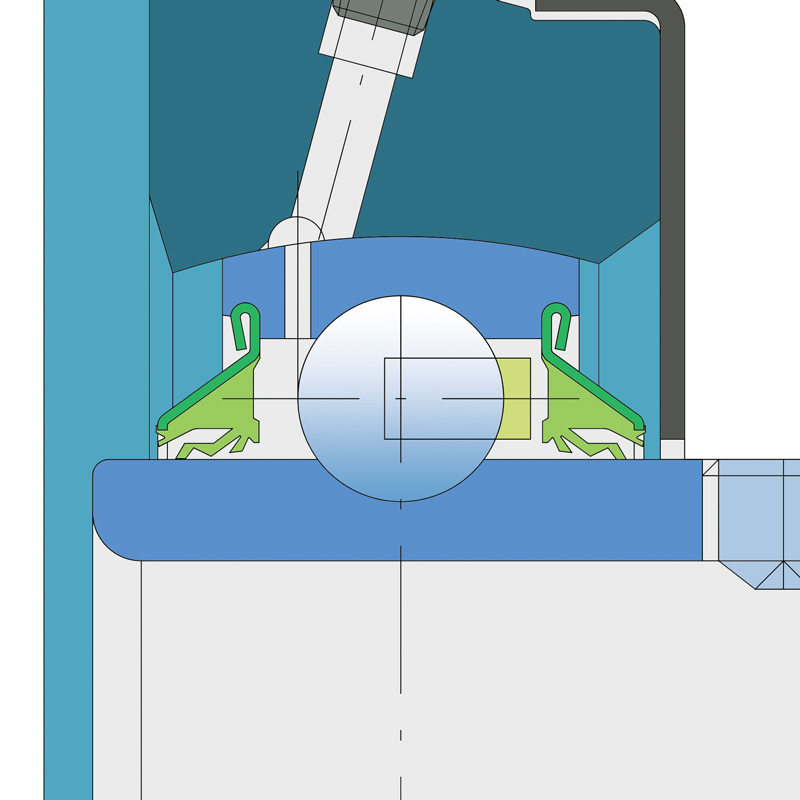

P SEAL / P SEAL + METAL COVER
5-lip seal on the base side and 5-lip seal with Metal cover on the front side which is exposed to contaminants.
The 5-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Cross references
| SKF | FYJ50TF |
| NSK | UCF210 |
| Завод им. Медведева ООО | LEFN 210 2PC |
| ООО ТЕХНОСЕРВИС | LEFN 210 2PC |
