LEFN 207 2TC

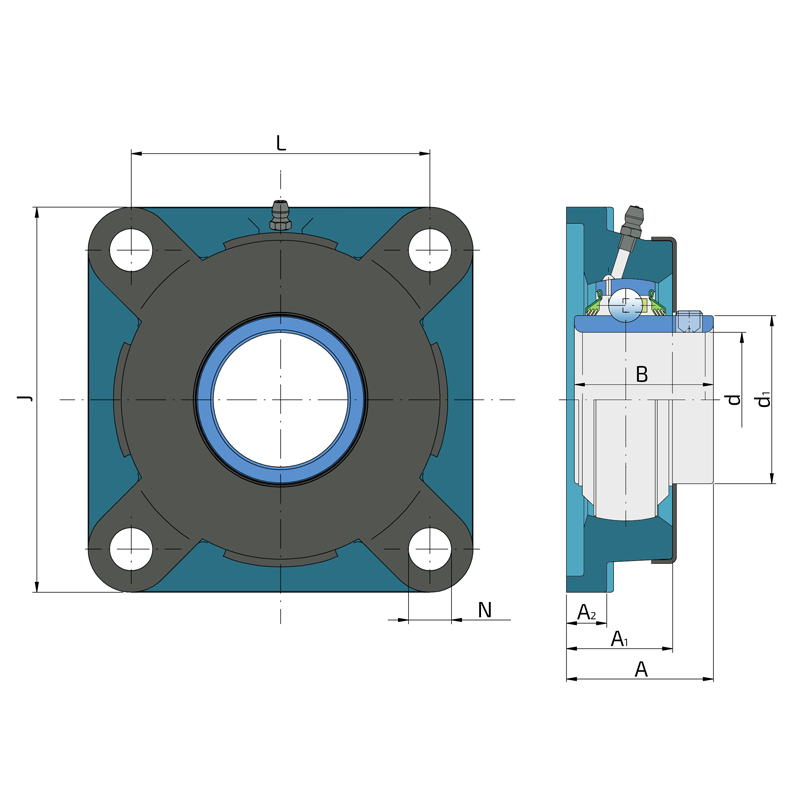

Technical specifications
| d | Bore diameter | 35 mm |
| L | Total length | 118 mm |
| J | Distance between the holes | 92 mm |
| N | Hole diameter | 14 mm |
| A | Overall width | 44.4 mm |
| A1 | Total housing width | 34 mm |
| A2 | Housing flange thickness | 13 mm |
| B | Width inner ring | 42.9 mm |
| kg | Mass | 1.466 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.643 kN |

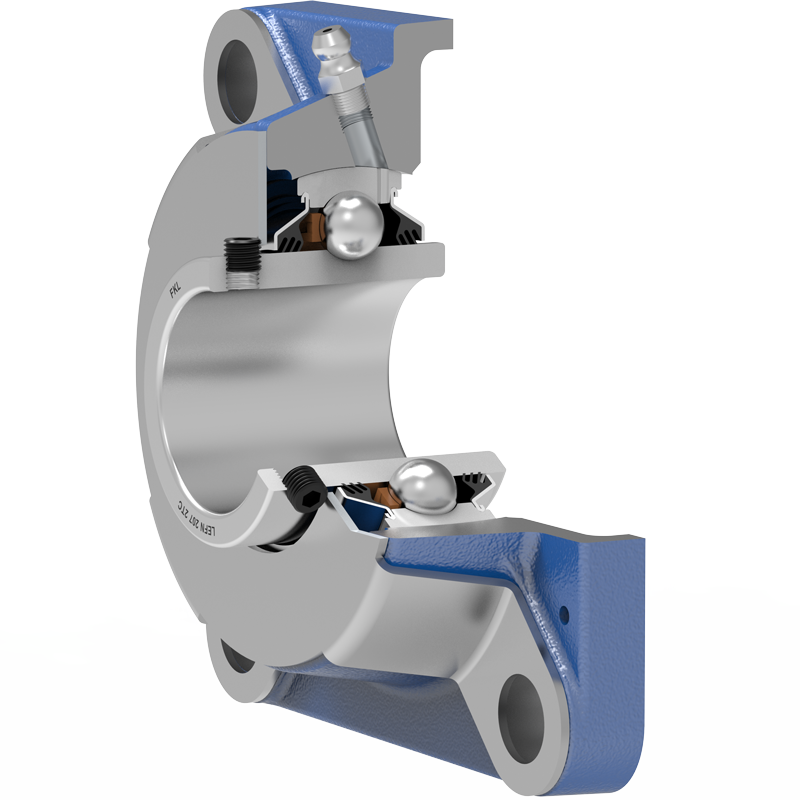

T SEAL / T SEAL+METAL COVER
3-lip seal on the base side and 3-lip seal with Metal cover on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Cross references
| SATEX | LEFN 207 2TC |
