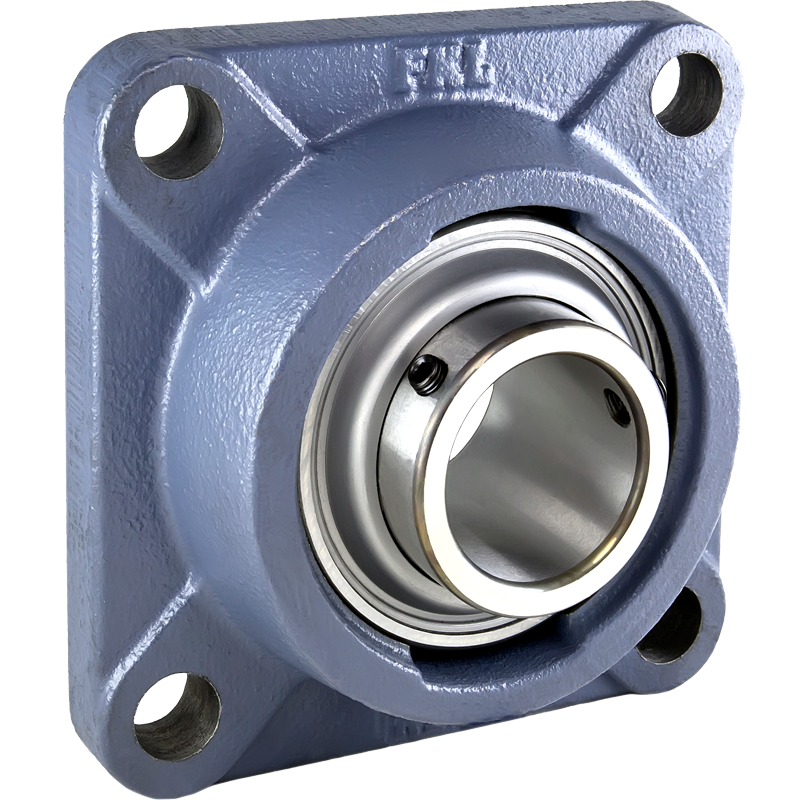

LEFN 207 2T.H

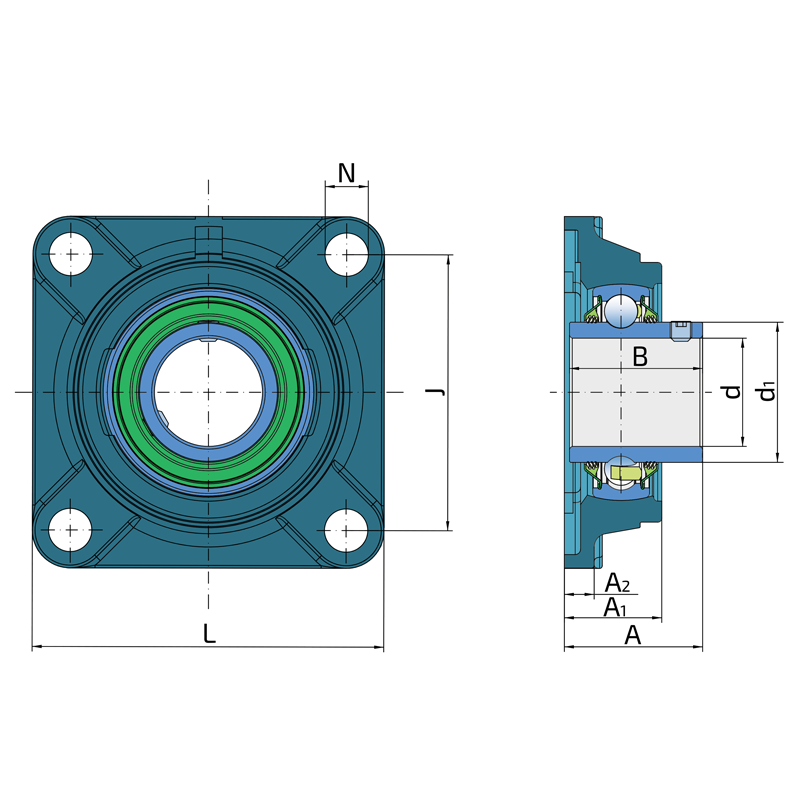

Technical specifications
| d |
Bore diameter |
35 mm |
| d1 |
Outer diameter inner ring |
46.1 mm |
| L |
Total length |
118 mm |
| J |
Distance between the holes |
92 mm |
| N |
Hole diameter |
14 mm |
| A |
Overall width |
44.4 mm |
| A1 |
Total housing width |
34 mm |
| A2 |
Housing flange thickness |
13 mm |
| B |
Width inner ring |
42.9 mm |
| kg |
Mass |
1.45 kg |
| Cdyn |
Dynamic load rating |
25.5 kN |
| Co |
Static load rating |
15.3 kN |
| Pu |
Fatigue load limit |
0.643 kN |
T SEAL / T SEAL (2T)

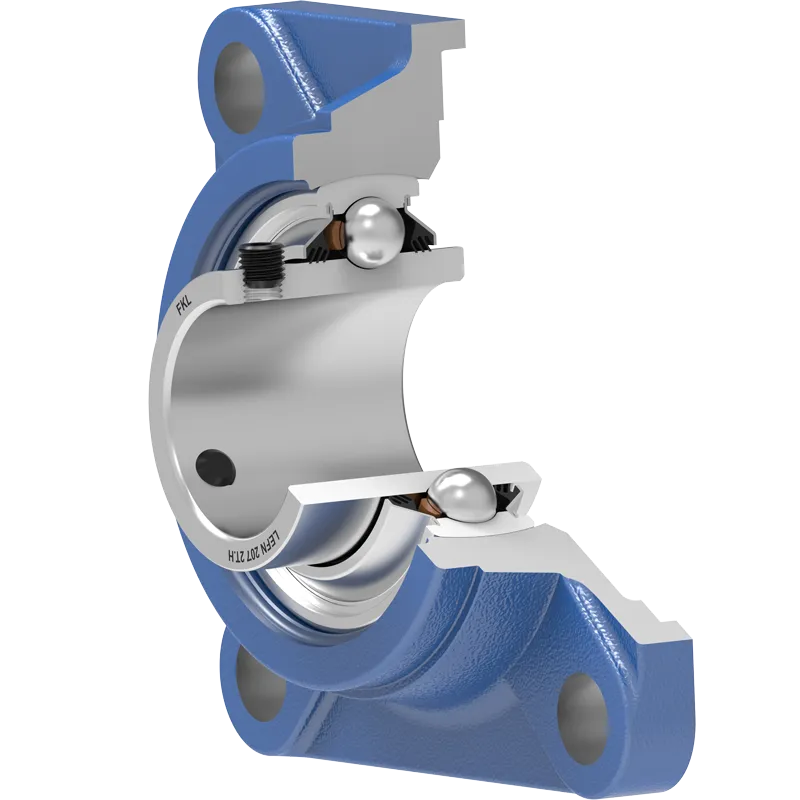

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| AGRO-LIFT |
LEFN 207 2T.H |
| AWEMAK |
LEFN 207 2T.H |
| AGRO-TOM |
LEFN 207 2T.H |
