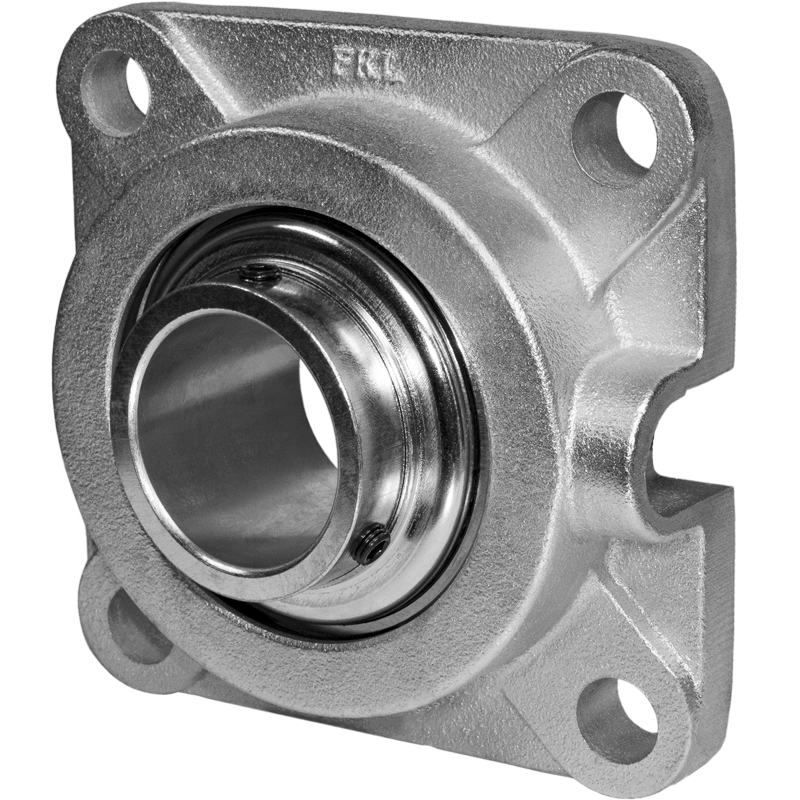

LEFG 214 TDT.H

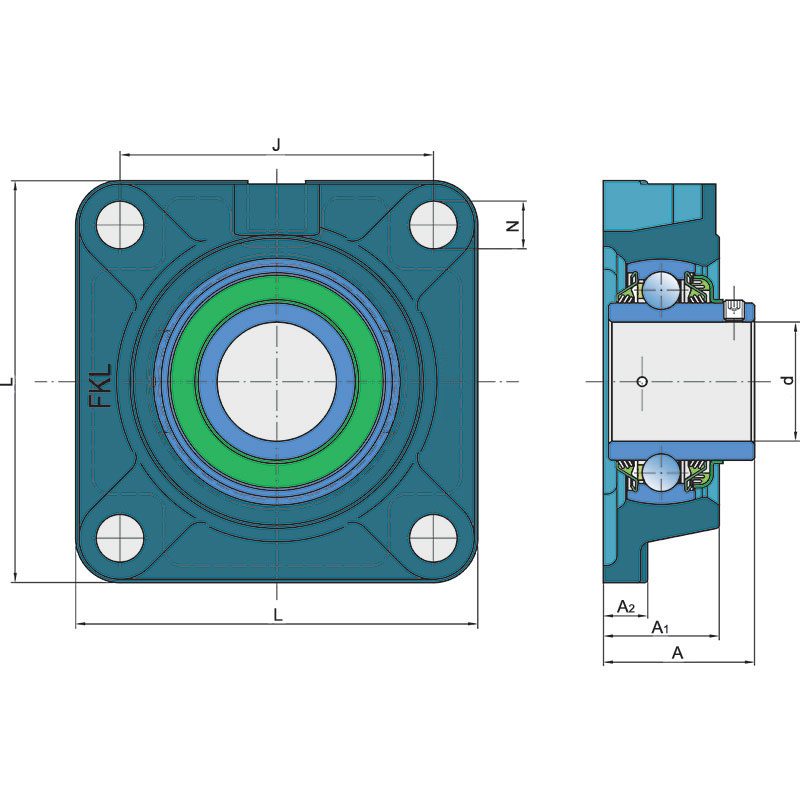

Technical specifications
| d |
Bore diameter |
70 mm |
| A1 |
Total housing width |
50.3 mm |
| A2 |
Housing flange thickness |
21.3 mm |
| J |
Distance between the holes |
152 mm |
| L |
Total length |
193 mm |
| N |
Hole diameter |
19 mm |
| A |
Overall width |
70.7 mm |
| kg |
Mass |
6.2 kg |
| Cdyn |
Dynamic load rating |
62.4 kN |
| Co |
Static load rating |
44 kN |
| Pu |
Fatigue load limit |
1.848 kN |

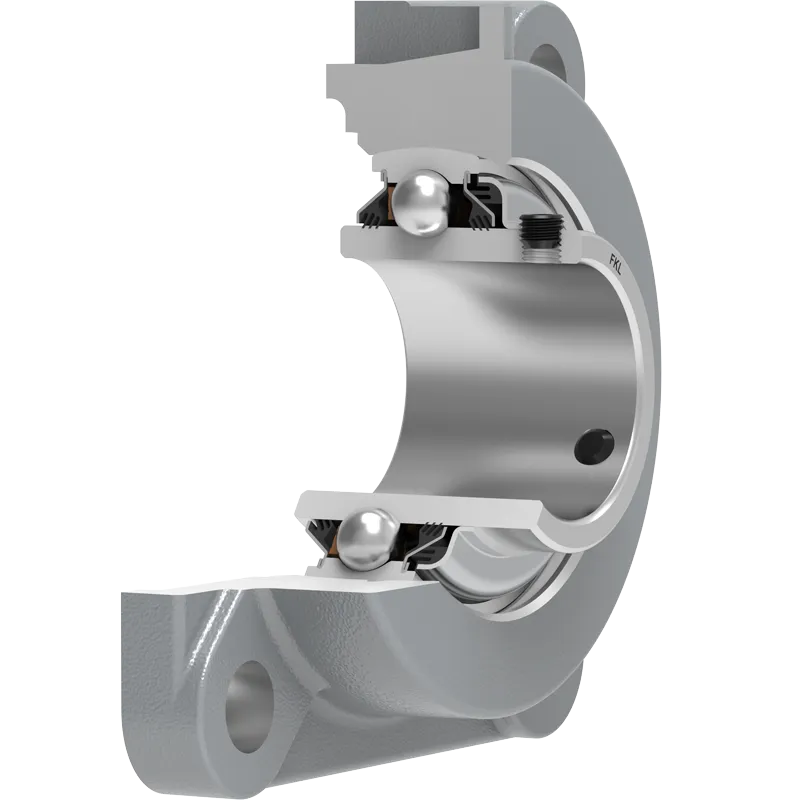

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| MANDAM |
LEFG 214 TDT.H |
| USARYA |
LEFG 214 TDT.H |
