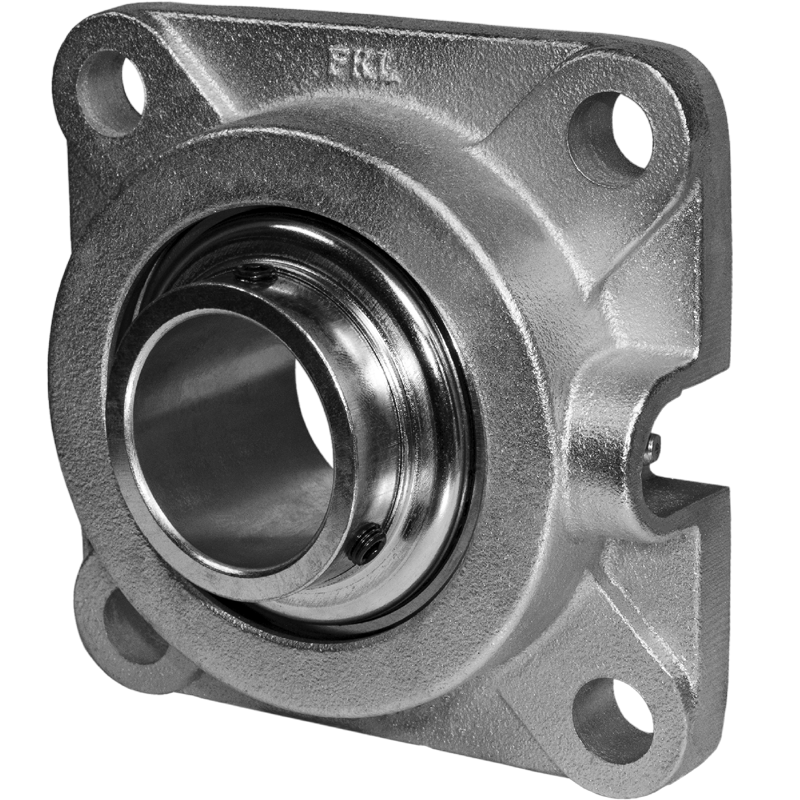

LEFG 214 TDT

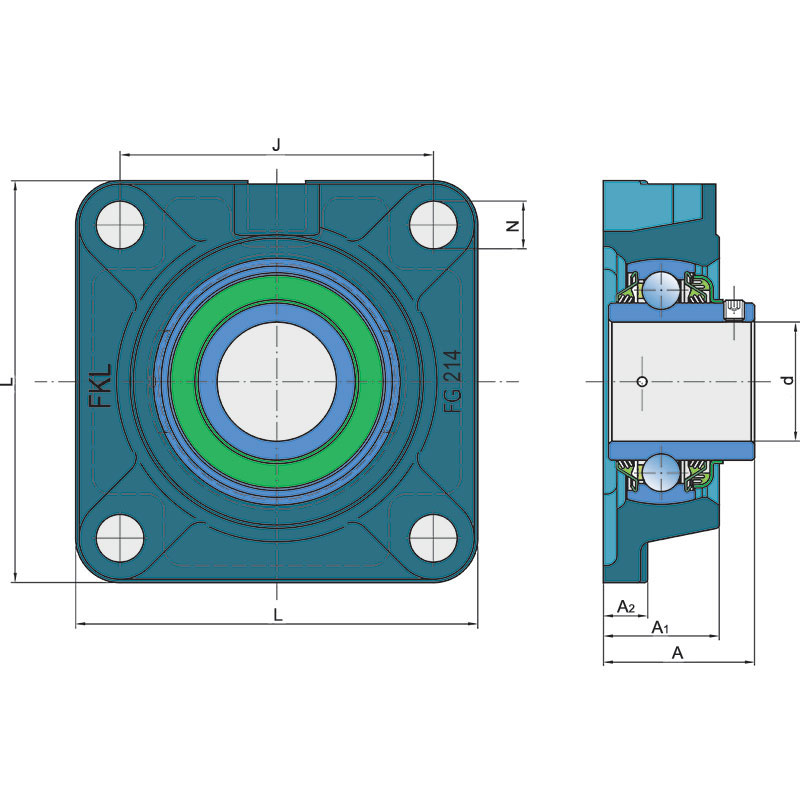

Technical specifications
| d | Bore diameter | 70 mm |
| A1 | Total housing width | 50.3 mm |
| A2 | Housing flange thickness | 21.3 mm |
| J | Distance between the holes | 152 mm |
| L | Total length | 193 mm |
| N | Hole diameter | 19 mm |
| A | Overall width | 70.7 mm |
| kg | Mass | 6.2 kg |
| Cdyn | Dynamic load rating | 62.4 kN |
| Co | Static load rating | 44 kN |
| Pu | Fatigue load limit | 1.848 kN |

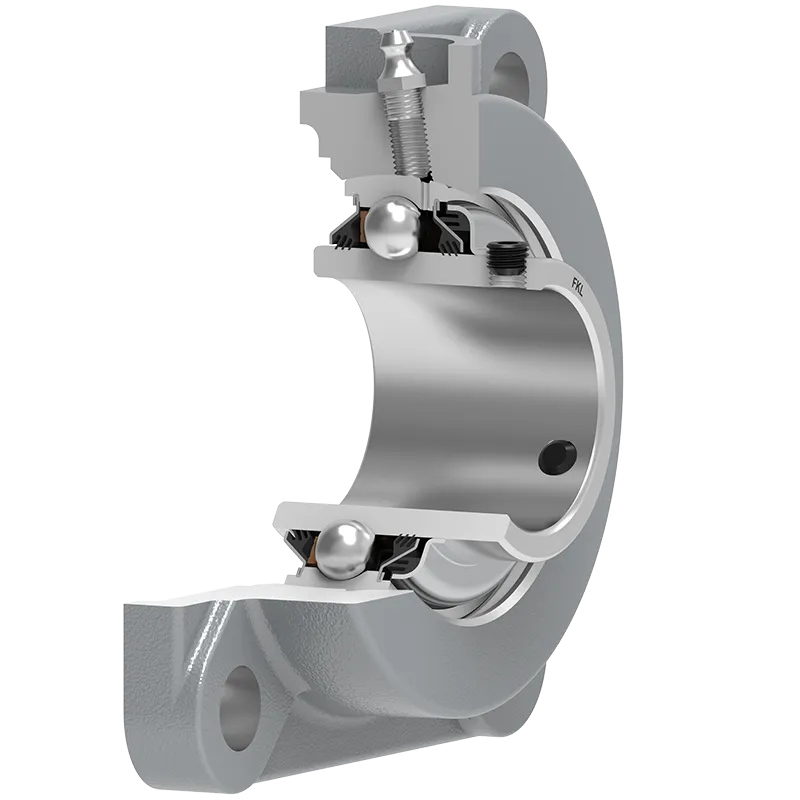

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| AGRICOLA YUDEGO | LEFG 214 TDT |
| ESTRUCTURAS CLEYSER | LEFG 214 TDT |
| FACOMA 2005 | LEFG 214 TDT |
| LA FORJADORA | LEFG 214 TDT |
| NONMETAL 2006 | LEFG 214 TDT |
| SANTIAGO | LEFG 214 TDT |
| SANCHEZ | LEFG 214 TDT |
| SUCESORES DE FLORENCIO | LEFG 214 |
| TASIAS | LEFG 214 TDT |
| TORIBIO SANCHEZ | LEFG 214 TDT |
| VOMER HISPANIA | LEFG 214 TDT |
| FOP | LEFG 214 TDT |
