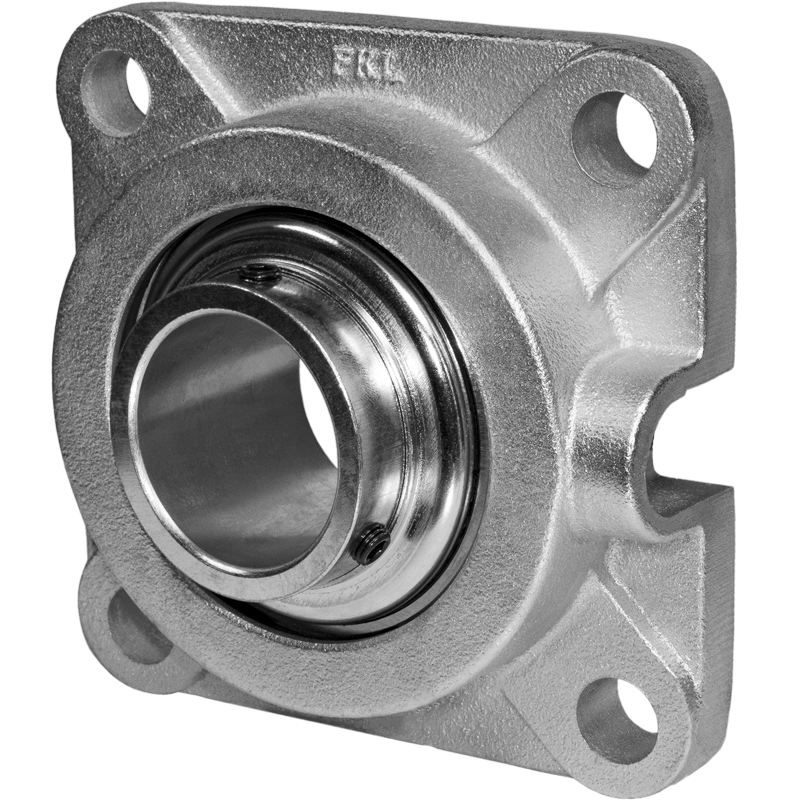

LEFG 212 TDT.H

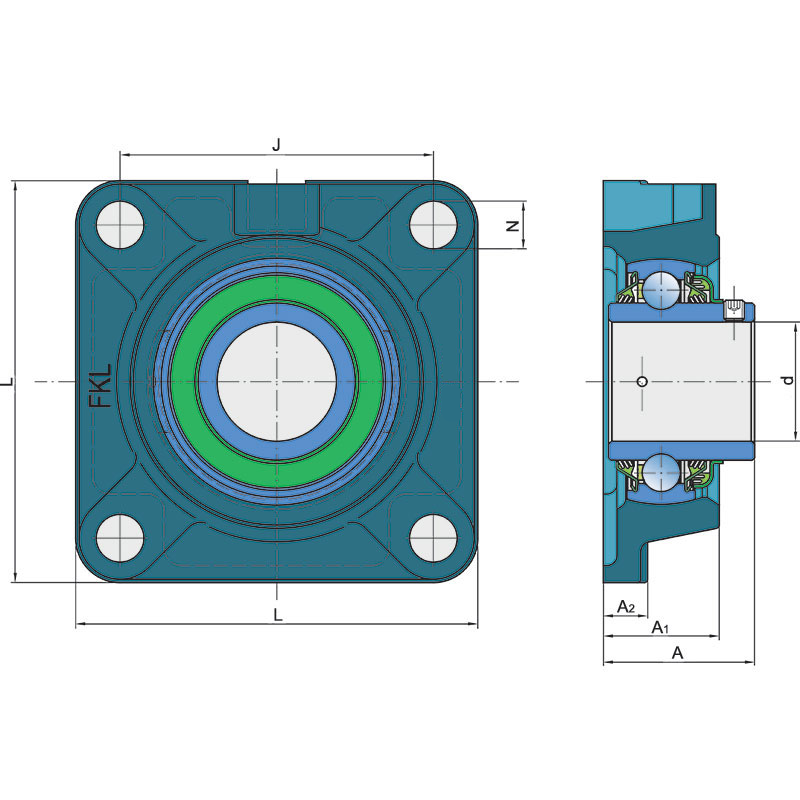

Technical specifications
| d |
Bore diameter |
60 mm |
| A1 |
Total housing width |
48 mm |
| A2 |
Housing flange thickness |
19 mm |
| J |
Distance between the holes |
143 mm |
| L |
Total length |
175 mm |
| N |
Hole diameter |
19 mm |
| A |
Overall width |
68.5 mm |
| kg |
Mass |
4.64 kg |
| Cdyn |
Dynamic load rating |
52 kN |
| Co |
Static load rating |
36 kN |
| Pu |
Fatigue load limit |
1.512 kN |

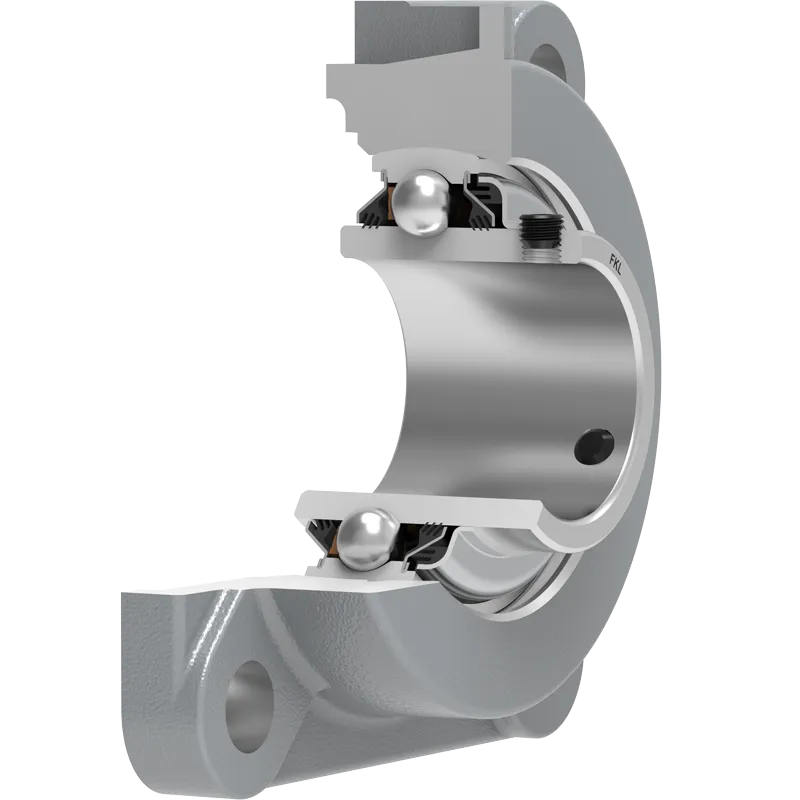

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| MANDAM |
LEFG 212 TDT.H |
| USARYA |
LEFG 212 TDT.H |
