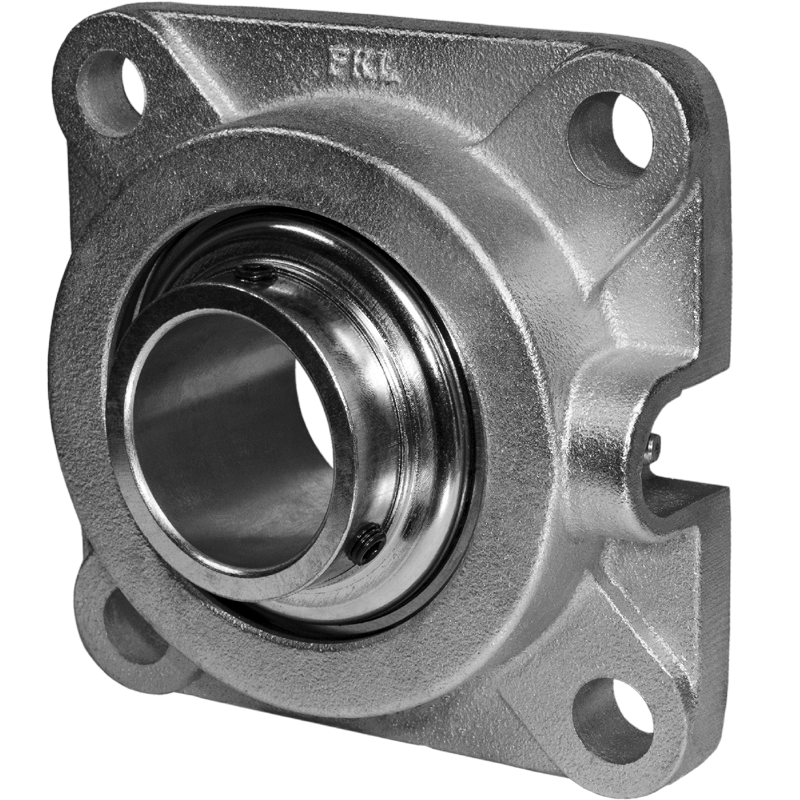

LEFG 212 TDT

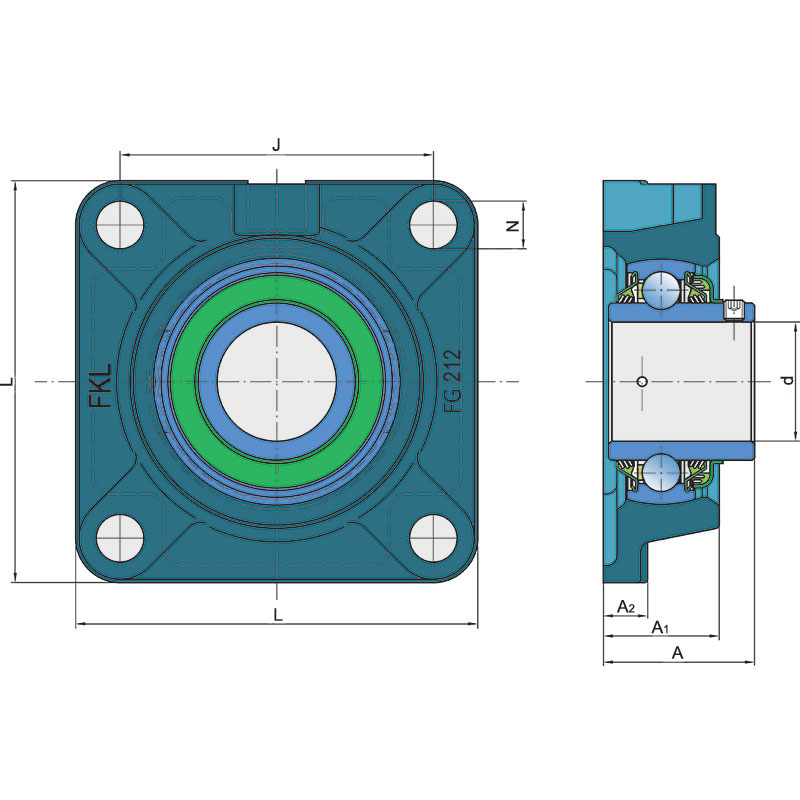

Technical specifications
| d | Bore diameter | 60 mm |
| A1 | Total housing width | 48 mm |
| A2 | Housing flange thickness | 19 mm |
| J | Distance between the holes | 143 mm |
| L | Total length | 175 mm |
| N | Hole diameter | 19 mm |
| A | Overall width | 68.5 mm |
| kg | Mass | 4.64 kg |
| Cdyn | Dynamic load rating | 52 kN |
| Co | Static load rating | 36 kN |
| Pu | Fatigue load limit | 1.512 kN |

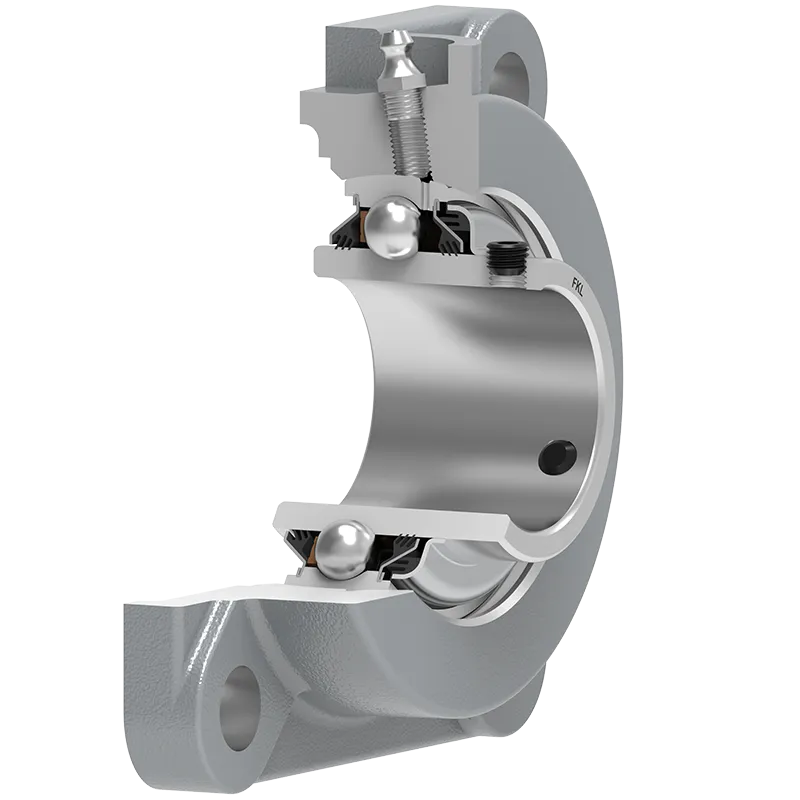

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| SKF | FYJ60TF |
| NSK | UCF212 |
| UNIA | 1013873 |
| UNIA | AU/02657 |
| EIDAM | LEFG 212 TDT |
| EXPOM | LEFG 212 TDT |
| AGRICOLA YUDEGO | LEFG 212 TDT |
| ESTRUCTURAS CLEYSER | LEFG 212 TDT |
| GASCON | LEFG 212 TDT.H |
| HNOS. VITORES SIERRA | LEFG 212 TDT |
| ESCUDERO | LEFG 212 TDT |
| NONMETAL 2006 | LEFG 212 TDT |
| SANTIAGO | LEFG 212 TDT |
| SANCHEZ | LEFG 212 TDT |
| TALLER AGRICOLA GUERRA | LEFG 212 TDT |
| TORIBIO SANCHEZ | LEFG 212 TDT |
| VOMER HISPANIA | LEFG 212 TDT |
| DA LANDTECHNIK | LEFG 212 TDT |
| BEDNAR | KM040342 |
| SNR | D-UCF212A10AGR |
| ДИАС ООО | LEFG 212 TDT |
| АЗСМ АО (Машзавод) | LEFG 212 TDT |
| БДМ-АГРОЦЕНТР ООО | LEFG 212 TDT |
| ОАО ЗАВОД МИНСКАГРОМАШ | LEFG 212 TDT |
| Экспериментальный завод РУП | LEFG 212 TDT |
Installations
| UNIA | KOMBI |
| UNIA | MAX |
| UNIA | ATLAS |
| UNIA | HERMES |
| UNIA | CERES |
