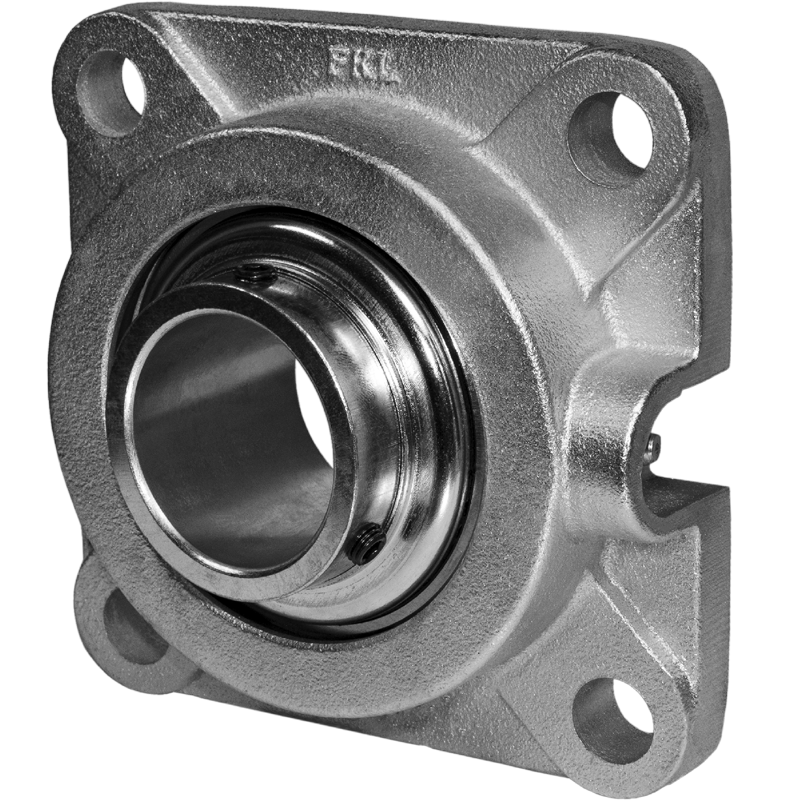

LEFG 211 TDT

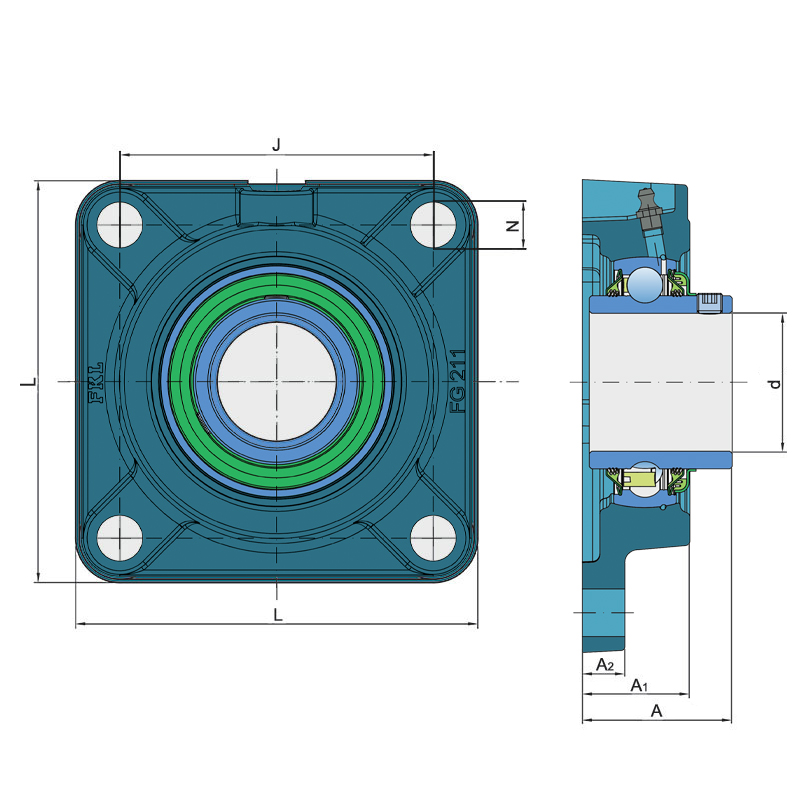

Technical specifications
| d | Bore diameter | 55 mm |
| A1 | Total housing width | 43 mm |
| A2 | Housing flange thickness | 17 mm |
| J | Distance between the holes | 130 mm |
| L | Total length | 162 mm |
| N | Hole diameter | 19 mm |
| A | Overall width | 59.8 mm |
| kg | Mass | 3.55 kg |
| Cdyn | Dynamic load rating | 43.6 kN |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.218 kN |

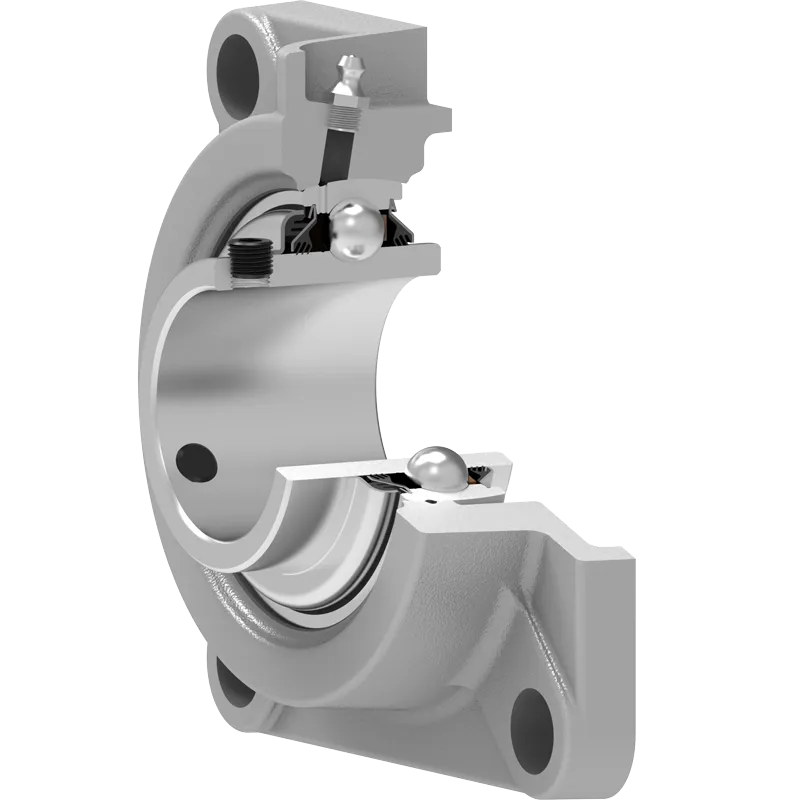

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| SNR | D-UCF211A10B176 |
| KUHN | H2228591 |
| ООО Сельмаш (Сызрань) | LEFG 211 TDT |
Installations
| KUHN | Discolander XM 32 |
| KUHN | Discolander XM 36 |
| KUHN | Discolander XM 40 |
| KUHN | Discolander XM 44 |
| KUHN | Discolander XM 48 |
