LEFG 210 TDT*U

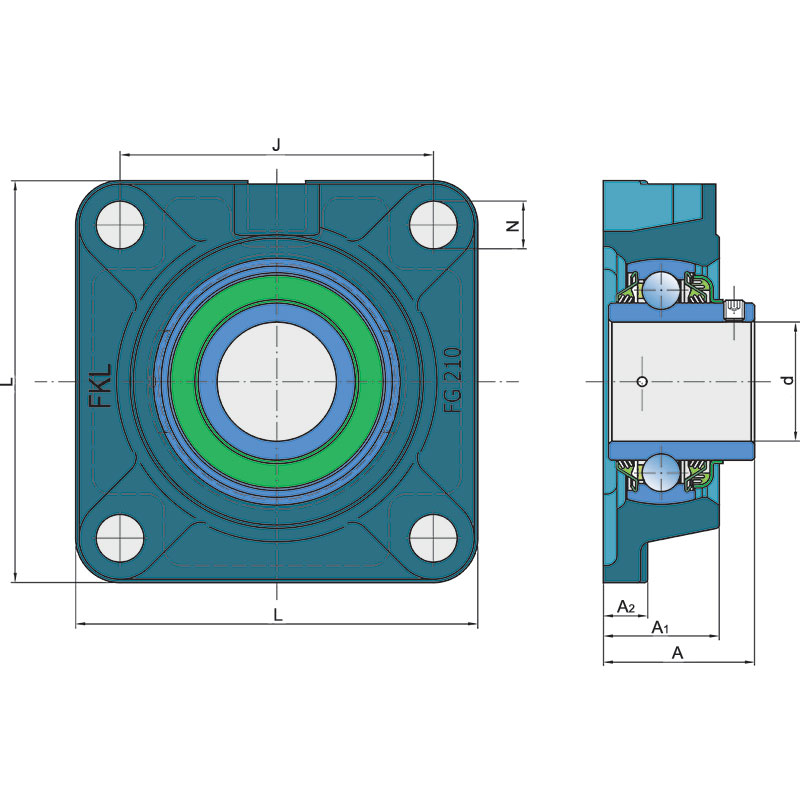

Technical specifications
| d | Bore diameter | 50 mm |
| A1 | Total housing width | 40 mm |
| A2 | Housing flange thickness | 16 mm |
| J | Distance between the holes | 111 mm |
| L | Total length | 143 mm |
| N | Hole diameter | 16.5 mm |
| A | Overall width | 54.6 mm |
| kg | Mass | 2.78 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.974 kN |

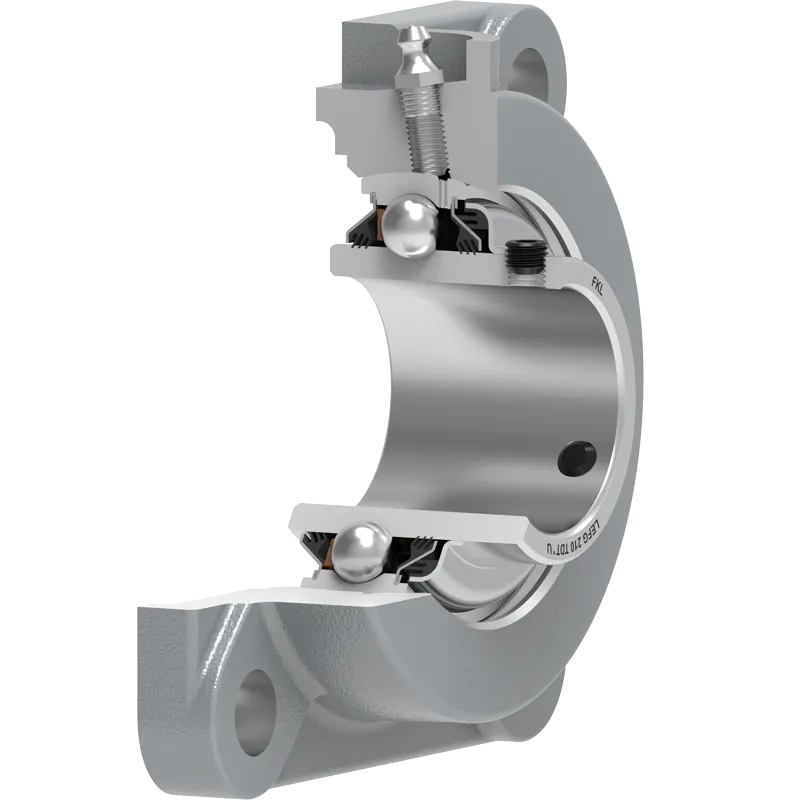

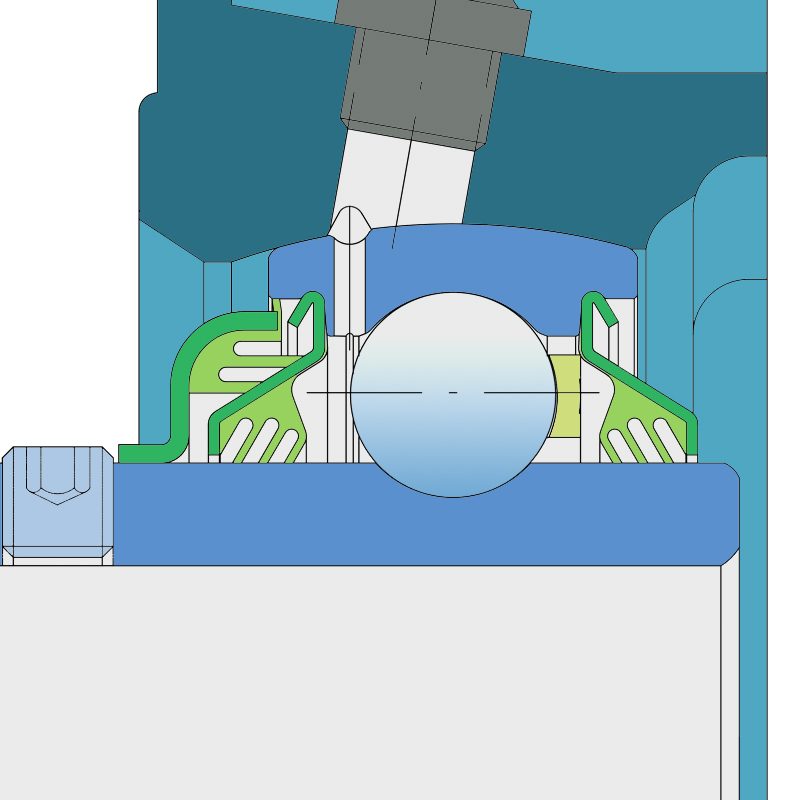

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| UNIA | 1013874 |
| UNIA | AU/0799 |
Installations
| UNIA | KOMBI |
| UNIA | MAX |
| UNIA | ATLAS |
| UNIA | HERMES |
| UNIA | CERES |
