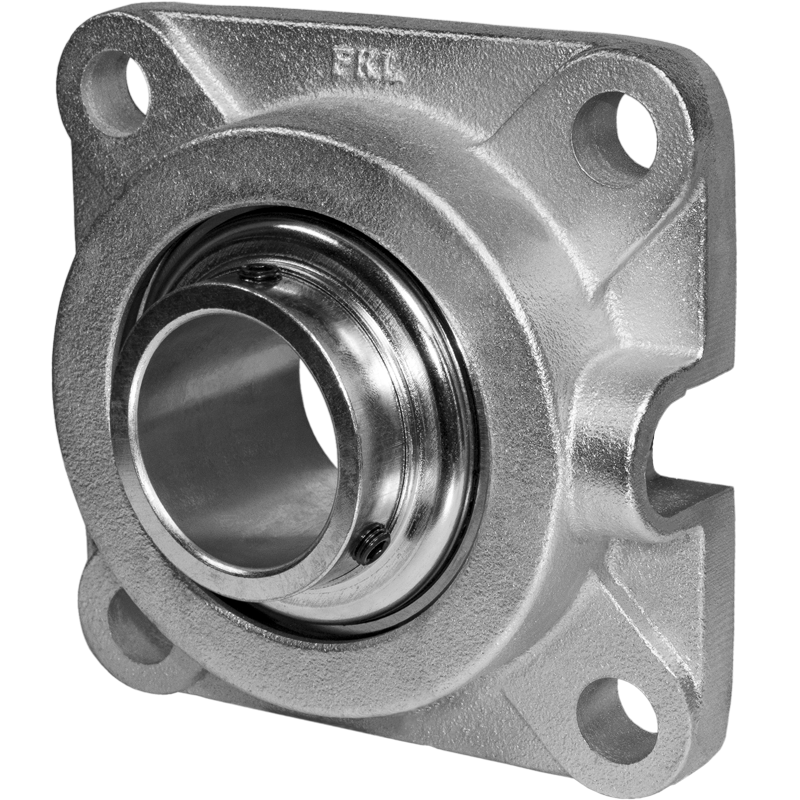

LEFG 210 TDT.H

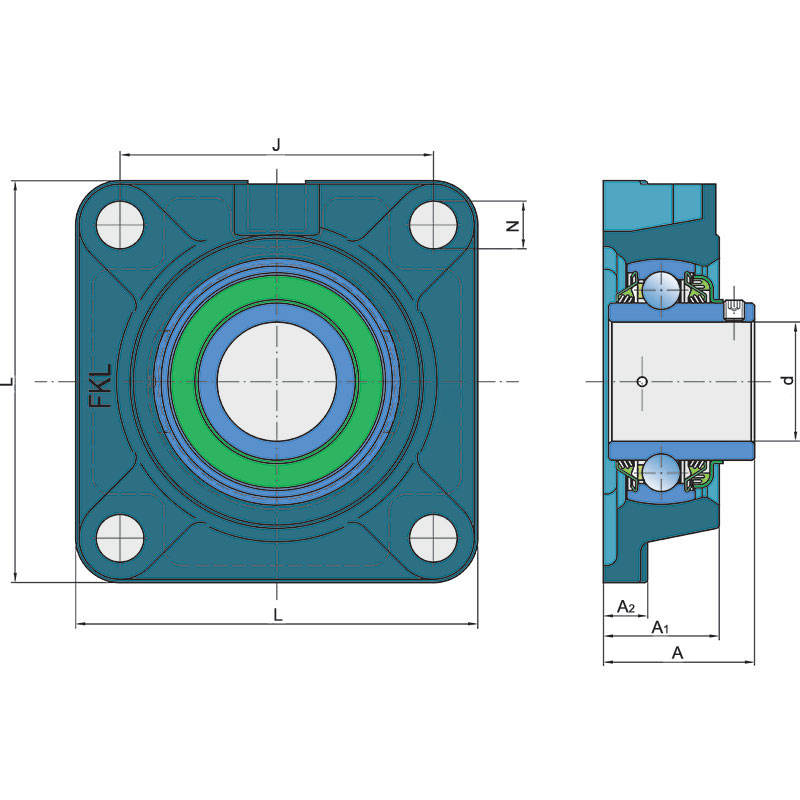

Technical specifications
| d |
Bore diameter |
50 mm |
| A1 |
Total housing width |
40 mm |
| A2 |
Housing flange thickness |
16 mm |
| J |
Distance between the holes |
111 mm |
| L |
Total length |
143 mm |
| N |
Hole diameter |
16 mm |
| A |
Overall width |
54.6 mm |
| kg |
Mass |
2.78 kg |
| Cdyn |
Dynamic load rating |
35.1 kN |
| Co |
Static load rating |
23.2 kN |
| Pu |
Fatigue load limit |
0.974 kN |

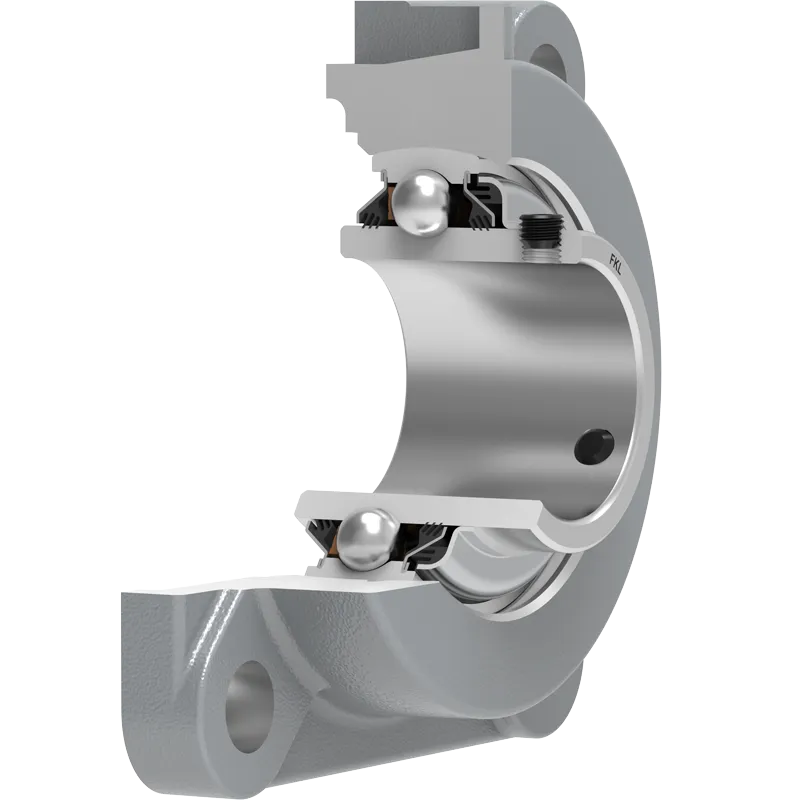

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| ROLMAKO |
LEFG 210 TDT.H |
| BEDNAR |
KM040258 |
| FARMET |
m21967 |
| КРОНОС ООО |
LEFG 210 TDT.H |
Installations
| FARMET |
DIGGER |
| FARMET |
STRIP-TILL |
