LEFG 209 TDT

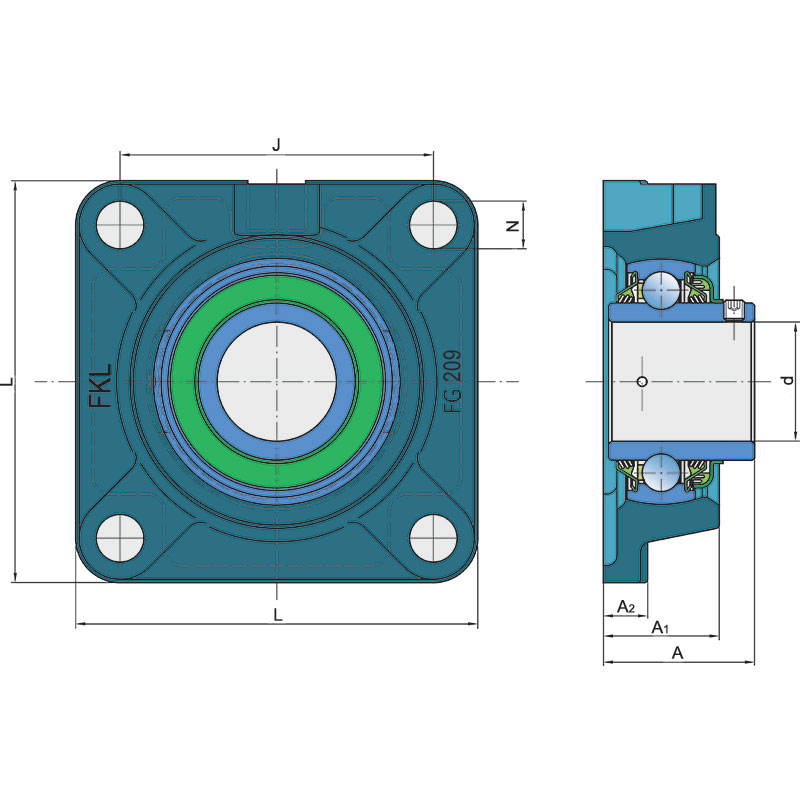

Technical specifications
| d | Bore diameter | 45 mm |
| A1 | Total housing width | 38 mm |
| A2 | Housing flange thickness | 16 mm |
| J | Distance between the holes | 105 mm |
| L | Total length | 137 mm |
| N | Hole diameter | 16 mm |
| A | Overall width | 52.2 mm |
| kg | Mass | 2.41 kg |
| Cdyn | Dynamic load rating | 33.2 kN |
| Co | Static load rating | 21.9 kN |
| Pu | Fatigue load limit | 0.92 kN |

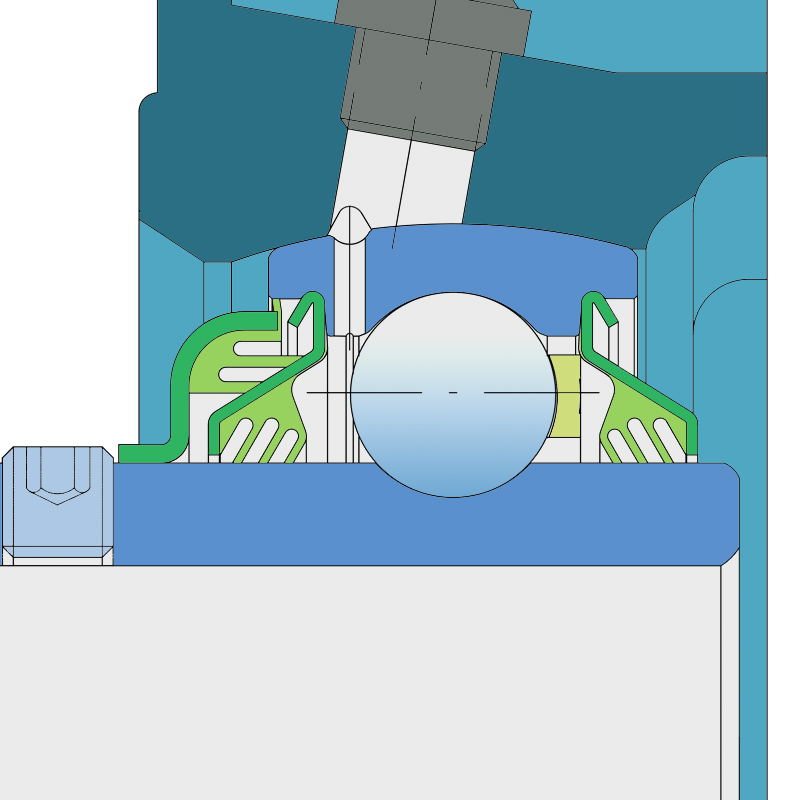

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| SKF | FYJ45TF |
| NSK | UCF209 |
| KUHNE | LEFG 209 TDT |
| UBALDI | LEFG 209 TDT |
| AGRICOLA SOVI | LEFG 209 TDT |
| CORBAR MAQUINARIA AGRICOLA | LEFG 209 TDT |
| ESTRUCTURAS CLEYSER | LEFG 209 TDT |
| SANCHEZ | LEFG 209 TDT |
| MADIM | LEFG 209 TDT |
| TORIBIO SANCHEZ | LEFG 209 TDT |
| AGRO-LAND | LEFG 209 TDT |
| StepAgro | LEFG 209 TDT |
| Hartehprom ХАРТЕХПРОМ-97 - Sloboda | LEFG 209 TDT |
| СООО Элезер холдинг Амкодор | LEFG 209 TDT |
| ОАО Минский Агросервис | LEFG 209 TDT |
| ОАО Минойтовский ремонтный завод | LEFG 209 TDT |
| BATYRA | LEFG 209 TDT |
Installations
| МИНРЗИТЫ | КУМ-10 (12, 14) |
| МИНСКИЙ АГРОСЕРВИС | КШМ-10 |
| АМКОДОР | КГП-6,2 КШП БДК |
