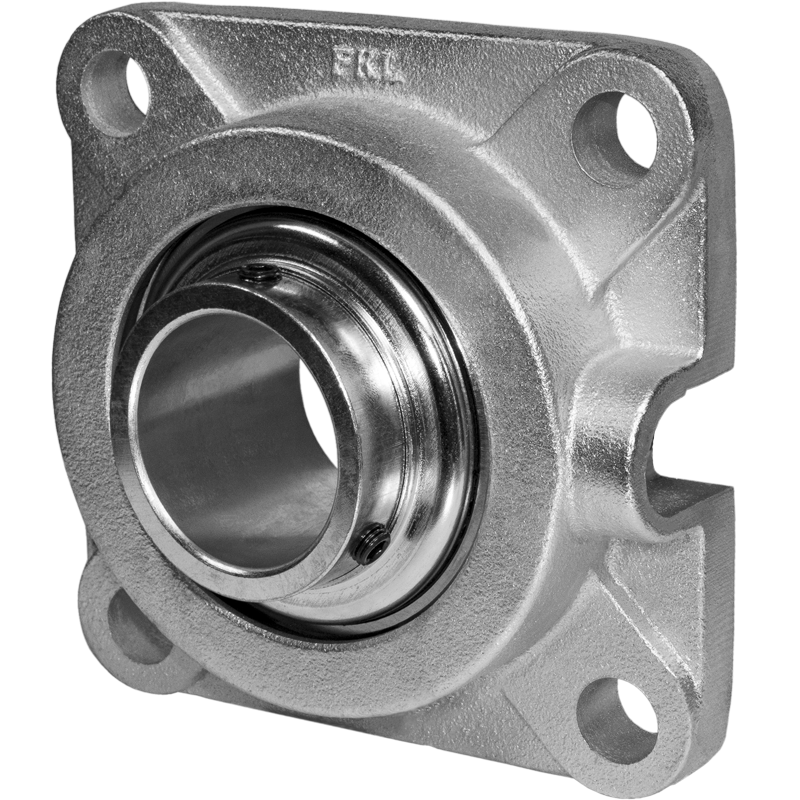

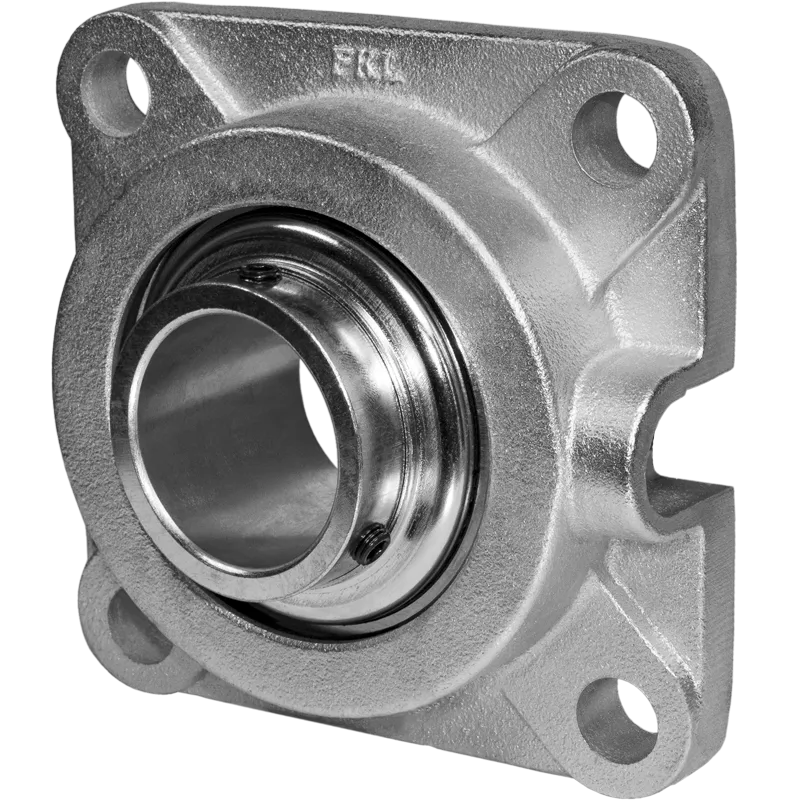

LEFG 208 TDT.H

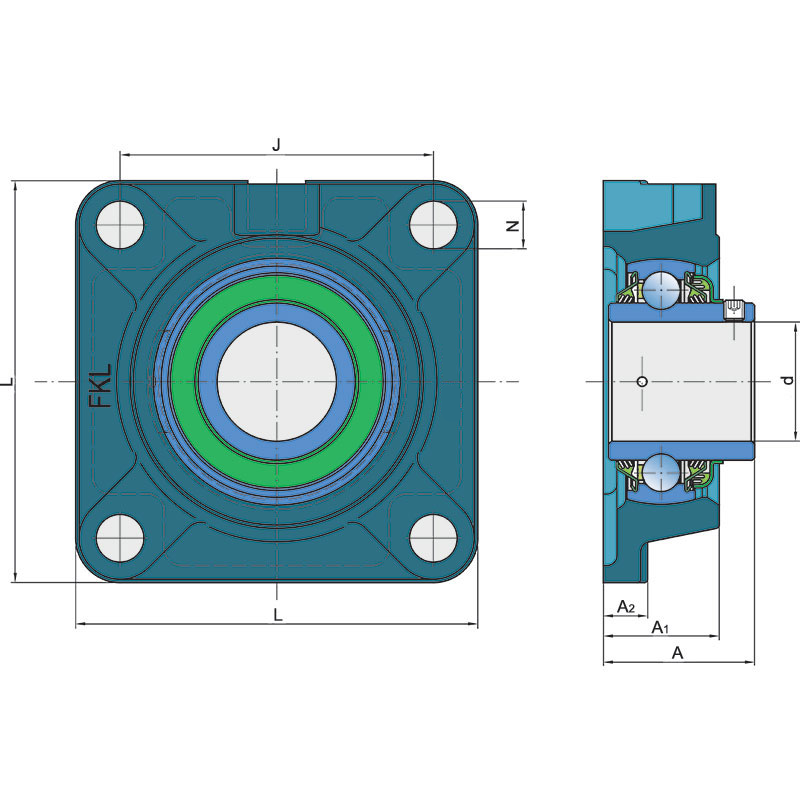

Technical specifications
| d |
Bore diameter |
40 mm |
| A1 |
Total housing width |
36 mm |
| A2 |
Housing flange thickness |
14 mm |
| J |
Distance between the holes |
102 mm |
| L |
Total length |
130 mm |
| N |
Hole diameter |
16 mm |
| A |
Overall width |
51.2 mm |
| kg |
Mass |
1.8 kg |
| Cdyn |
Dynamic load rating |
30.7 kN |
| Co |
Static load rating |
19 kN |
| Pu |
Fatigue load limit |
0.798 kN |

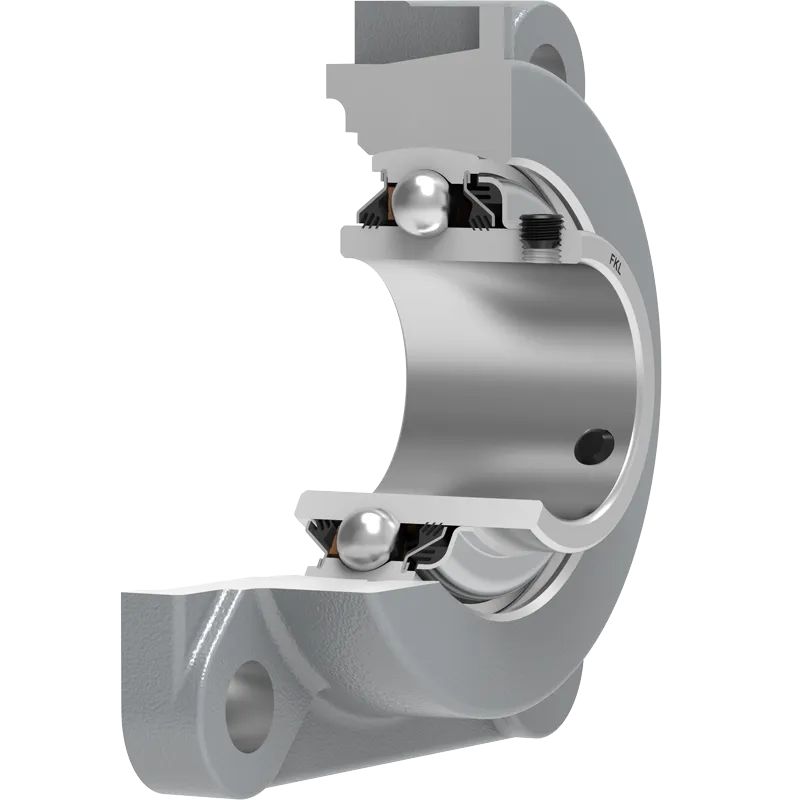

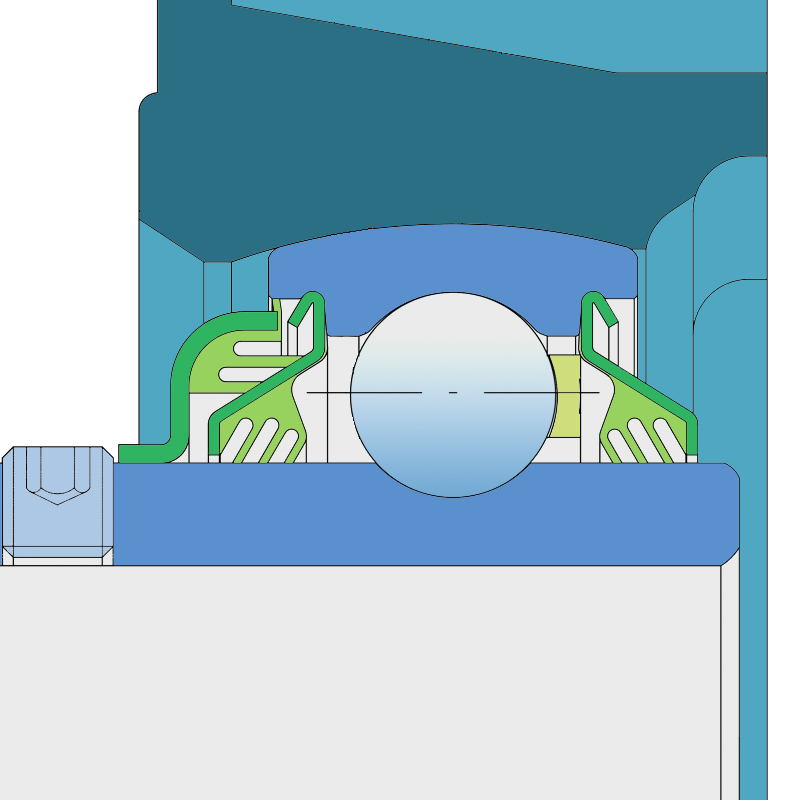

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| FARMET |
m21654 |
| BEDNAR |
KM040273 |
Installations
| FARMET |
KOMPAKTOMAT |
| FARMET |
GX |
| FARMET |
EXCELENT |
| FARMET |
DUOLENT |
| FARMET |
TRIOLENT |
| FARMET |
FANTOM |
| FARMET |
DISKOMAT |
| FARMET |
SOFTER |
