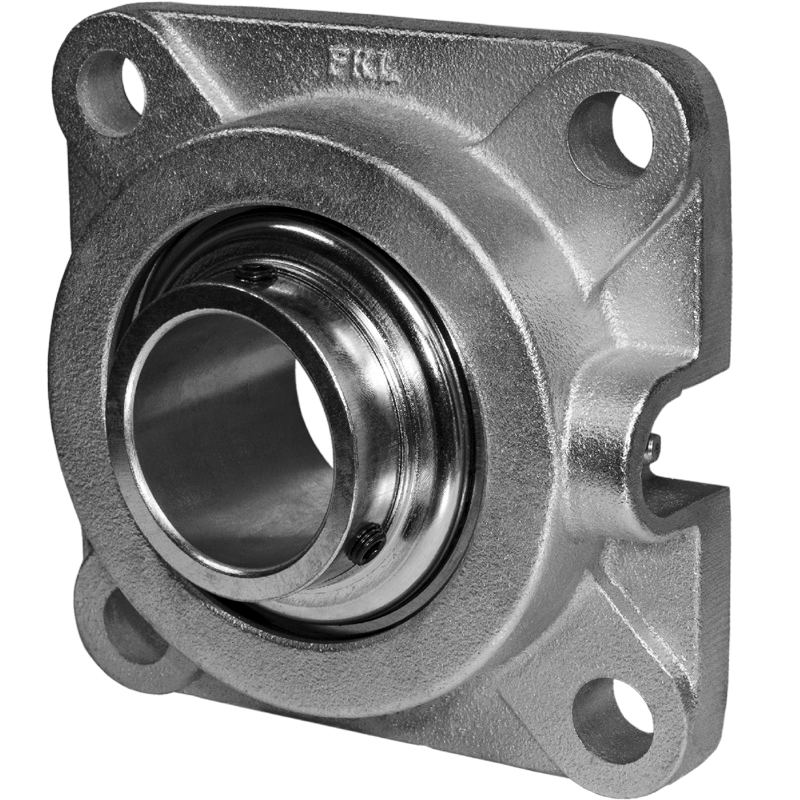

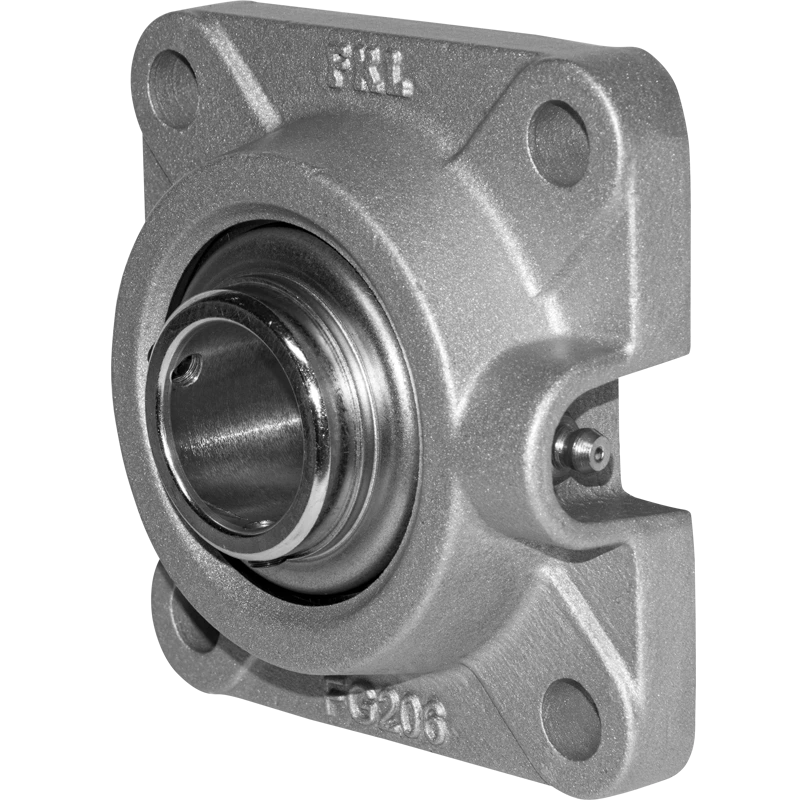

LEFG 206 TDT

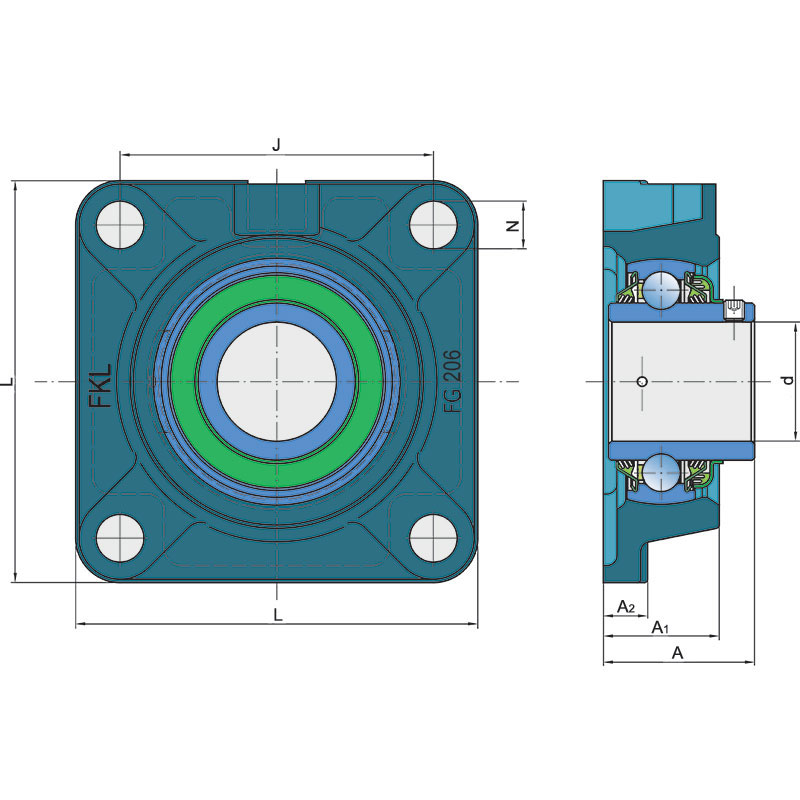

Technical specifications
| d | Bore diameter | 30 mm |
| A1 | Total housing width | 31 mm |
| A2 | Housing flange thickness | 13 mm |
| J | Distance between the holes | 83 mm |
| L | Total length | 108 mm |
| N | Hole diameter | 16 mm |
| A | Overall width | 40.2 mm |
| kg | Mass | 1.2 kg |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 11.3 kN |
| Pu | Fatigue load limit | 0.475 kN |

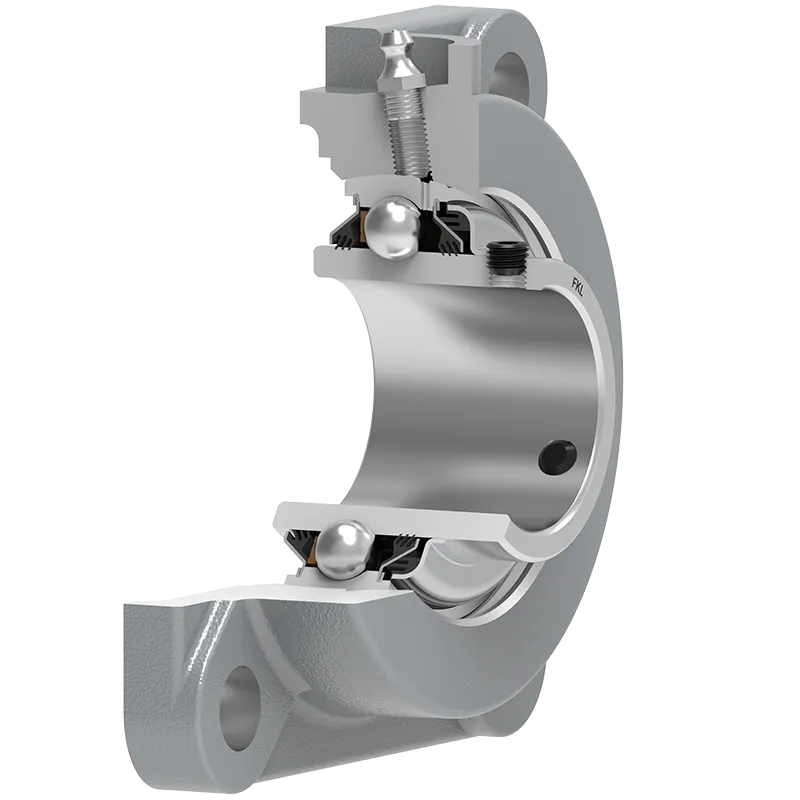

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| NSK | UCF206 |
| SKF | FYJ30TF |
| TECHNIKA-SERVICE | LEFG 206 TDT |
| DOMETAL | LEFG 206 TDT |
| POTILA | LEFG 206 TDT |
| A.SPEDO&FIGLI | LEFG 206 TDT |
| SOLDO | LEFG 206 TDT |
| SANTIAGO | LEFG 206 TDT |
| Агро ООО | LEFG 206 TDT |
| БДМ - АГРО ООО | LEFG 206 TDT |
| ДИАС ООО | LEFG 206 TDT |
| КУБАНЬЖЕЛДОРМАШ АО | LEFG 206 TDT |
| ТСА ООО | LEFG 206 TDT |
| HUDJIK | LEFG 206 TDT |
| КУБАНЬМАШ АО | LEFG 206 TDT |
| ОАО Бобруйсксельмаш | LEFG 206 TDT |
| ООО Запагромаш | LEFG 206 TDT |
Installations
| БДМ-АГРО | КС |
| БДМ-АГРО | КСМ |
| DIAS | БПК-Л |
| КУБАНЬЖЕЛДОРМАШ | Твист |
| КУБАНЬМАШ | КС |
| ТЕХНИКА СЕРВИС АГРО | РК |
| БОБРУЙСКСЕЛЬМАШ | Березена 9600 |
| ЗАПАГРОМАШ | ИСРК |
