LEFG 206-104 TDT

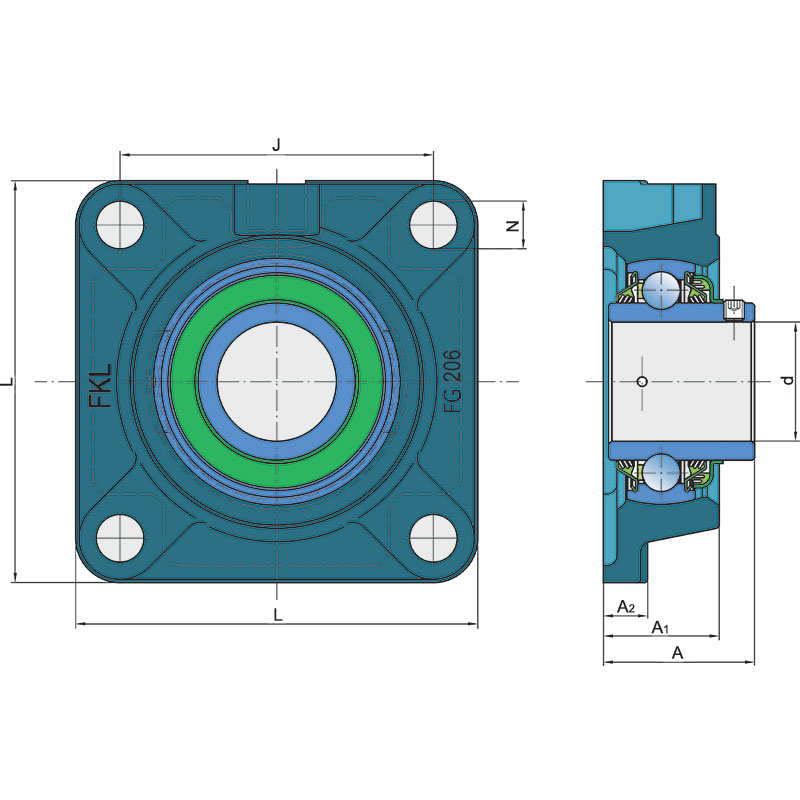

Technical specifications
| d | Bore diameter | 31.75 mm |
| d | Bore diameter | 1 1/4 inch |
| A1 | Total housing width | 31 mm |
| A2 | Housing flange thickness | 13 mm |
| J | Distance between the holes | 83 mm |
| L | Total length | 108 mm |
| N | Hole diameter | 16 mm |
| A | Overall width | 40.2 mm |
| kg | Mass | 1.1 kg |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 11.3 kN |
| Pu | Fatigue load limit | 0.475 kN |

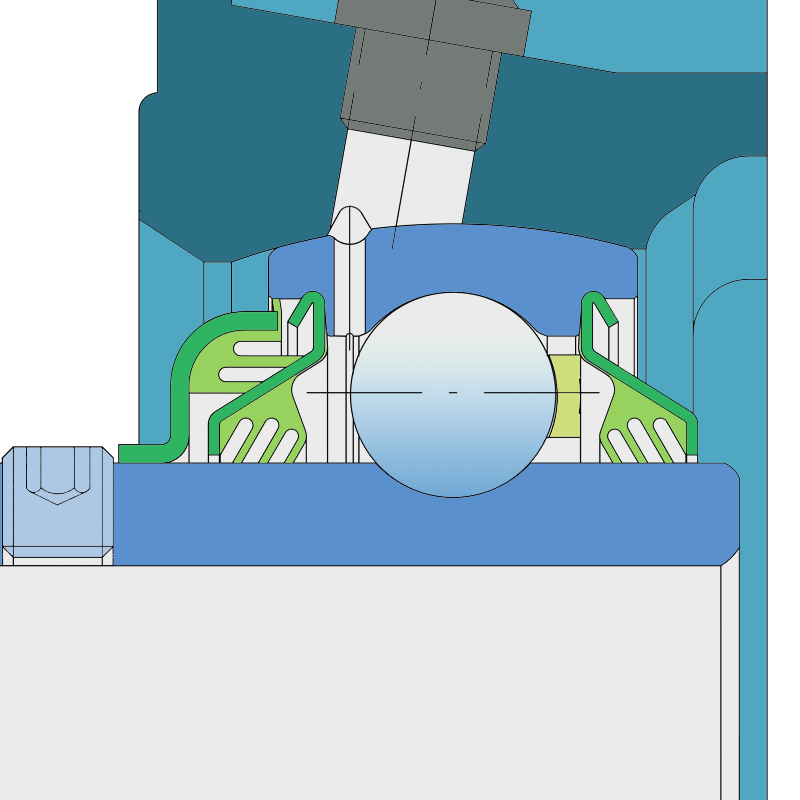

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
