LEFC 210 2PB

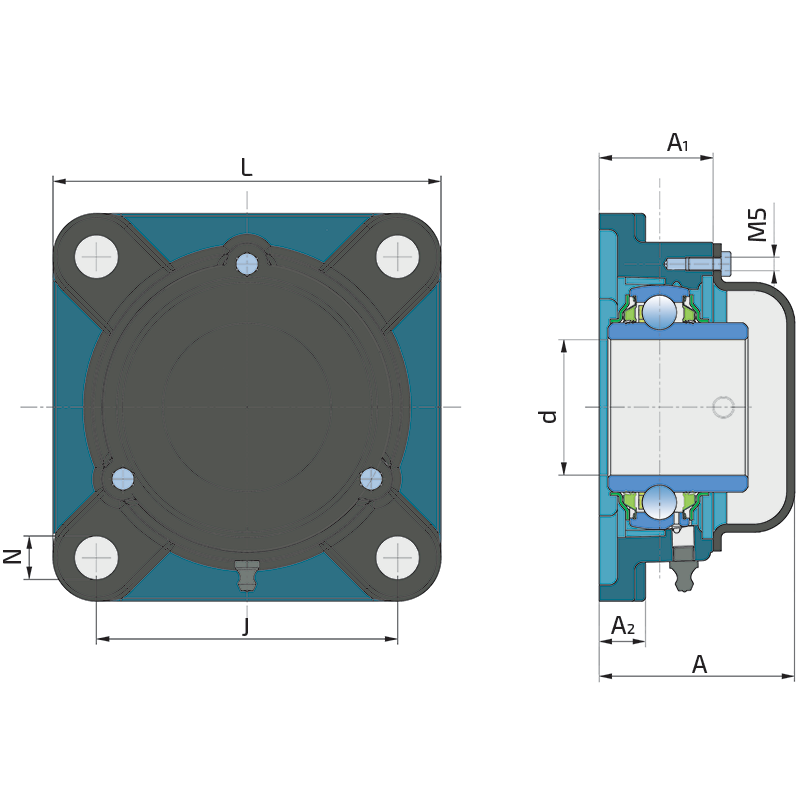

Technical specifications
| Co |
Static load rating |
23.2 kN |
| A2 |
Housing flange thickness |
17 mm |
| A1 |
Total housing width |
42 mm |
| A |
Overall width |
72 mm |
| N |
Hole diameter |
16 mm |
| J |
Distance between the holes |
35.1 mm |
| kg |
Mass |
2.9 kg |
| L |
Total length |
143 mm |
| d |
Bore diameter |
50 mm |
| J |
Pitch circle diameter |
111 mm |
| Cdyn |
Dynamic load rating |
35.1 kN |

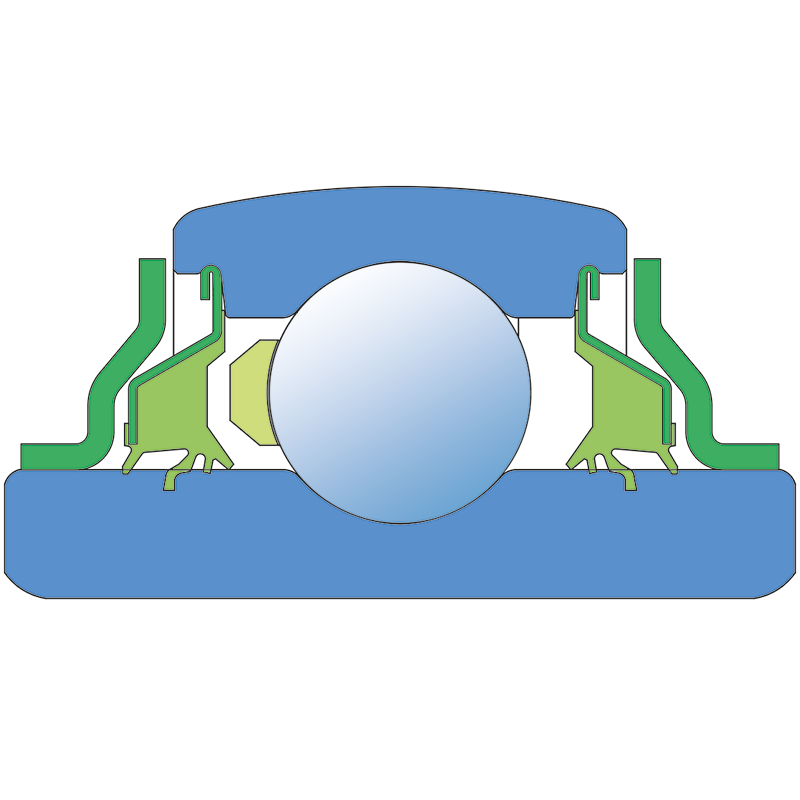

PB SEAL / PB SEAL (2PB)
A 5-lip seal with Metal flinger ring on the both side of the
bearing, provides equal protection against contamination.
5-lip seal provides a high level of the bearing protection from
impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects
the seal from mechanical damage.
