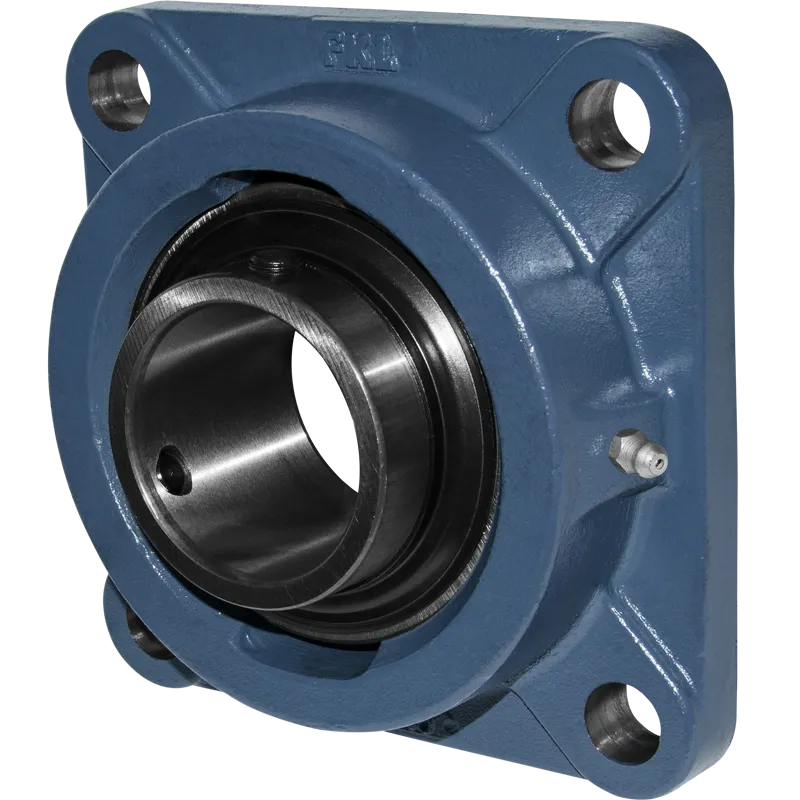

LEF 212 2TB

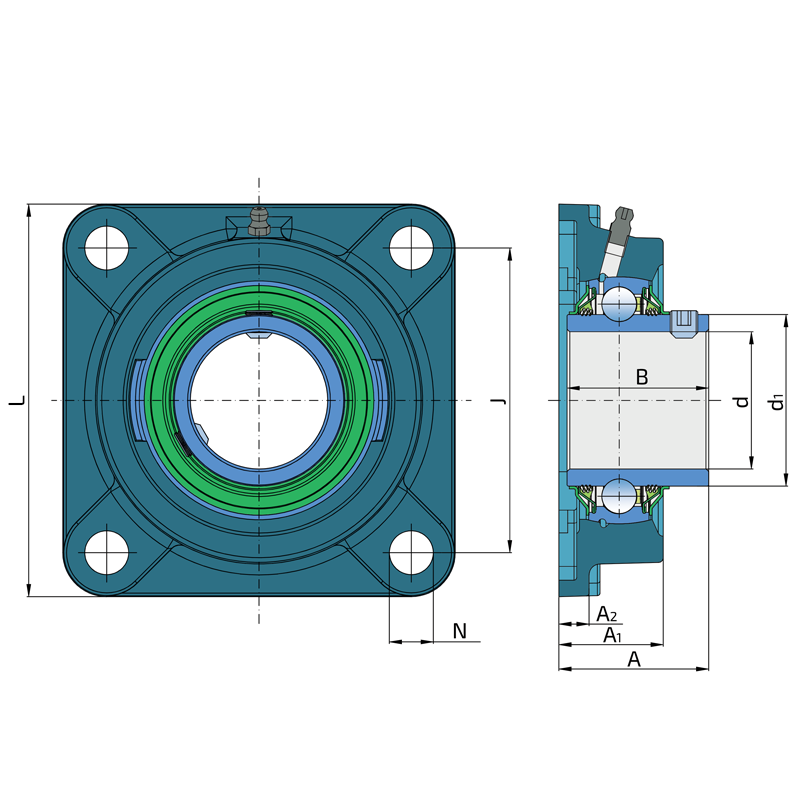

Technical specifications
| d | Bore diameter | 60 mm |
| d1 | Outer diameter inner ring | 75.64 mm |
| L | Overall length | 175 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 68.7 mm |
| A1 | Total housing width | 48 mm |
| A2 | Housing flange thickness | 15 mm |
| J | Distance between the holes | 143 mm |
| N | Diameter of attachment slot | 19 mm |
| B | Width inner ring | 65.1 mm |
| kg | Mass | 4.27 kg |
| Cdyn | Dynamic load rating | 52 kN |
| Co | Static load rating | 36 kN |
| Pu | Fatigue load limit | 1.512 kN |

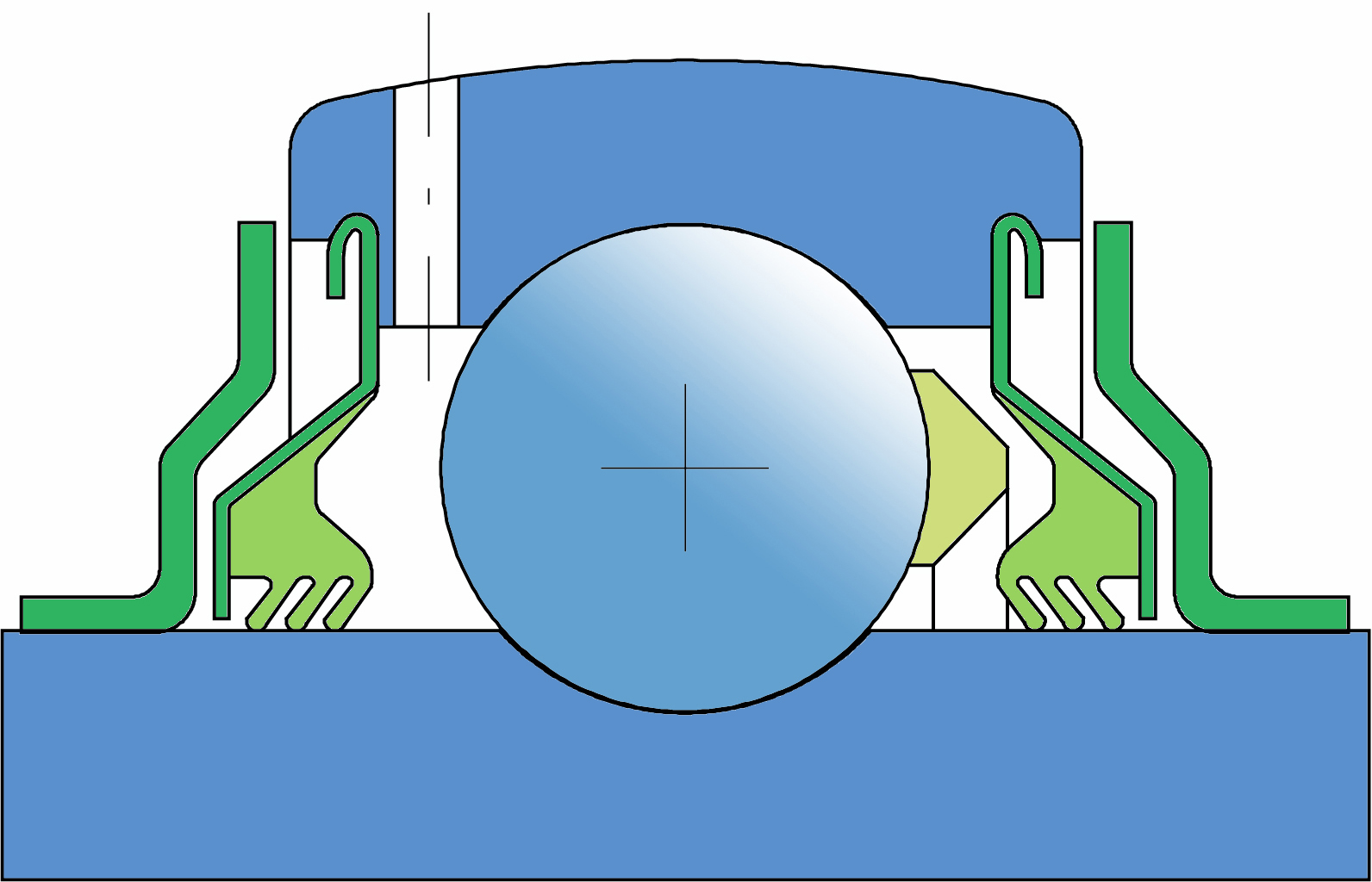

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
