LEF 211 2T

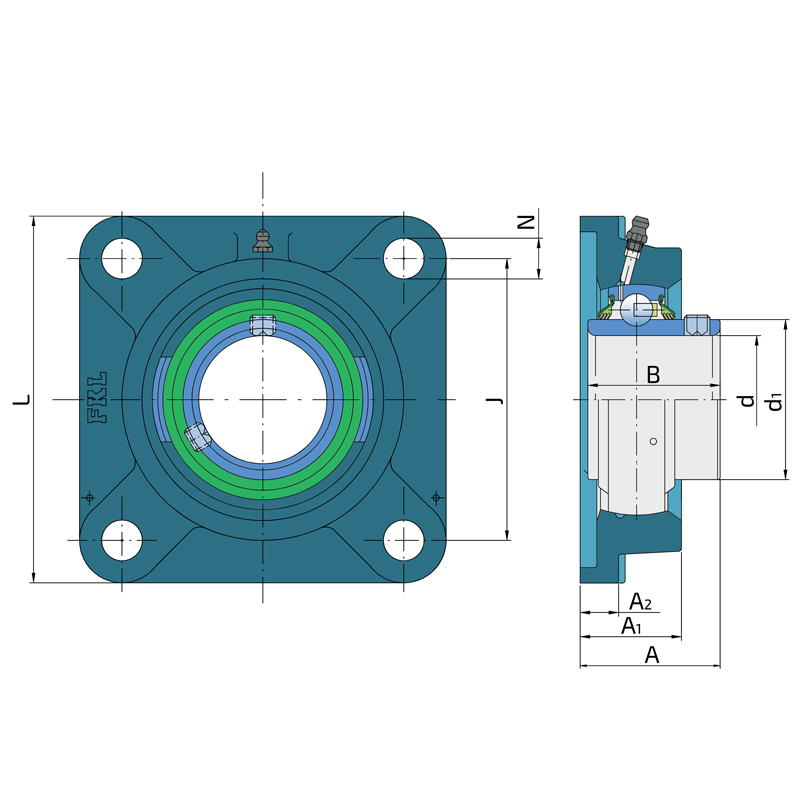

Technical specifications
| d | Bore diameter | 55 mm |
| d1 | Outer diameter inner ring | 69.06 mm |
| L | Total length | 162 mm |
| J | Distance between the holes | 130 mm |
| N | Hole diameter | 19 mm |
| A | Overall width | 58.4 mm |
| A1 | Total housing width | 43 mm |
| A2 | Housing flange thickness | 17 mm |
| B | Width inner ring | 55.6 mm |
| kg | Mass | 3.04 kg |
| Cdyn | Dynamic load rating | 43.6 kN |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.218 kN |

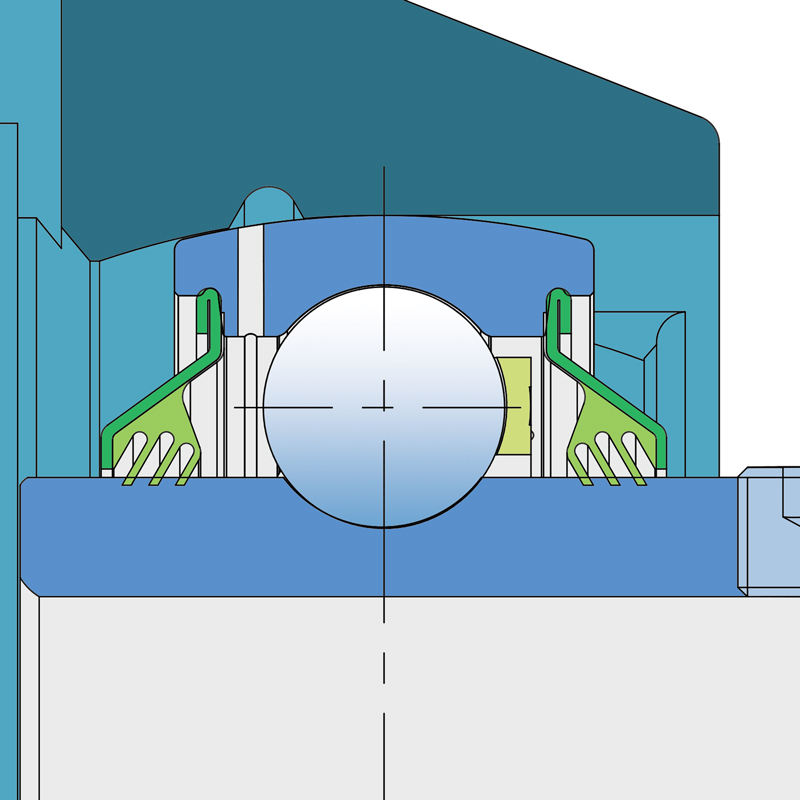

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INDUSAGRI | LEF 211 2T |
