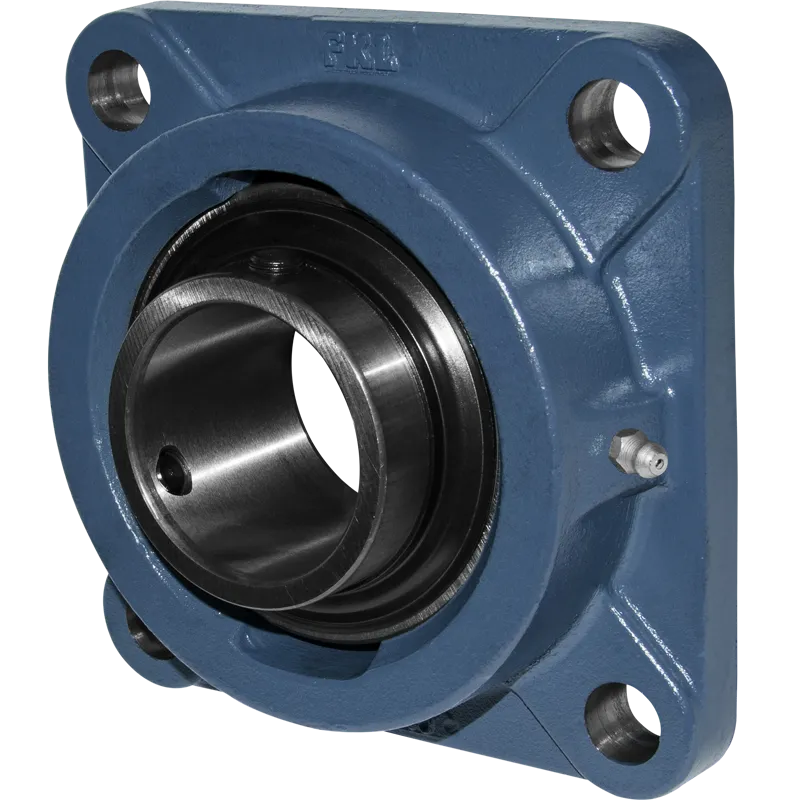

LEF 210 2TB

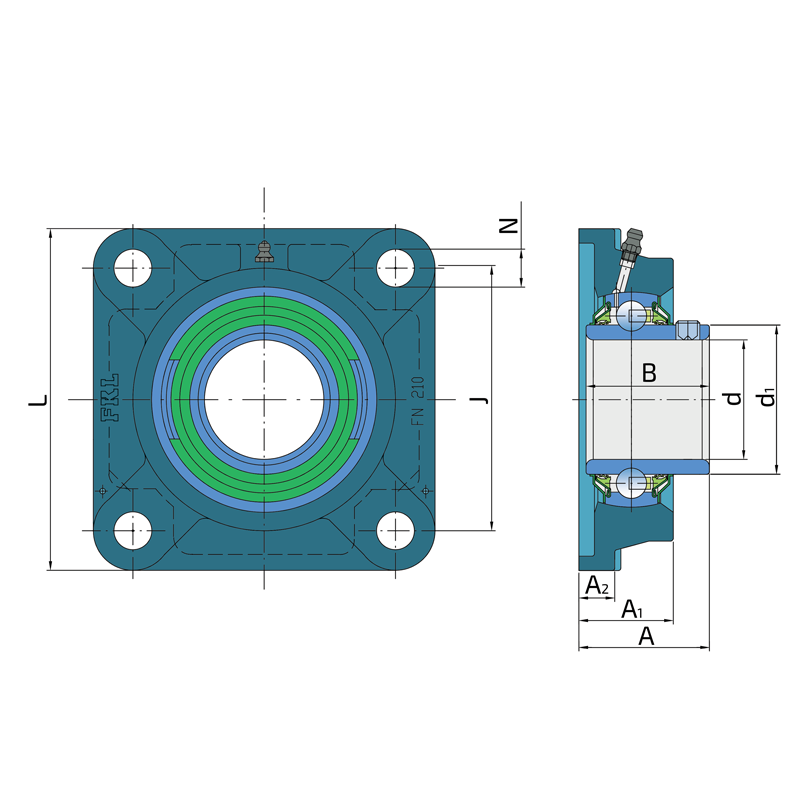

Technical specifications
| d | Bore diameter | 50 mm |
| d1 | Inner ring outside diameter | 62.5 mm |
| L | Overall length | 143 mm |
| J | Distance between the holes | 111 mm |
| N | Diameter of attachment slot | 16 mm |
| A | Overall width | 54.6 mm |
| A1 | Total housing width | 40 mm |
| A2 | Housing flange thickness | 11 mm |
| B | Width inner ring | 51.6 mm |
| kg | Mass | 2.6 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.974 kN |

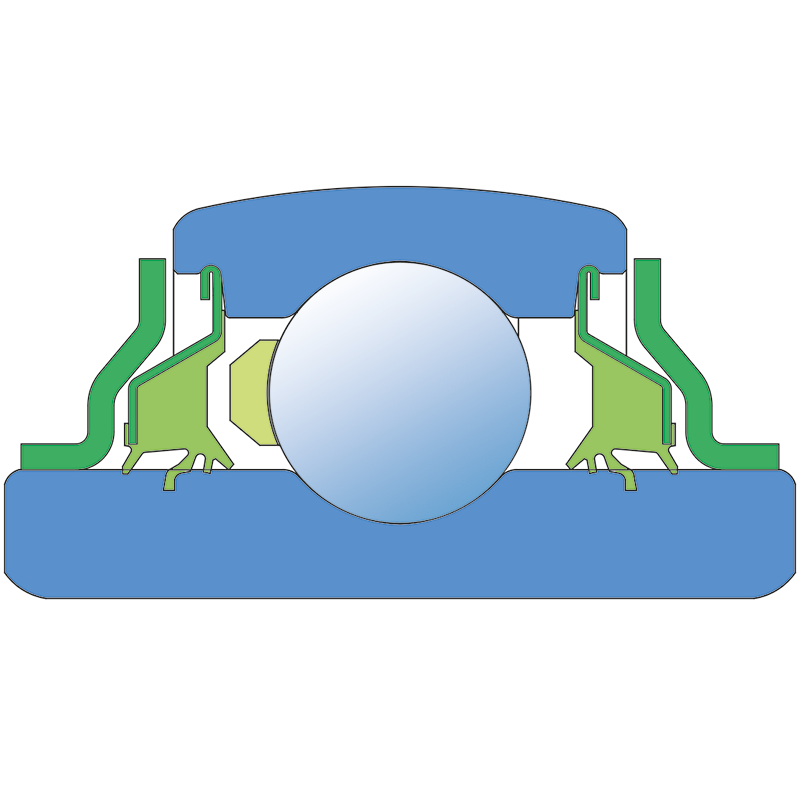

PB SEAL / PB SEAL (2PB)
A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
