LEF 210 2T

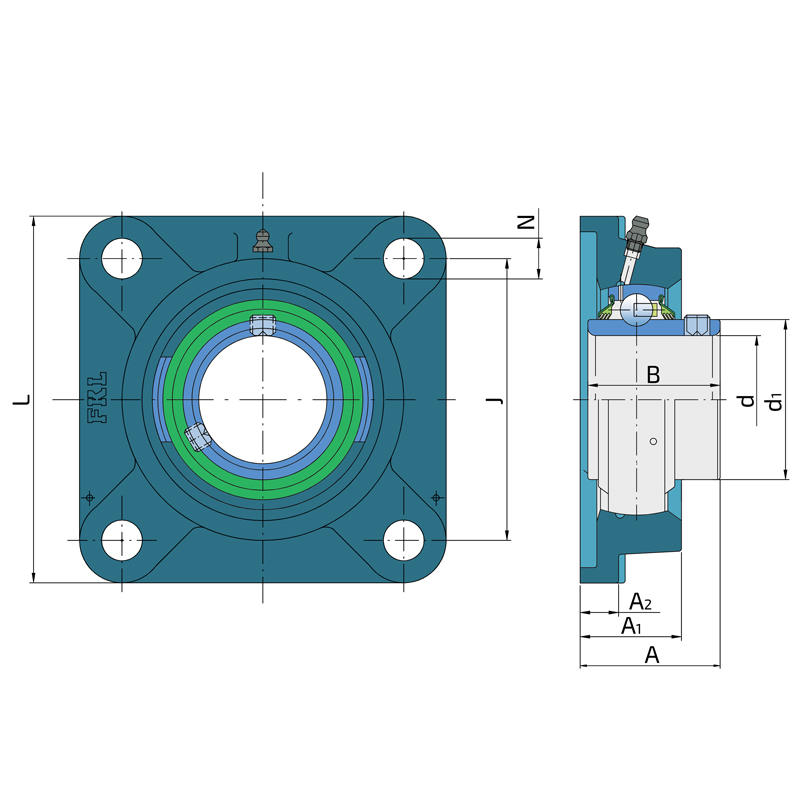

Technical specifications
| d | Bore diameter | 50 mm |
| d1 | Outer diameter inner ring | 62.5 mm |
| L | Total length | 143 mm |
| J | Distance between the holes | 111 mm |
| N | Hole diameter | 16H13 mm |
| A | Overall width | 54.6 mm |
| A1 | Total housing width | 40 mm |
| A2 | Housing flange thickness | 11 mm |
| B | Width inner ring | 51.6 mm |
| kg | Mass | 2.6 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.974 kN |

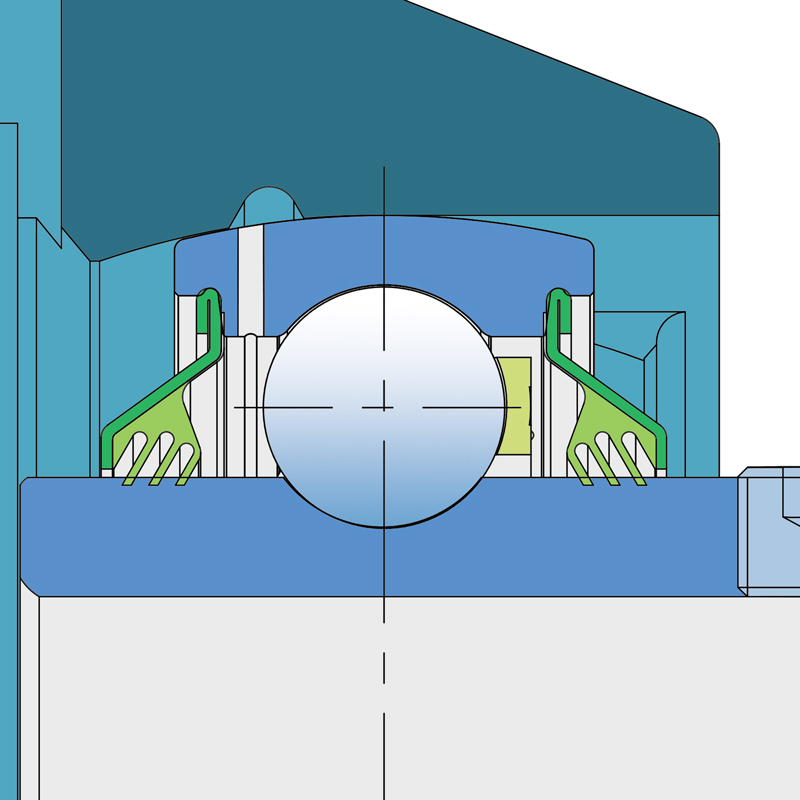

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
