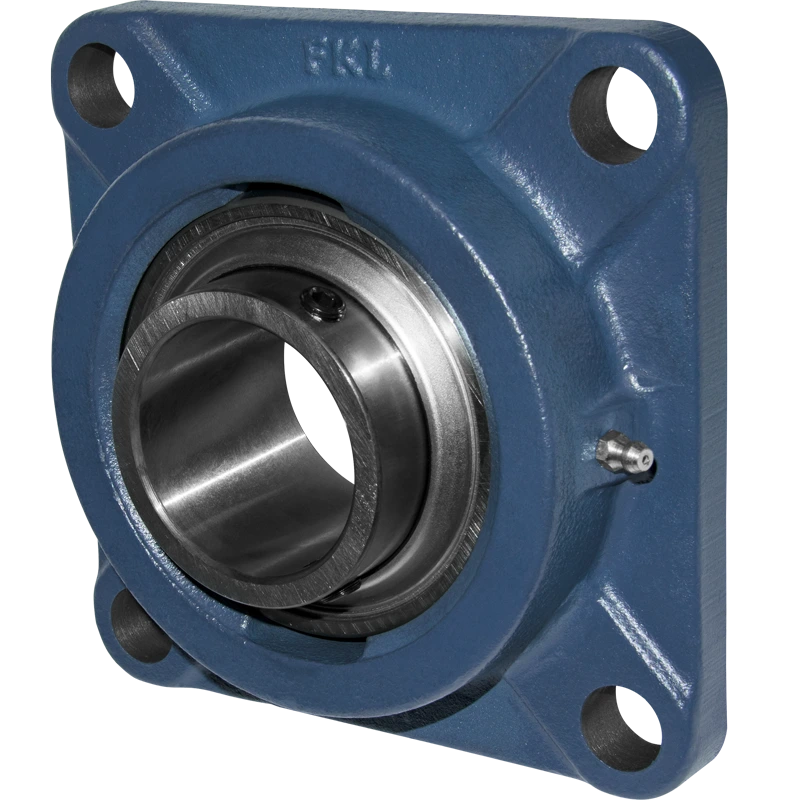

LEF 208 2T

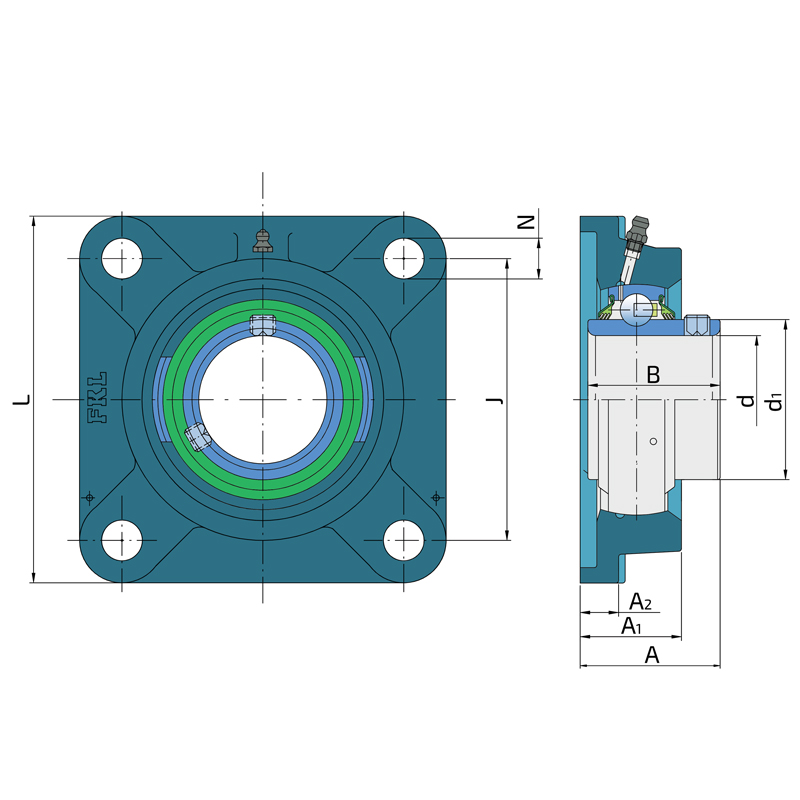

Technical specifications
| d | Bore diameter | 40 mm |
| d1 | Outer diameter inner ring | 51.8 mm |
| L | Total length | 130 mm |
| J | Distance between the holes | 102 mm |
| N | Hole diameter | 16H13 mm |
| A | Overall width | 51.2 mm |
| A1 | Total housing width | 36 mm |
| A2 | Housing flange thickness | 11 mm |
| B | Width inner ring | 49.2 mm |
| kg | Mass | 1.85 kg |
| Cdyn | Dynamic load rating | 30.7 kN |
| Co | Static load rating | 19 kN |
| Pu | Fatigue load limit | 0.798 kN |

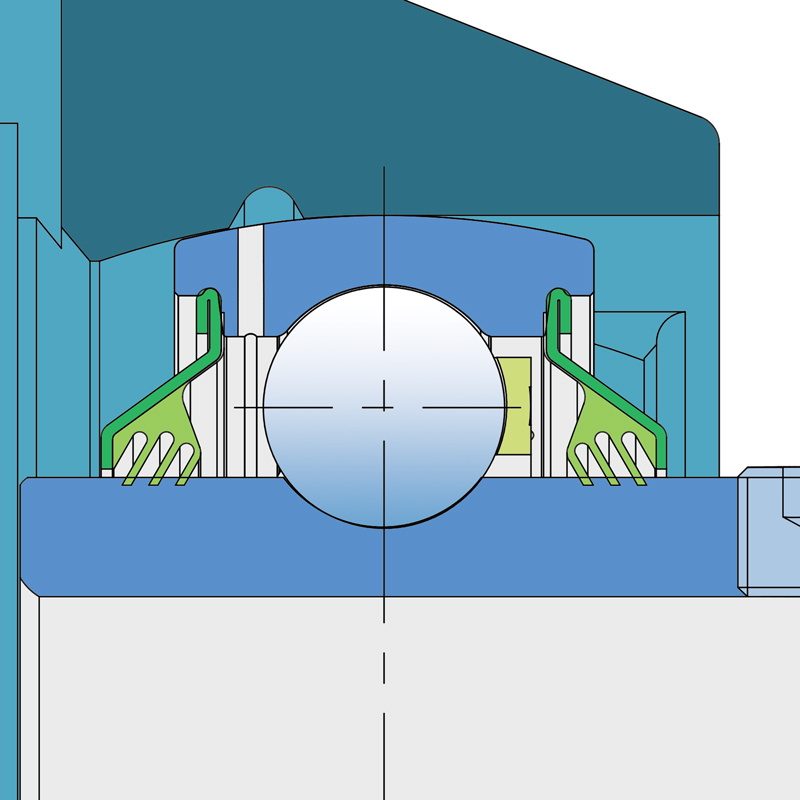

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
