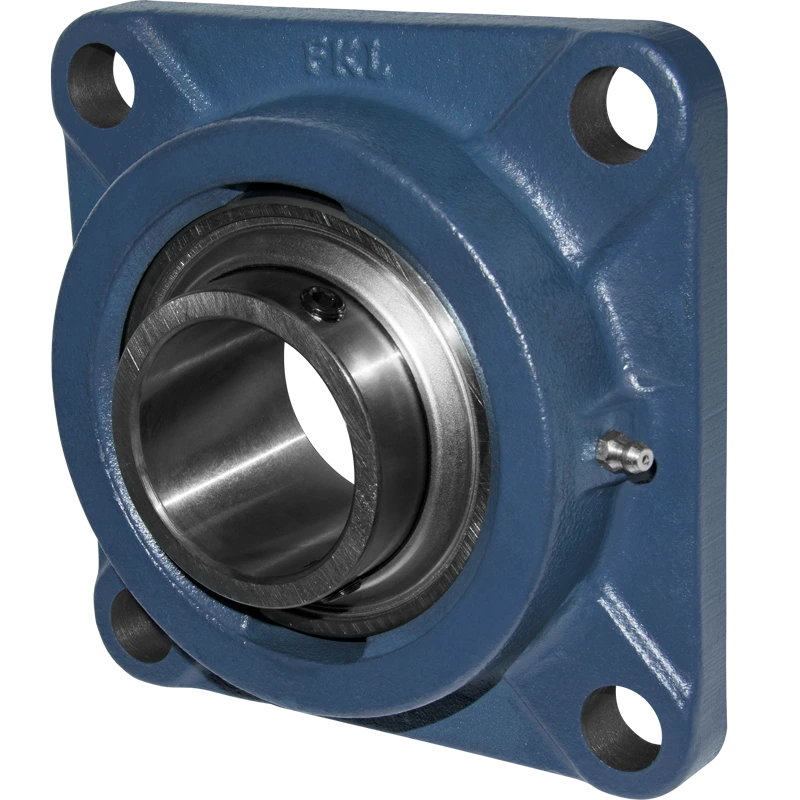

LEF 207 2T

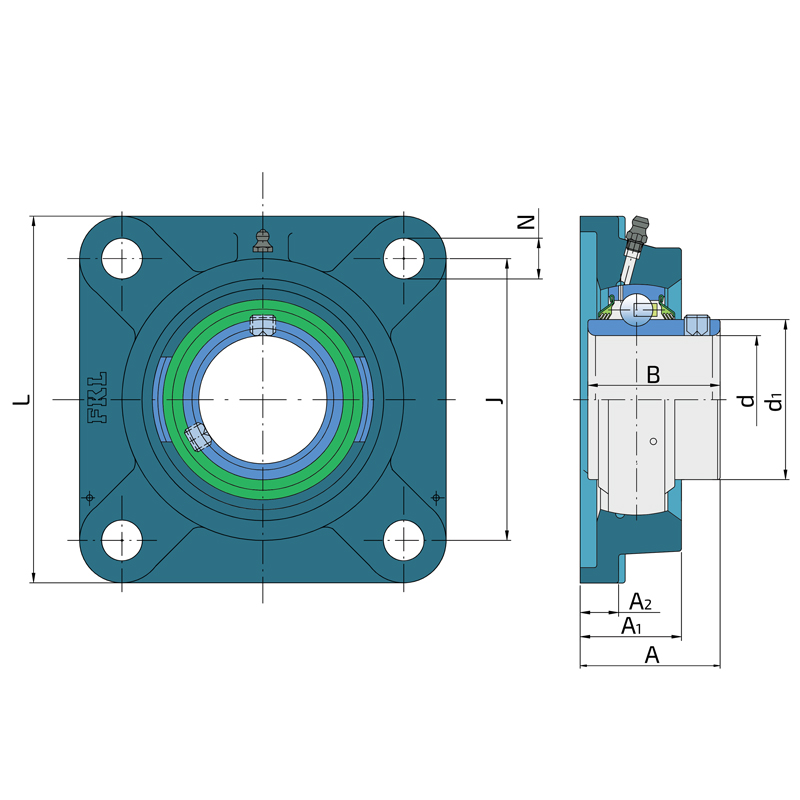

Technical specifications
| d | Bore diameter | 35 mm |
| d1 | Outer diameter inner ring | 46.1 mm |
| L | Total length | 118 mm |
| J | Distance between the holes | 92 mm |
| A | Overall width | 44.4 mm |
| A1 | Total housing width | 34 mm |
| A2 | Housing flange thickness | 13 mm |
| B | Width inner ring | 42.9 mm |
| kg | Mass | 1.5 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.643 kN |

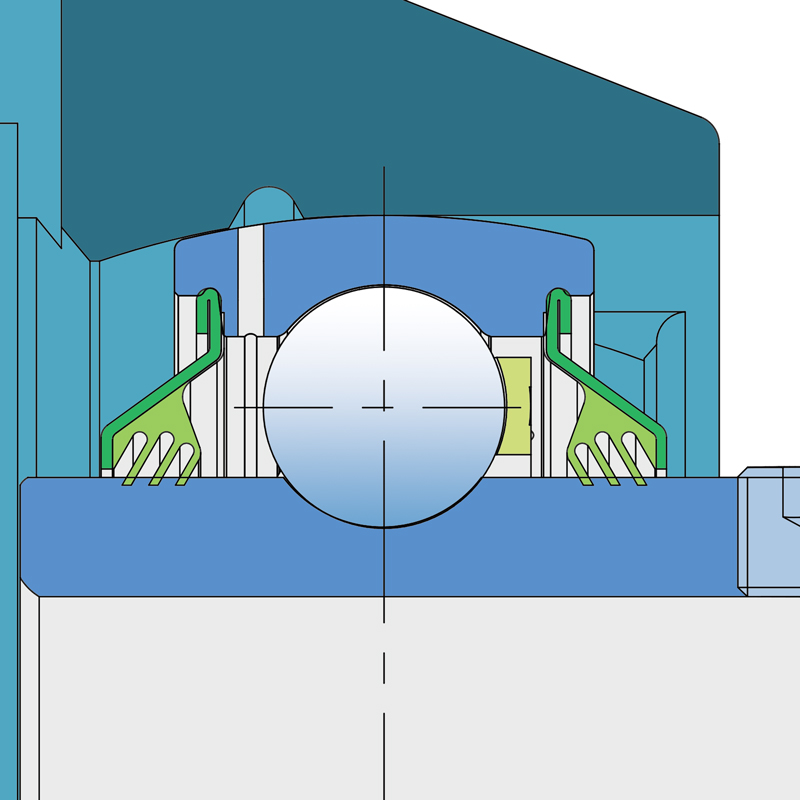

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
