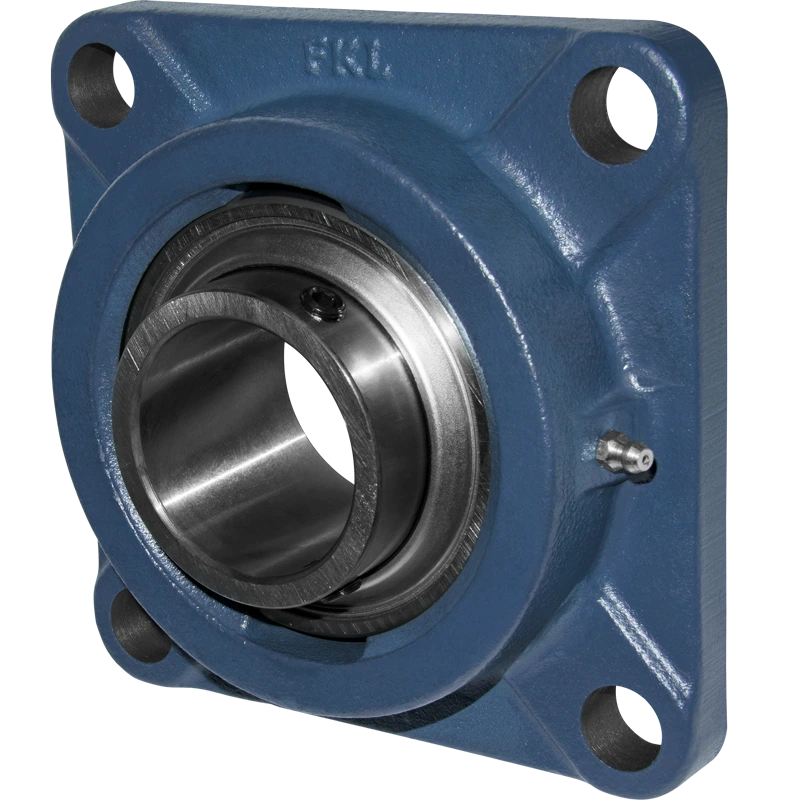

LEF 206 2T

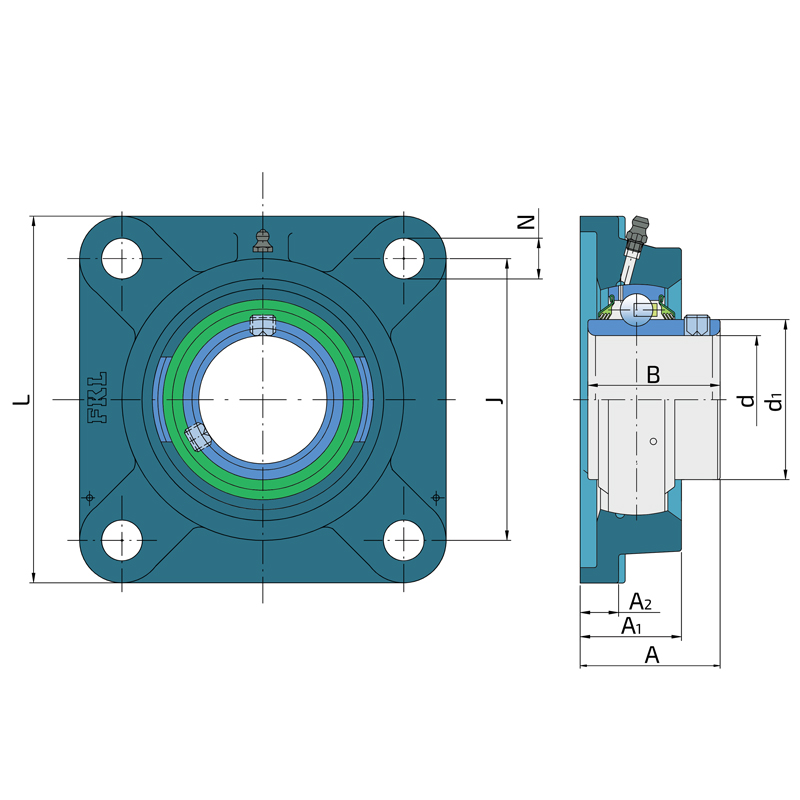

Technical specifications
| d |
Bore diameter |
30 mm |
| d1 |
Outer diameter inner ring |
39.7 mm |
| L |
Total length |
108 mm |
| J |
Distance between the holes |
83 mm |
| N |
Hole diameter |
12H13 mm |
| A |
Overall width |
40.2 mm |
| A1 |
Total housing width |
31 mm |
| A2 |
Housing flange thickness |
11 mm |
| B |
Width inner ring |
38.1 mm |
| kg |
Mass |
1.05 kg |
| Cdyn |
Dynamic load rating |
19.5 kN |
| Co |
Static load rating |
11.3 kN |
| Pu |
Fatigue load limit |
0.475 kN |

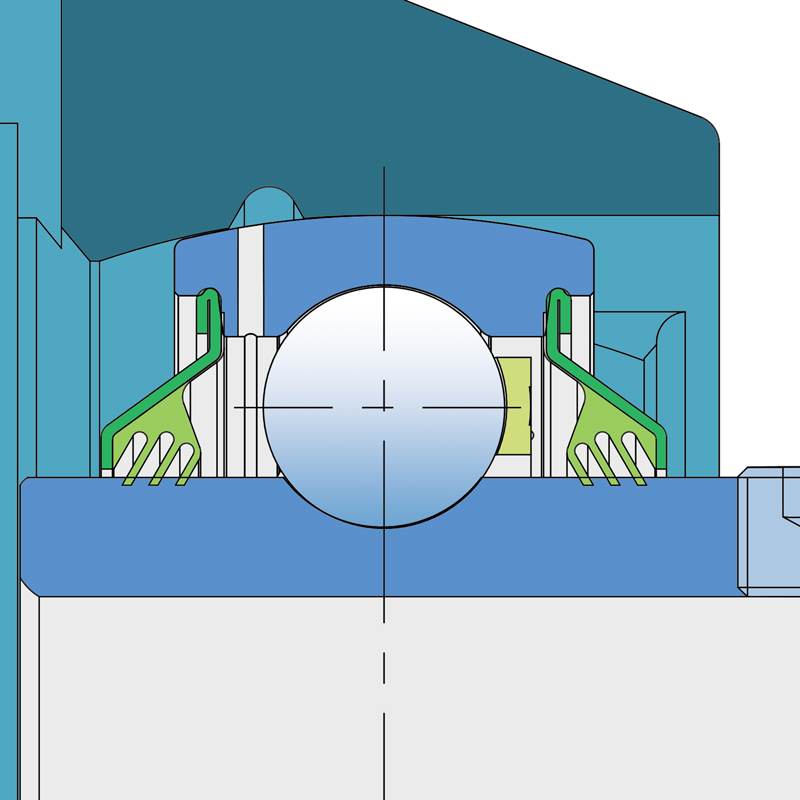

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
