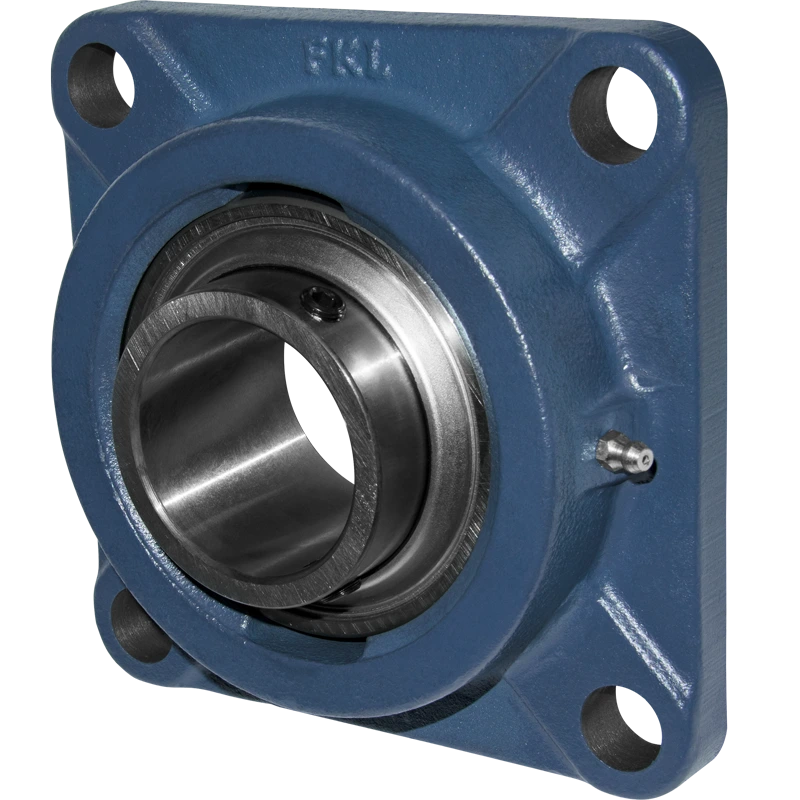

LEF 205 2T

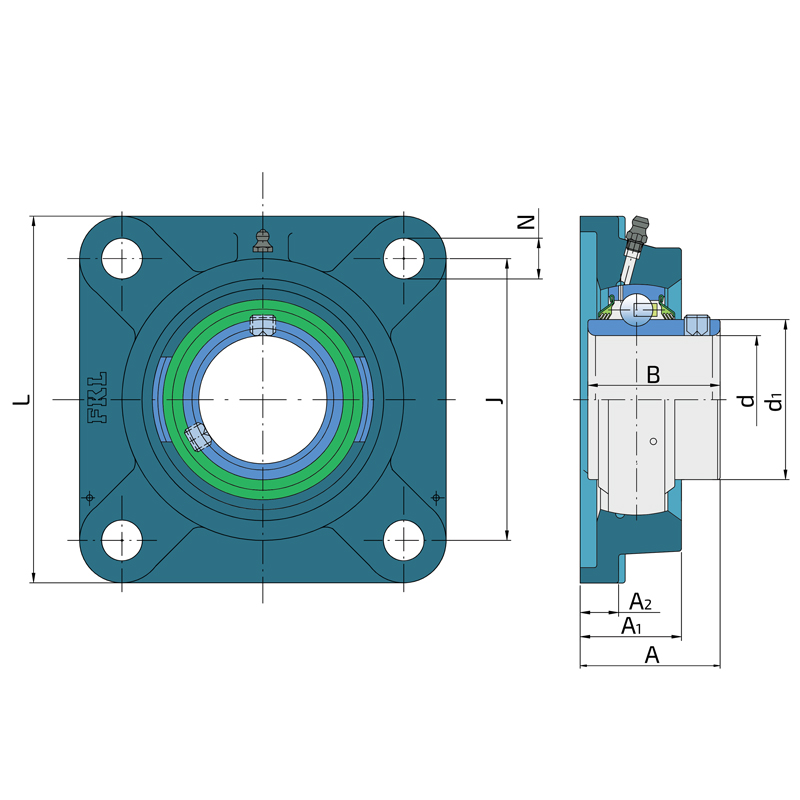

Technical specifications
| d |
Bore diameter |
25 mm |
| d1 |
Outer diameter inner ring |
33.6 mm |
| L |
Total length |
95 mm |
| J |
Distance between the holes |
70 mm |
| N |
Hole diameter |
12H13 mm |
| A |
Overall width |
35.8 mm |
| A1 |
Total housing width |
27 mm |
| A2 |
Housing flange thickness |
9.5 mm |
| B |
Width inner ring |
34.1 mm |
| kg |
Mass |
0.75 kg |
| Cdyn |
Dynamic load rating |
14 kN |
| Co |
Static load rating |
7.8 kN |
| Pu |
Fatigue load limit |
0.328 kN |

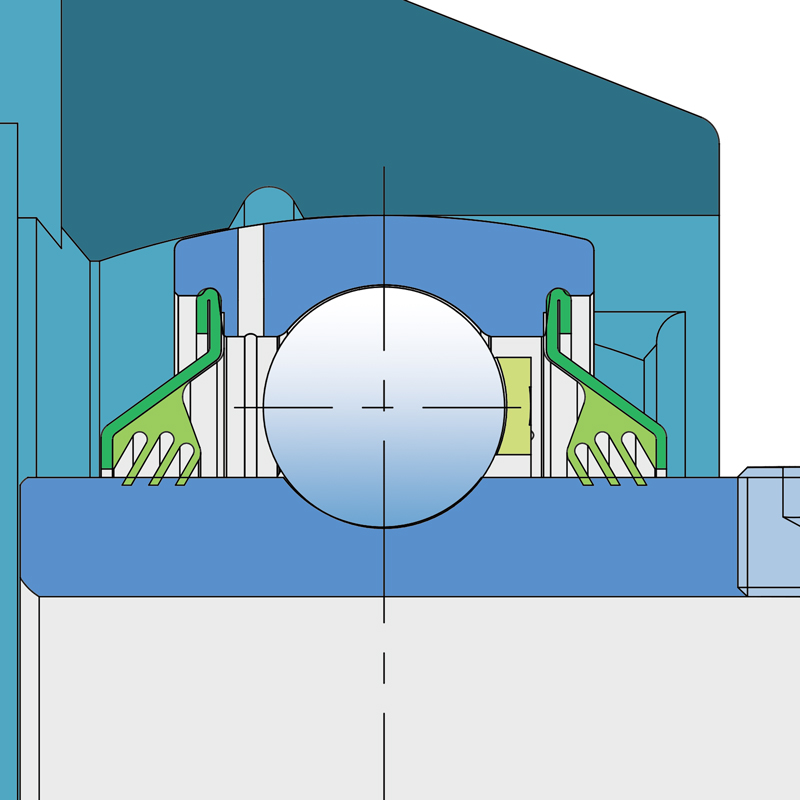

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
