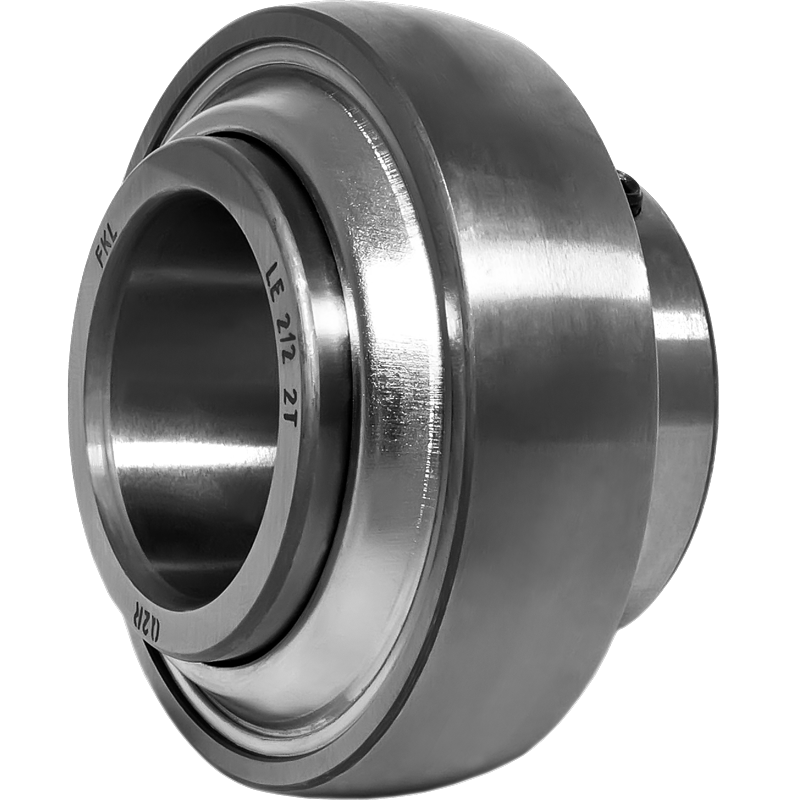

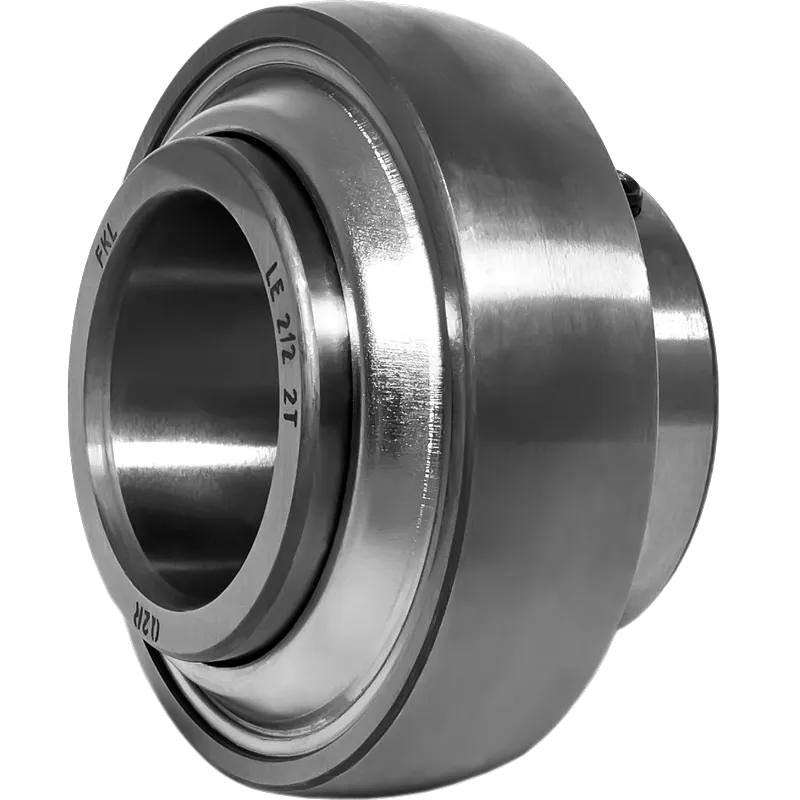

LE 212 2T

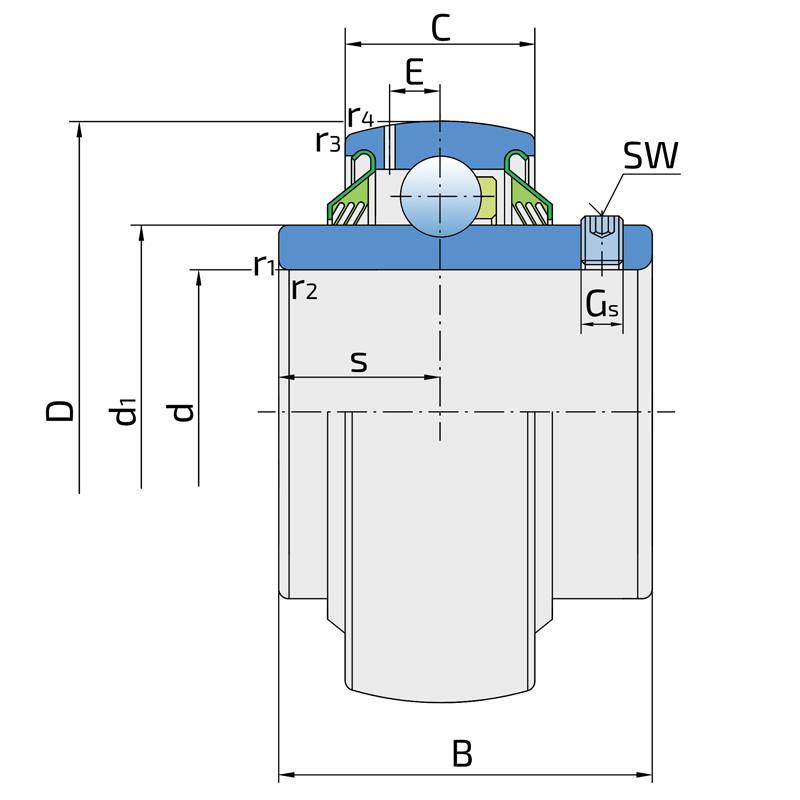

Technical specifications
| d | Bore diameter | 60 mm |
| D | Outside diameter | 110 mm |
| B | Width inner ring | 65.1 mm |
| C | Width outer ring | 26 mm |
| s | Distance from inner ring side face to raceway centre | 26 mm |
| d1 | Inner ring outside diameter | 75.5 mm |
| E | Distance from raceway centre to the hole for lubrication | 7.7 mm |
| Gs | Set screw | M10x1 mm |
| sw | Hexagonal key size for set screw | 5 mm |
| r1,2 | Inner ring Chamfer dimension | 1.5 mm |
| r3,4 | Outside ring Chamfer dimension | 2 mm |
| Cdyn | Dynamic load rating | 52.7 kN |
| Co | Static load rating | 36 kN |
| Pu | Fatigue load limit | 1.53 kN |
| kg | Mass | 1.3 kg |

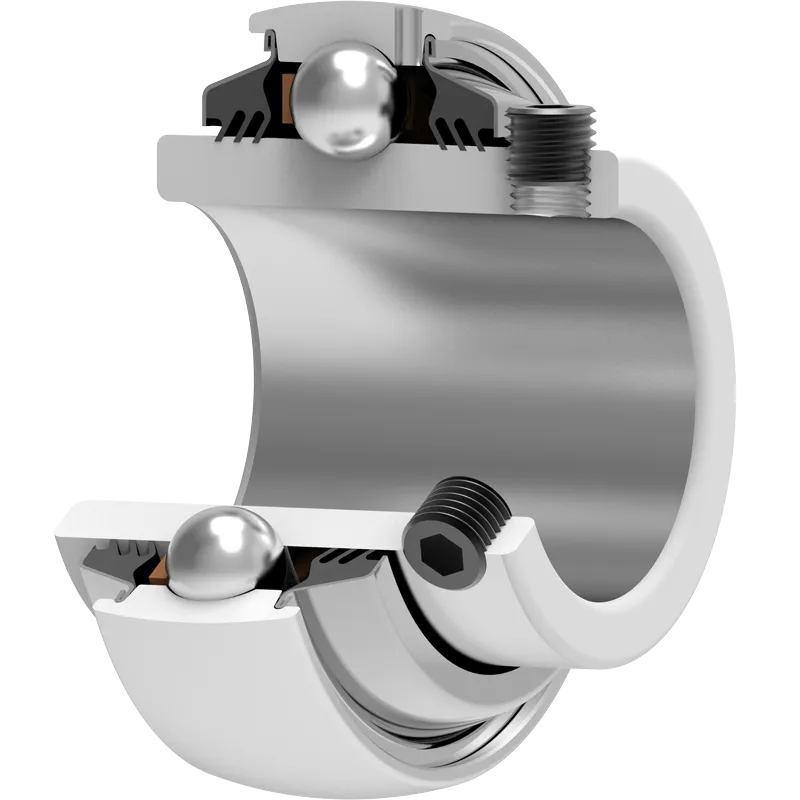

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
