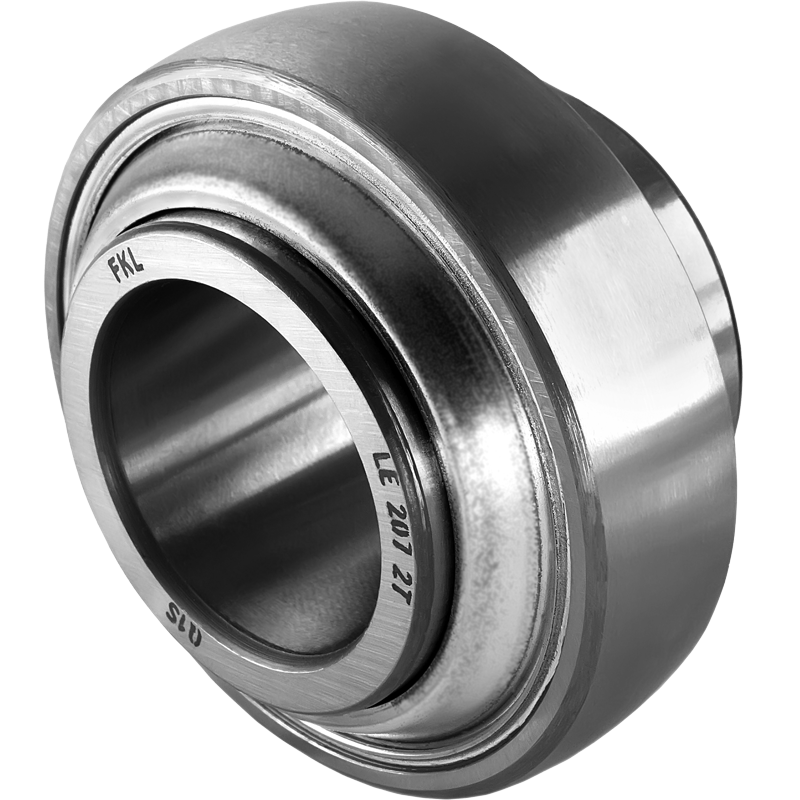

LE 207 2T

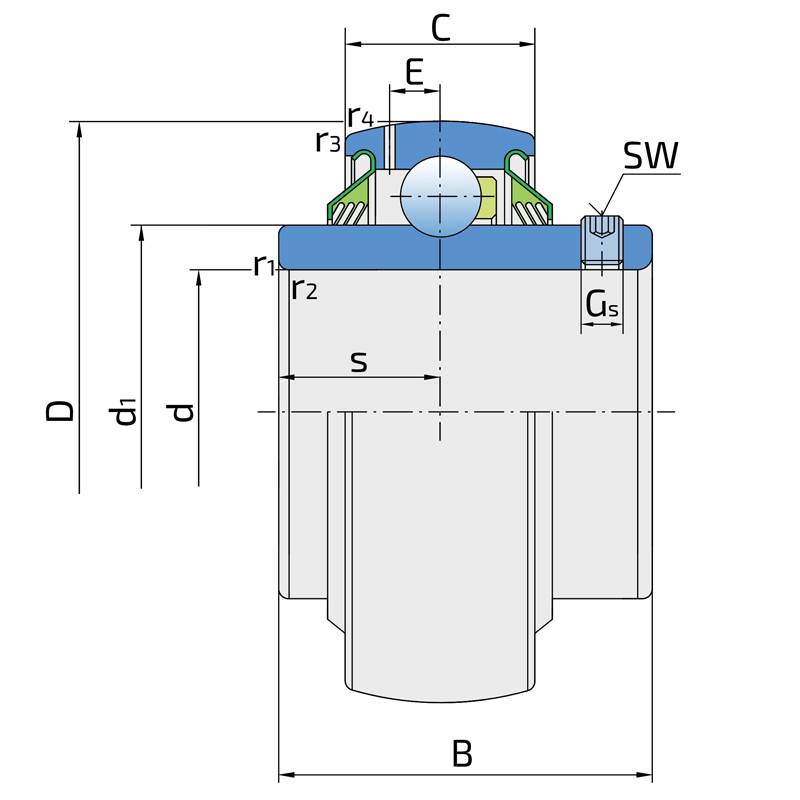

Technical specifications
| d | Bore diameter | 35 mm |
| D | Outside diameter | 72 mm |
| B | Width inner ring | 42.9 mm |
| C | Width outer ring | 19 mm |
| s | Distance from inner ring side face to raceway centre | 17.5 mm |
| d1 | Outer diameter inner ring | 46.1 mm |
| E | Distance from raceway centre to the hole for lubrication | 5.6 mm |
| Gs | Set screw | M6x0.75 mm |
| sw | Hexagonal key size for set screw | 3 mm |
| r1,2 | Inner ring Chamfer dimension | 1 mm |
| r3,4 | Outside ring Chamfer dimension | 1 mm |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.655 kN |
| kg | Mass | 0.41 kg |

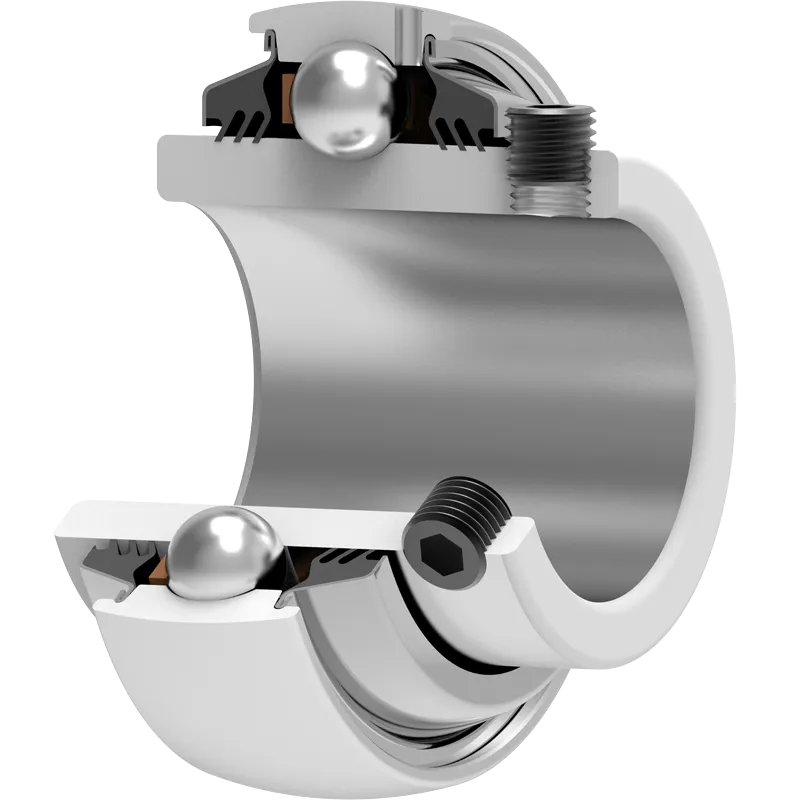

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
