LE 205 2T

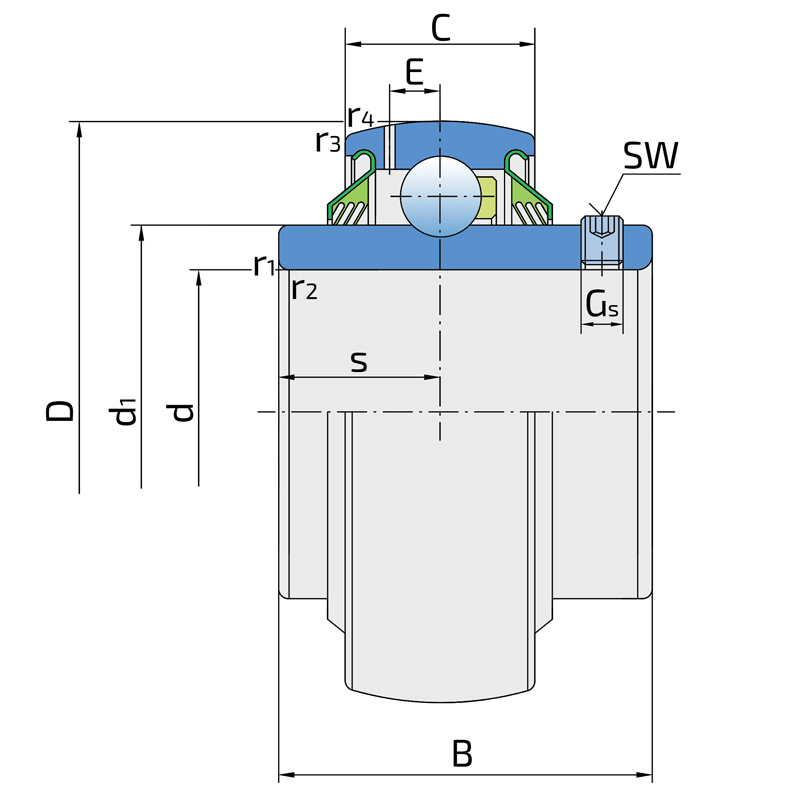

Technical specifications
| d |
Bore diameter |
25 mm |
| D |
Outside diameter |
52 mm |
| B |
Width inner ring |
34.1 mm |
| C |
Width outer ring |
15 mm |
| s |
Distance from inner ring side face to raceway centre |
14.3 mm |
| d1 |
Outer diameter inner ring |
33.6 mm |
| E |
Distance from raceway centre to the hole for lubrication |
4.3 mm |
| Gs |
Set screw |
M6x0.75 mm |
| sw |
Hexagonal key size for set screw |
3 mm |
| r1,2 |
Inner ring Chamfer dimension |
0.6 mm |
| r3,4 |
Outside ring Chamfer dimension |
0.6 mm |
| Cdyn |
Dynamic load rating |
14 kN |
| Co |
Static load rating |
7.8 kN |
| Pu |
Fatigue load limit |
0.335 kN |
| kg |
Mass |
0.17 kg |

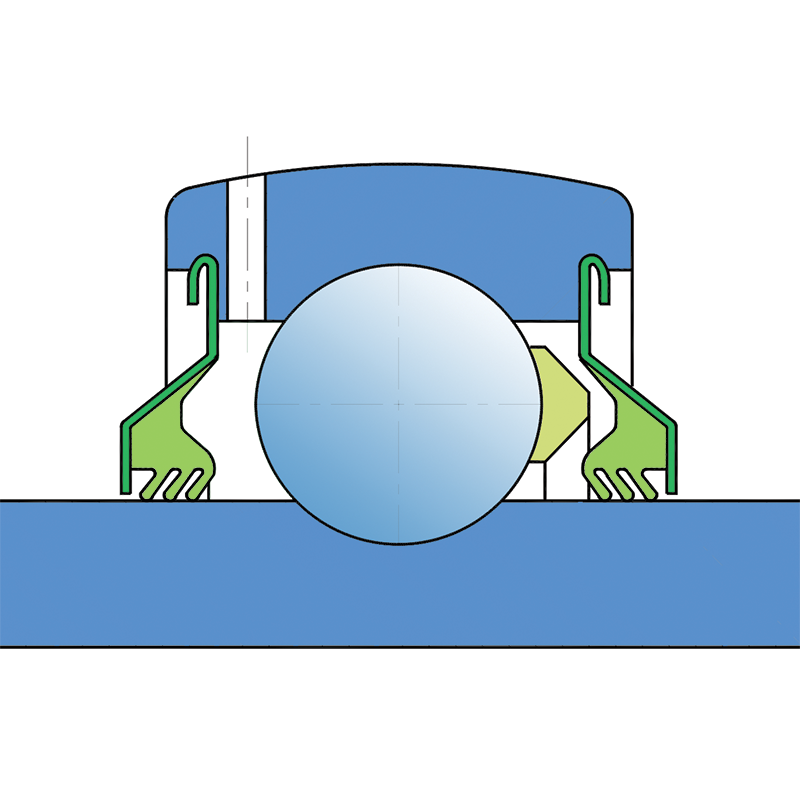

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
