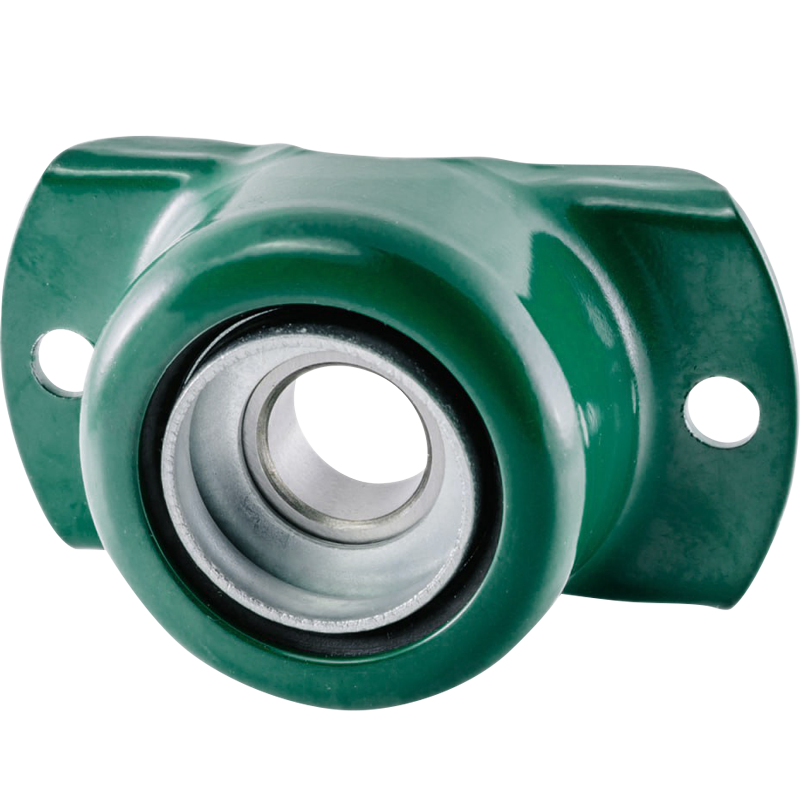

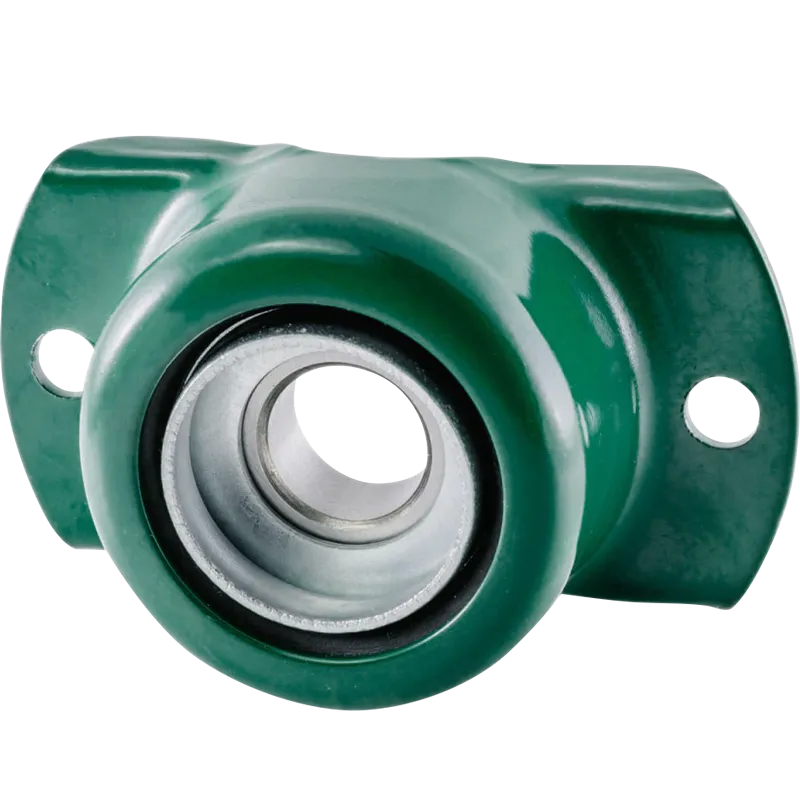

KSS-20 A
Technical specifications
| d |
Bore diameter |
20 mm |
| D |
Center bore diameter |
62 mm |
| J |
Distance between the holes |
85 mm |
| A |
Housing width |
34.5 mm |
| L |
Overall width |
65.5 mm |
| H |
Housing height |
103 mm |
| F |
Length of threaded part |
26 mm |
| kg |
Mass |
0.475 kg |
| Cdyn |
Dynamic load rating |
12.7 kN |
| Co |
Static load rating |
6.55 kN |
| Pu |
Fatigue load limit |
0.275 kN |
Cross references
| FAG |
KSS-20 |
| IMT |
616.23.270 |
| KONGSKILDE |
03000454 |
| KONGSKILDE |
103000454 |
Installations
| KONGSKILDE |
Vibro Master |
| KONGSKILDE |
Germinator |
