IL60-145/4H-M27x2-LH-40

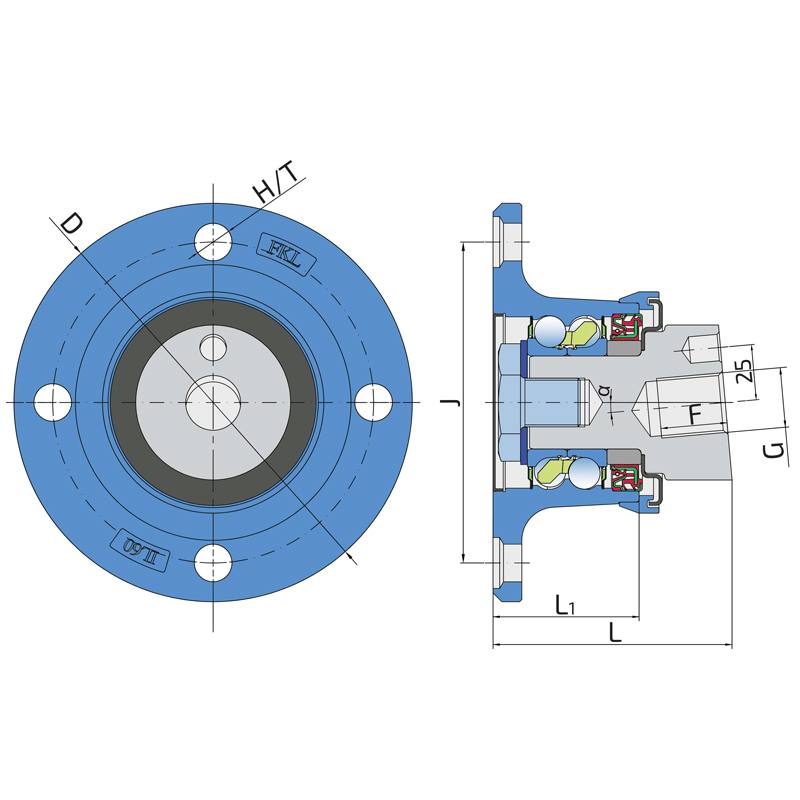

Technical specifications
| J | Pitch circle diameter | 145 mm |
| D | Outside diameter | 180 mm |
| H/T | Hole/Thread | 4x17 mm |
| G | Internal Thread | M27x2-7H left mm |
| L | Total length | 108 mm |
| L1 | Total flange length | 66 mm |
| F | Length of threaded part | 30 mm |
| α | Contact angle | 5 ° |
| kg | Mass | 5.52 kg |
| Cdyn | Dynamic load rating | 66.35 kN |
| Co | Static load rating | 56.49 kN |
| Pu | Fatigue load limit | 2.373 kN |

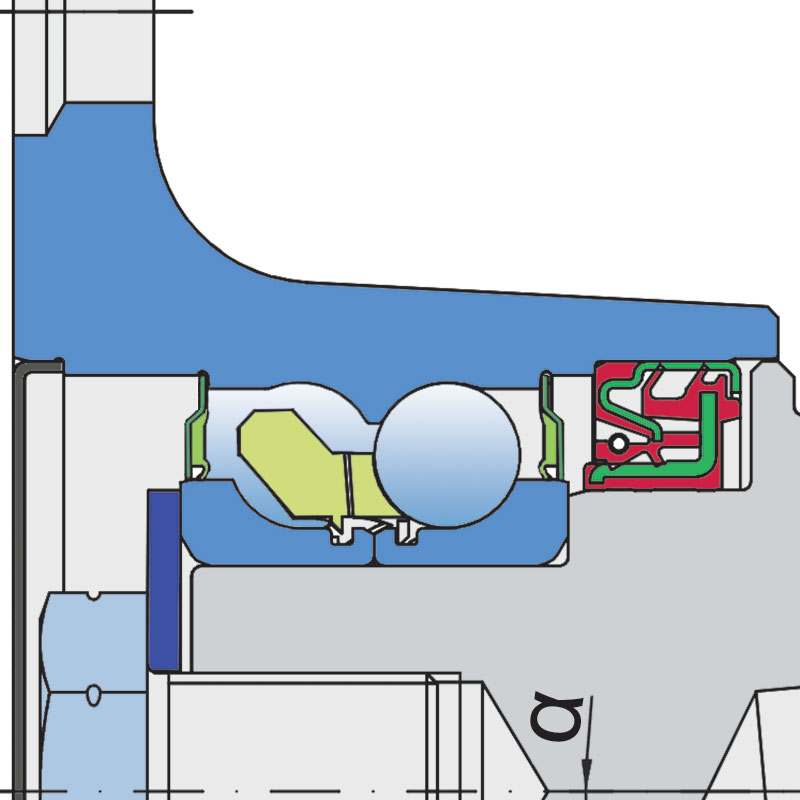

SHEET METAL SHIELD+S SEAL / S SEAL+DIRTBLOCK SEAL
Sheet metal shield and S seal on the base side and S seal and Dirtblock seal on the front side which is exposed to contaminants.
Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the flange side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
Cross references
| ПРОМАГРОТЕХНОЛОГИИ ООО (SOLAR FIELDS) | IL60-145/4H-M27x2-LH-40 |
Installations
| SOLAR FIELDS | ЛД |
| SOLAR FIELDS | ЛД Евро |
