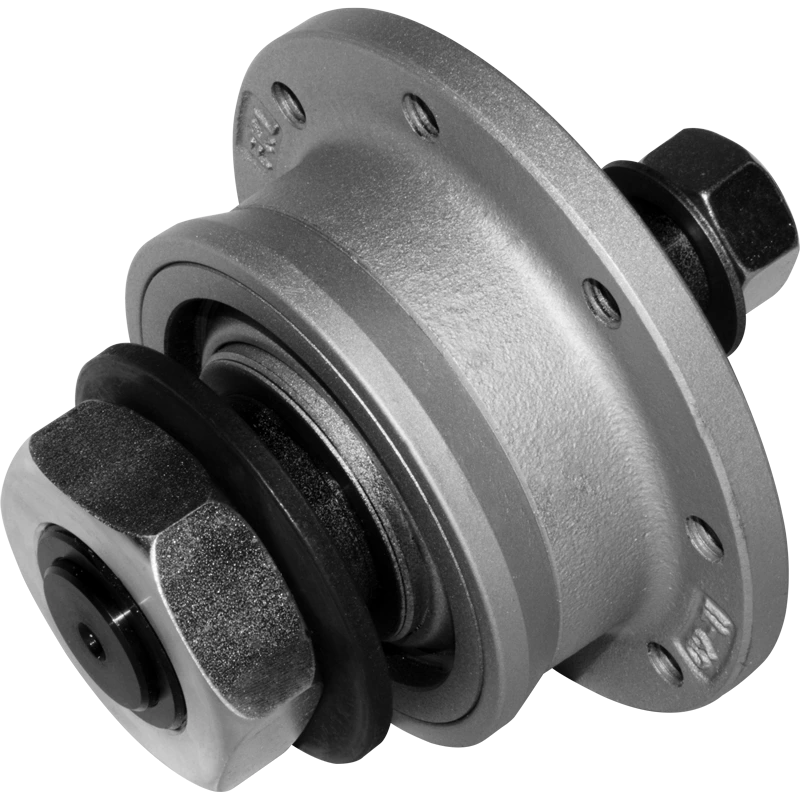

IL60-115/8T-M39-M20

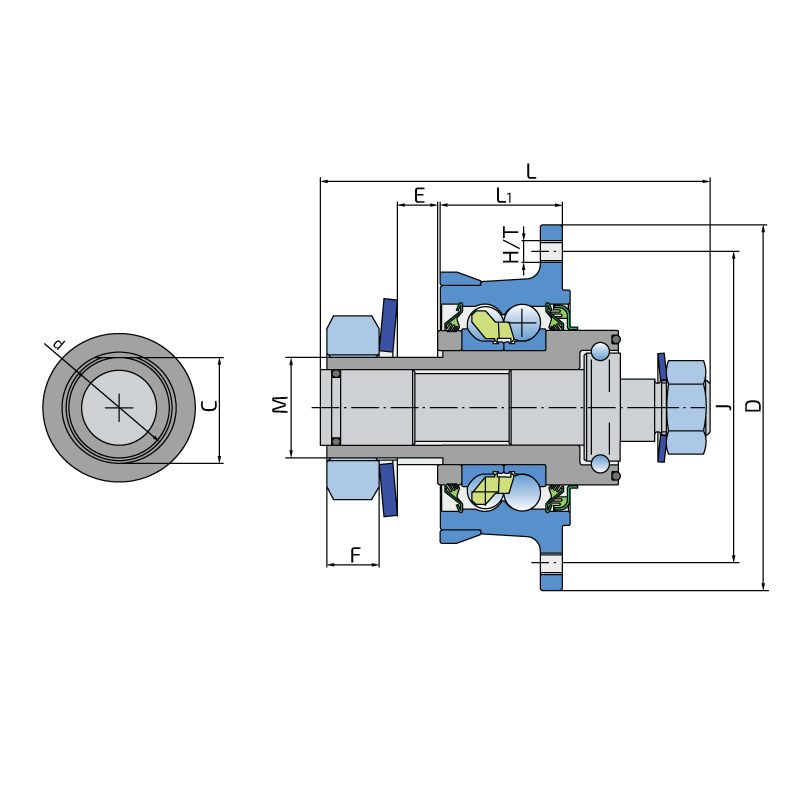

Technical specifications
| J | Pitch circle diameter | 115 mm |
| D | Outside diameter | 135 mm |
| H/T | Hole/Thread | 8xM10x1.5 mm |
| d | Shaft diameter | 42 mm |
| C | D-shape hole cut out dimension | 39.5 mm |
| M | Outher Thread | M39x1.5 mm |
| F | Length of threaded part | 26 mm |
| L | Total length | 147 mm |
| L1 | Total flange length | 47.9 mm |
| E | Length of D shape | 15 mm |
| kg | Mass | 4.07 kg |
| Cdyn | Dynamic load rating | 66.35 kN |
| Co | Static load rating | 56.49 kN |
| Pu | Fatigue load limit | 2.373 kN |

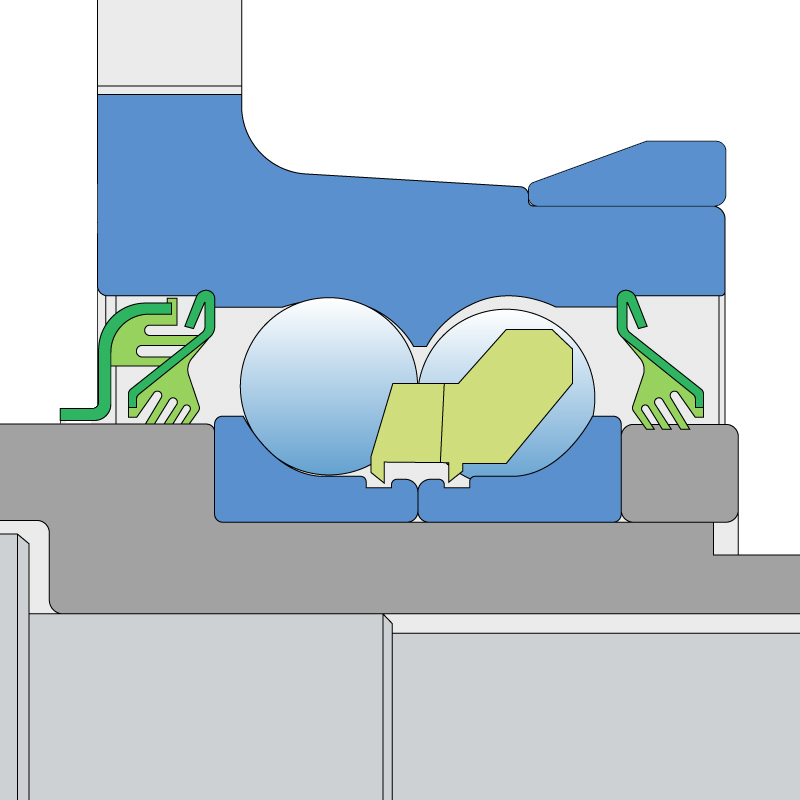

DOUBLE T SEAL / T SEAL
Double 3-lip seal on the base side and a 3-lip seal on the front side.
The double 3-lip seal on the base side protects the bearing from contaminant ingress. Additionally, the front 3-lip seal provides extra sealing and protects the inner seal from mechanical damage.
Cross references
| AGUIRRE | IL60-115/8T-M39-M20 |
