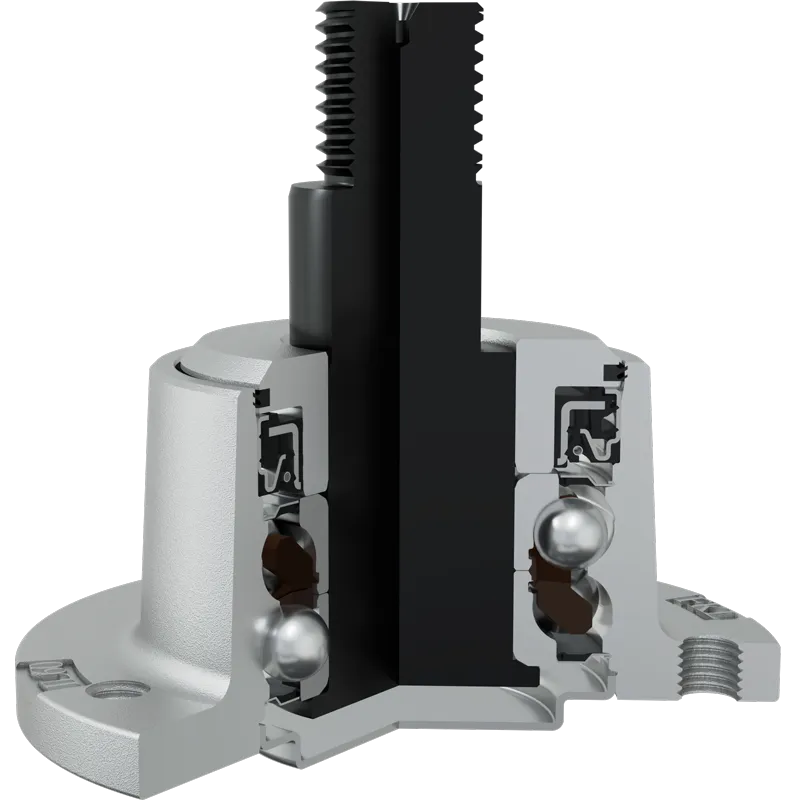

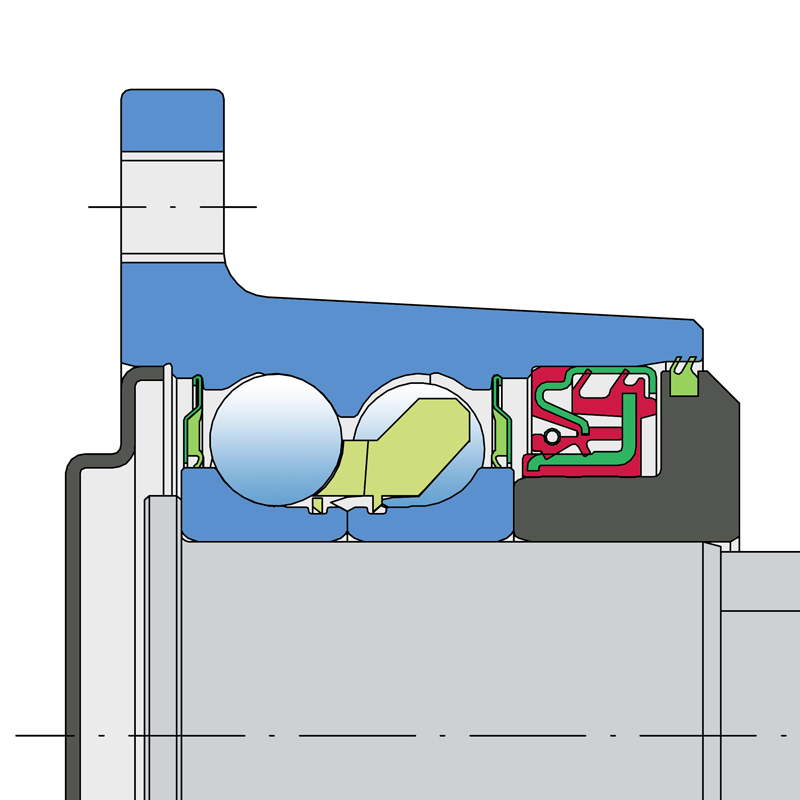

Sheet metal shield and S seal on the base side and S seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.
Sheet metal shield and S seal together with attached special disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
Additional double seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.
