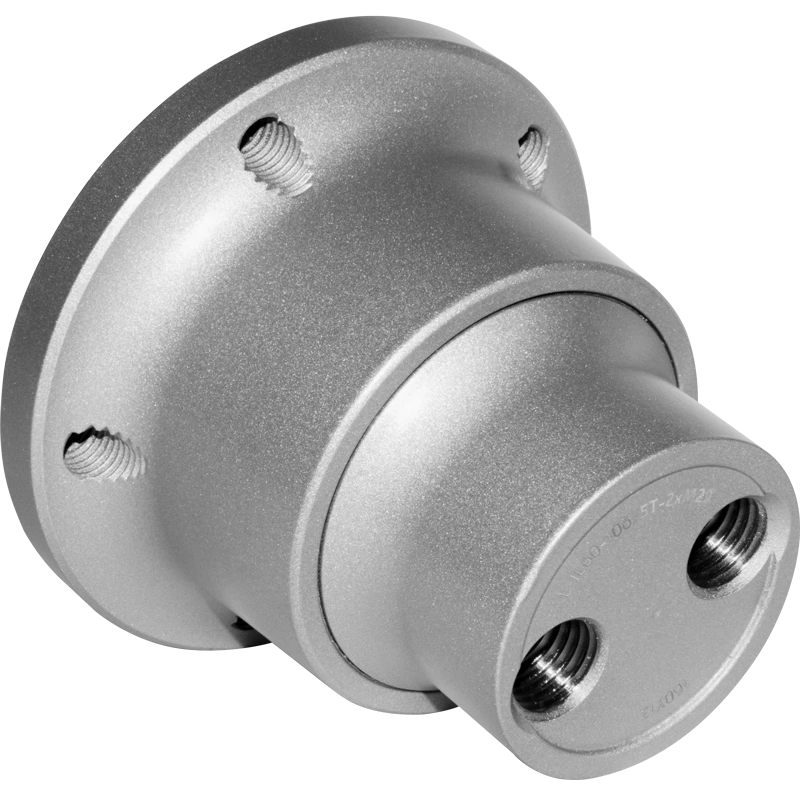

IL60-106/5T-2xM20

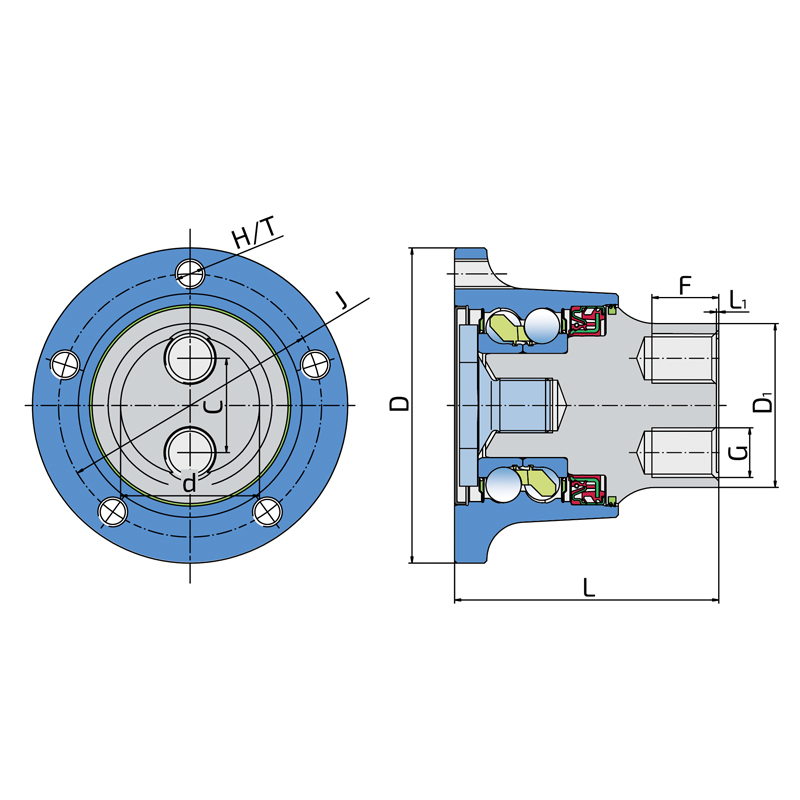

Technical specifications
| J | Pitch circle diameter | 106 mm |
| D | Outside diameter | 127 mm |
| D1 | Shaft outside diameter | 66 mm |
| d | Counterbore diameter | 56 mm |
| C | Distance between holes | 38 mm |
| H/T | Hole/Thread | 5xM12 mm |
| F | Length of threaded part | 27 mm |
| G | Internal Thread | 2xM20 mm |
| L | Total length | 106.5 mm |
| L1 | Counterbore depth | 1 mm |
| kg | Mass | 4.41 kg |
| Cdyn | Dynamic load rating | 75.86 kN |
| Co | Static load rating | 66.2 kN |
| Pu | Fatigue load limit | 2.78 kN |

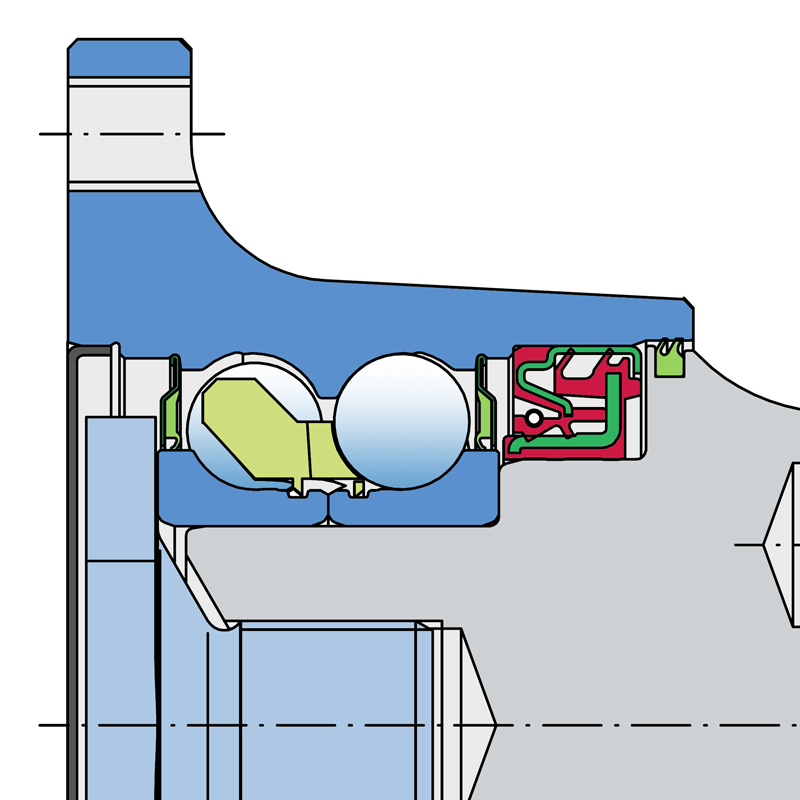

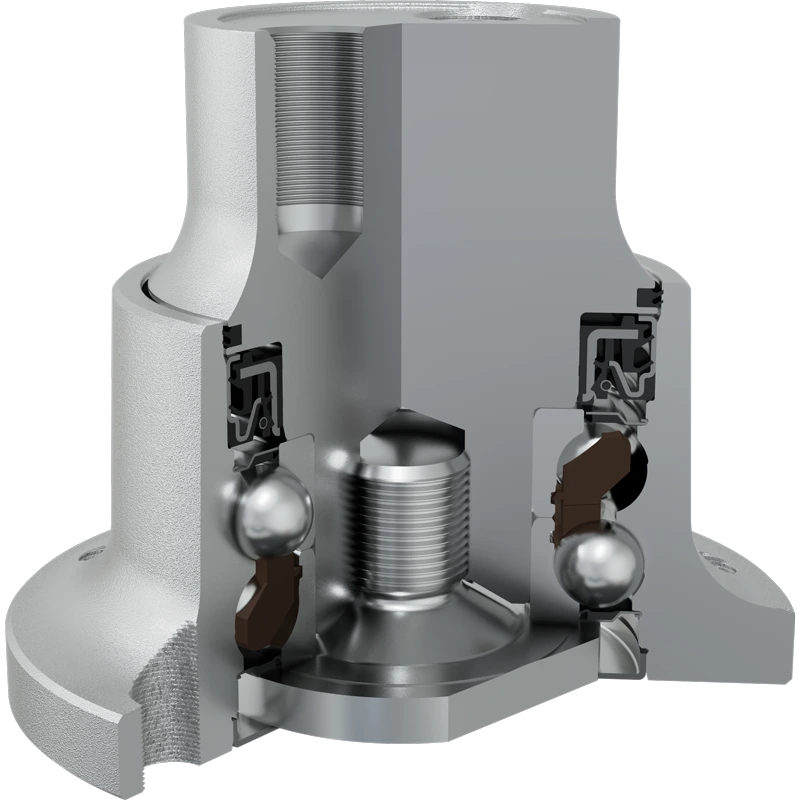

SHEET METAL SHIELD + S SEAL / S SEAL + DIRTBLOCK SEAL + DOUBLE SEAL
The sheet metal shield and S-seal, together with the attached disc, eliminate the possibility of contamination from the flange side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation.
The additional double lip seal protects the bearing from contaminant ingress and ensures a longer service life of the bearing.
Cross references
| HORSCH | 28077800 |
| HORSCH | 28085600 |
| HORSCH | 28071300 |
| HORSCH | 28077900 |
| RBF | PN60041 |
| RBF | PN70042 |
| FRD | FRD005 |
Installations
| HORSCH | JOKER RT |
