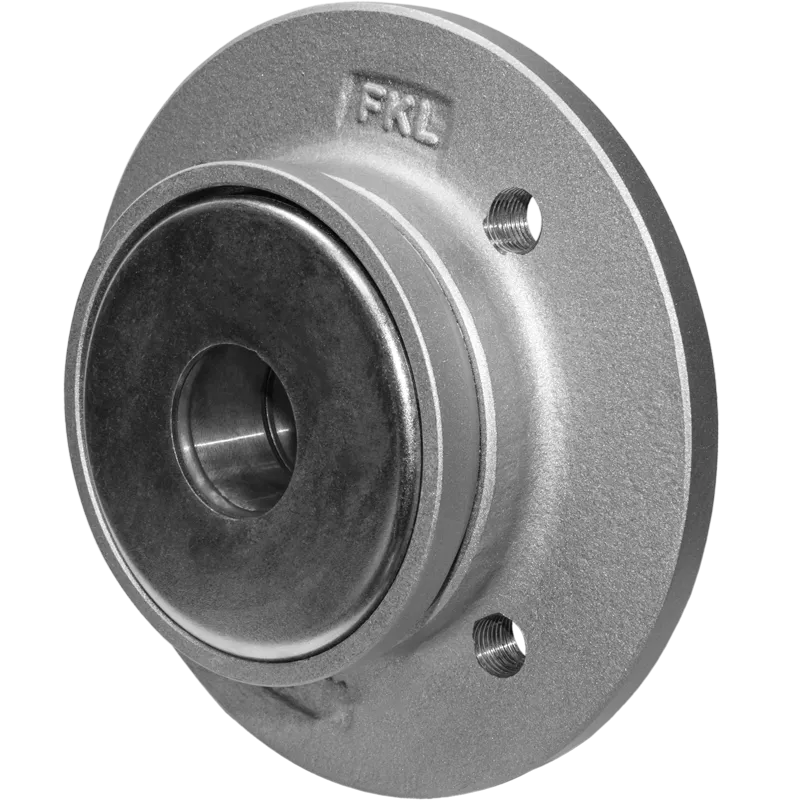

IL50V-104/4T-B30

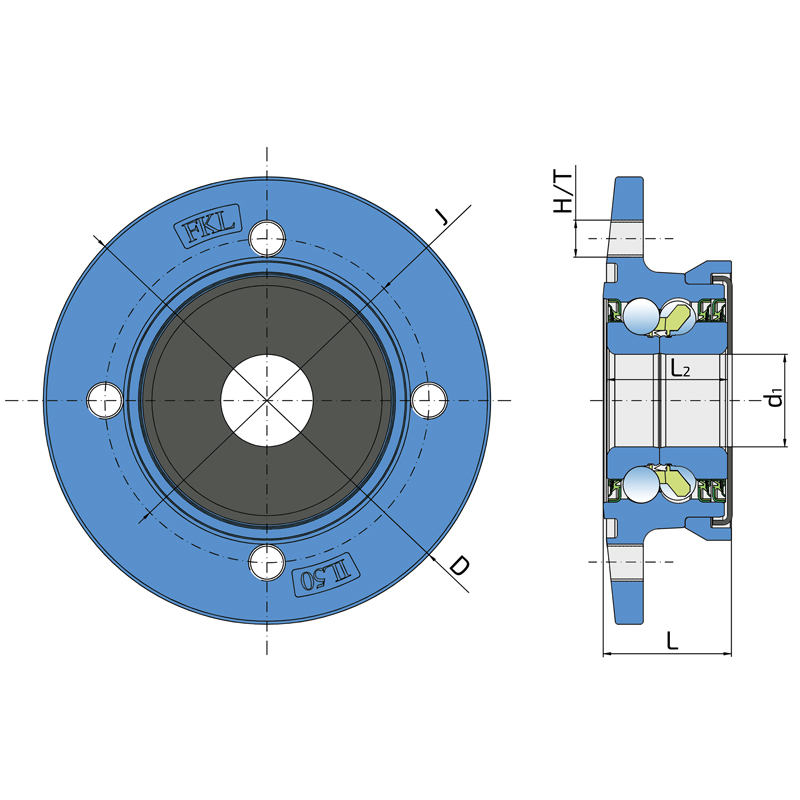

Technical specifications
| J | Pitch circle diameter | 104 mm |
| D | Outside diameter | 145 mm |
| H/T | Hole/Thread | 4xM12x1.25 mm |
| d1 | Bore diameter | 30 mm |
| L | Total length | 41.8 mm |
| L2 | Bearing width | 39 mm |
| Cdyn | Dynamic load rating | 47.4 kN |
| Co | Static load rating | 38.3 kN |
| Pu | Fatigue load limit | 1.61 kN |

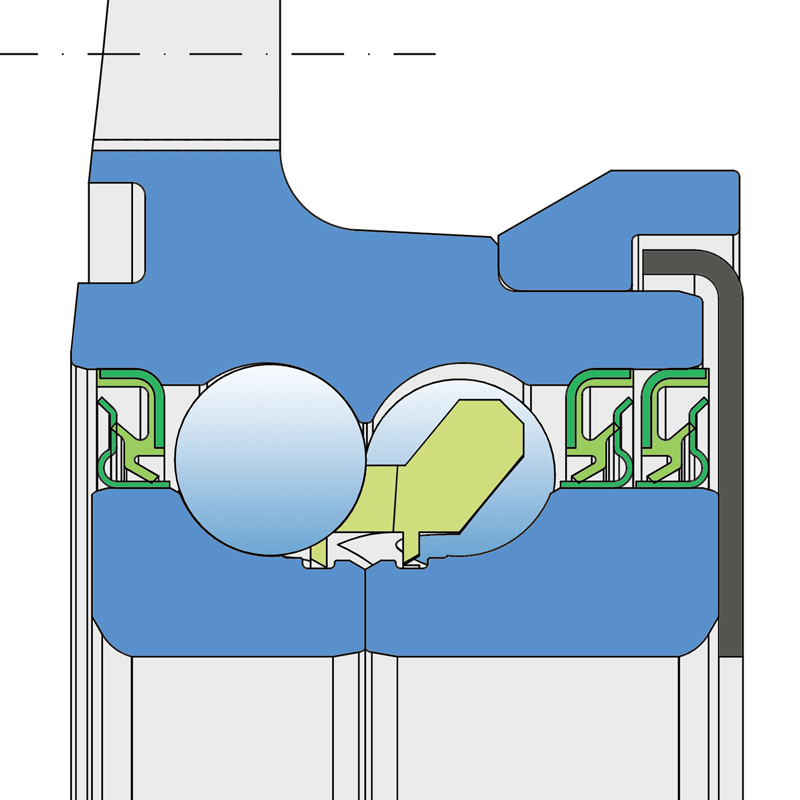

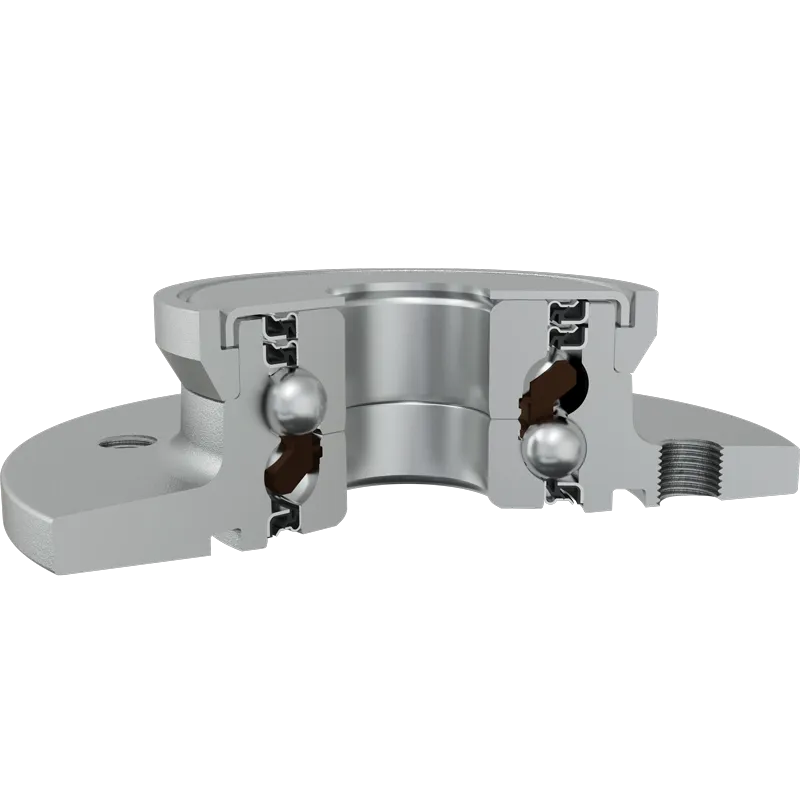

CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD
Cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.
Cross references
| VADERSTAD | 177483-SP |
| VADERSTAD | 184594 |
Installations
| VADERSTAD | RAPID 300-400C/S |
| VADERSTAD | RAPID 400-800S |
| VADERSTAD | SPIRIT 600C |
