IL50V-100/4T-M24x2

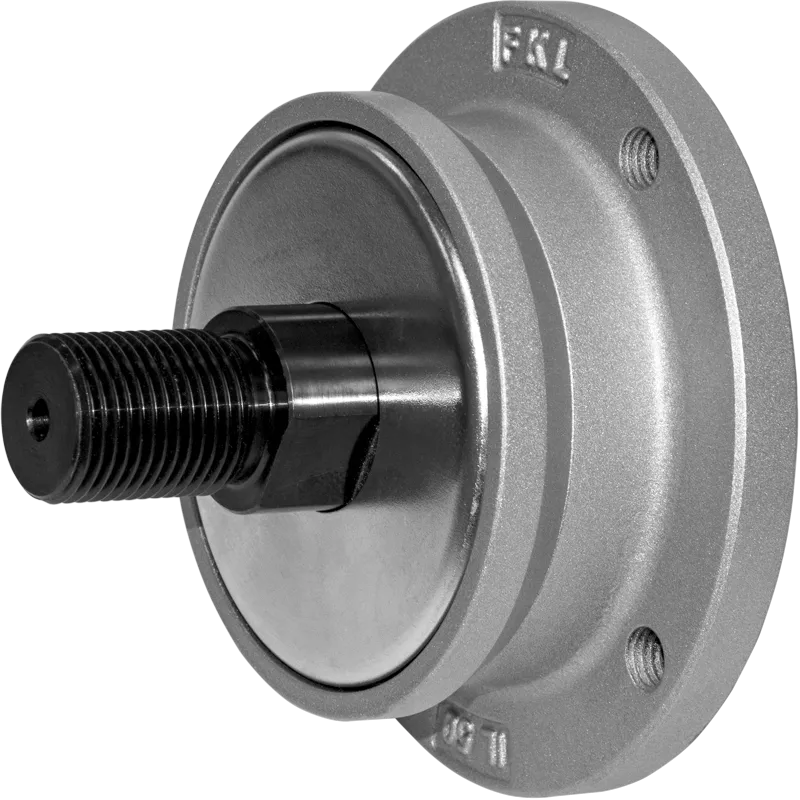

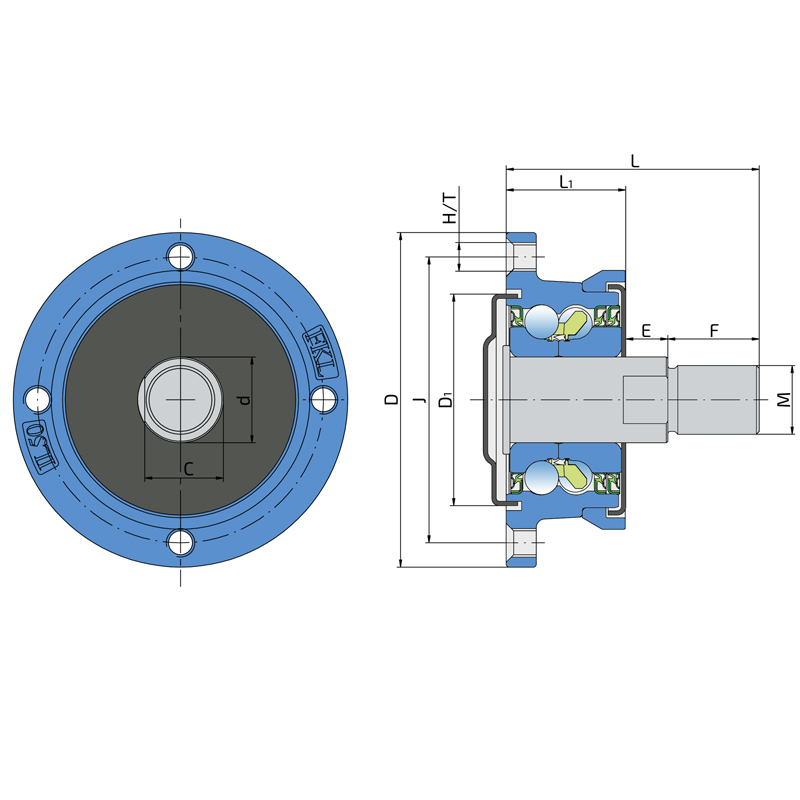

Technical specifications
| J | Pitch circle diameter | 100 mm |
| D | Outside diameter | 117 mm |
| D1 | Centar bore on the disc | 74 mm |
| H/T | Hole/Thread | 4xM10 mm |
| d | Bore diameter | 30 mm |
| C | D-shape hole cut out dimension | 27.5 mm |
| M | Outher Thread | M24x2 mm |
| L | Total length | 88.5 mm |
| L1 | Total flange length | 41.8 mm |
| E | Length of D shape | 14.7 mm |
| F | Length of threaded part | 32 mm |
| kg | Mass | 2.167 kg |
| Cdyn | Dynamic load rating | 47.4 kN |
| Co | Static load rating | 38.3 kN |
| Pu | Fatigue load limit | 1.609 kN |
SHEET METAL SHIELD + CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD

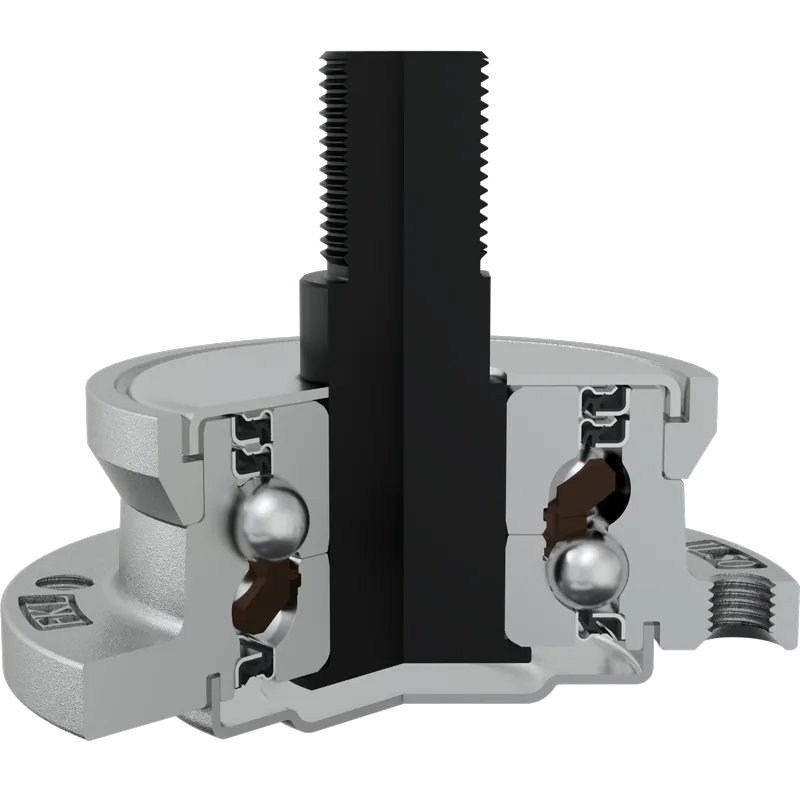

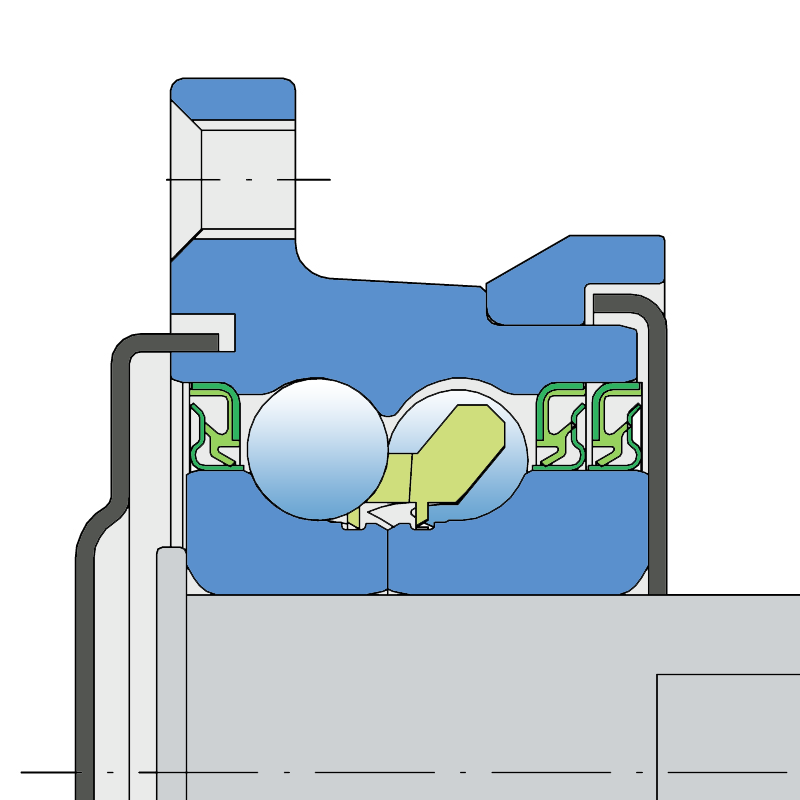

Sheet metal shield and cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.
Cross references
| UNIA | IL50V-100/4T-24x2 |
