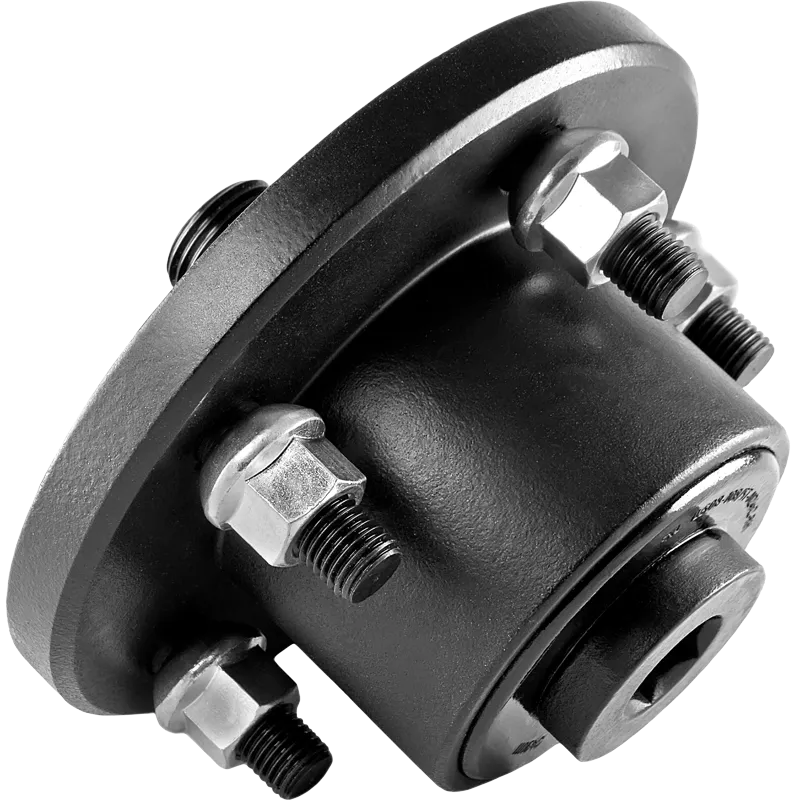

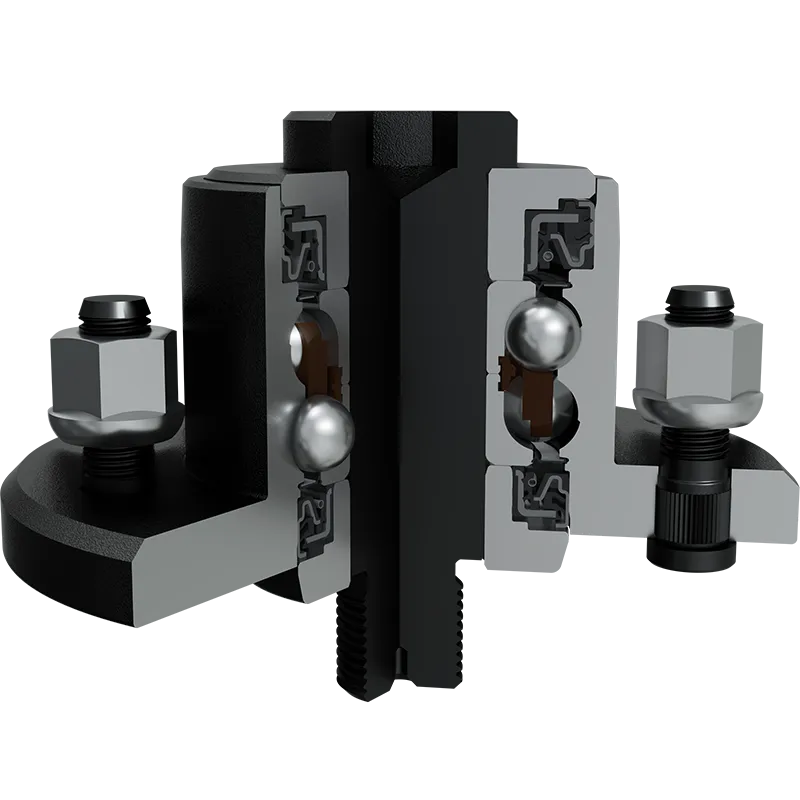

IL50B-108/5T-M24x2-RH(LH)
.webp)

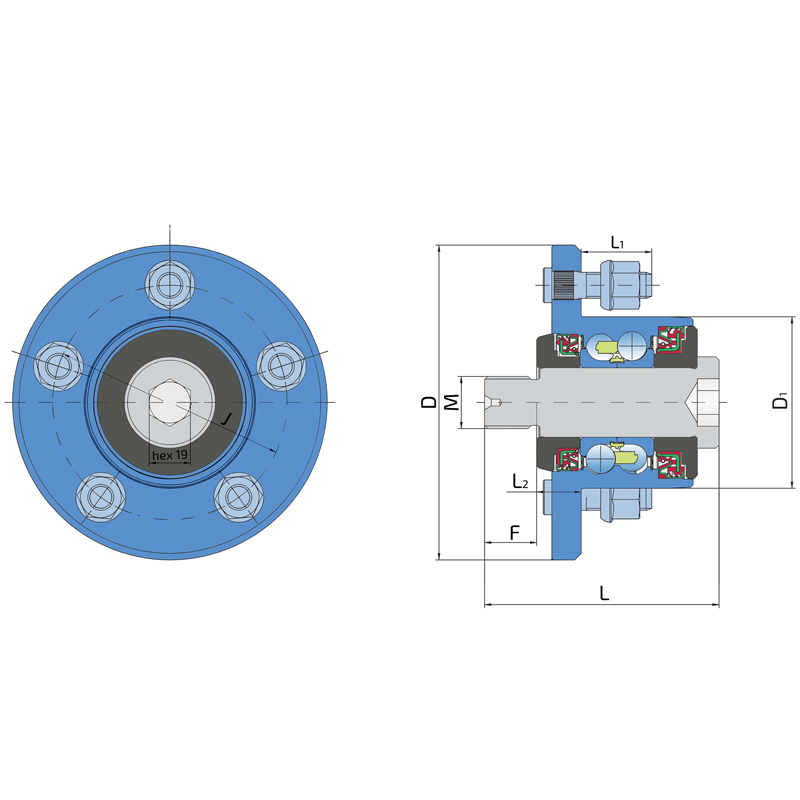

Technical specifications
| J | Pitch circle diameter | 108 mm |
| D | Outside diameter | 145 mm |
| D1 | Centar bore on the disc | 79 mm |
| M | Outher Thread | M24x2 mm |
| L | Total length | 108 mm |
| L1 | Stud thread length | 32.5 mm |
| L2 | The distance from the mounting surface to the front of the flange on which the disc is installed | 20.5 mm |
| D3 | The outer diameter of the hub body | 79 mm |
| F | Length of threaded part | 24 mm |
| kg | Mass | 3.985 kg |
| Cdyn | Dynamic load rating | 60 kN |
| Co | Static load rating | 45.8 kN |
| Pu | Fatigue load limit | 1.924 kN |
.jpg)

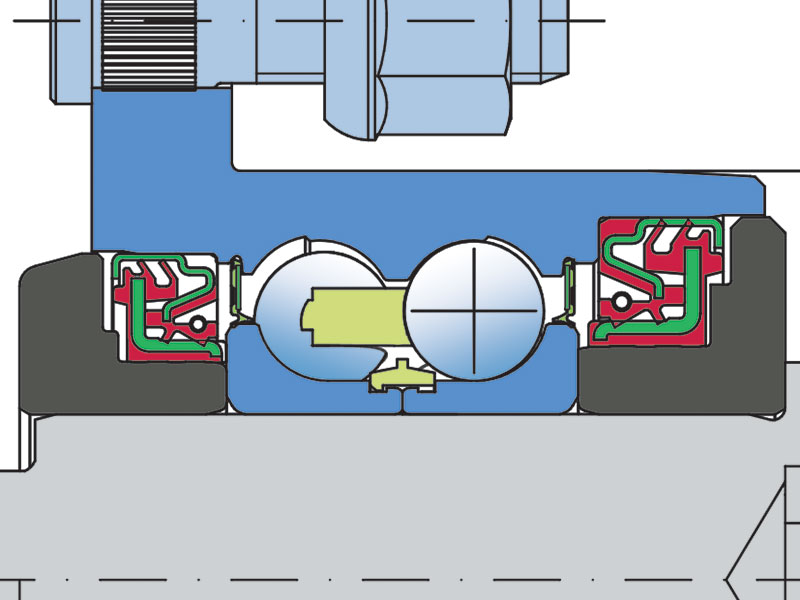

FORGED COVER PLATE+DIRTBLOCK SEAL+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE
RS seal and dirtblock seal with cover plate on both sides provide equal protection against contaminants. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life. The Cover plate protect the Dirtblock seal from mechanical damage.
Cross references
| GRAYTILL | 011-1001 (011-1002) |
Installations
| GRAYTILL | GT series |
