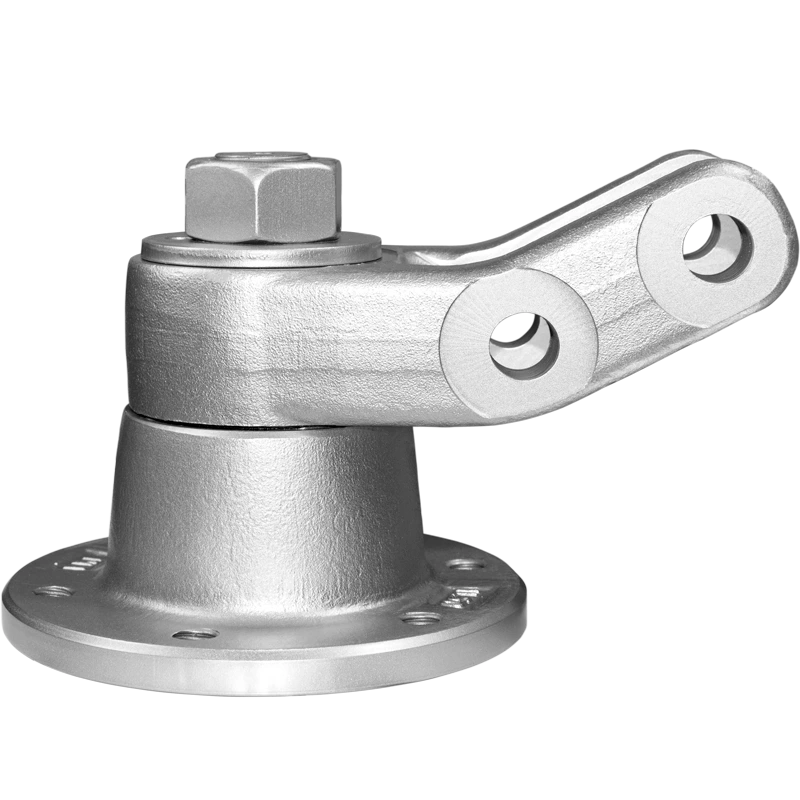

IL50-98/4T-44

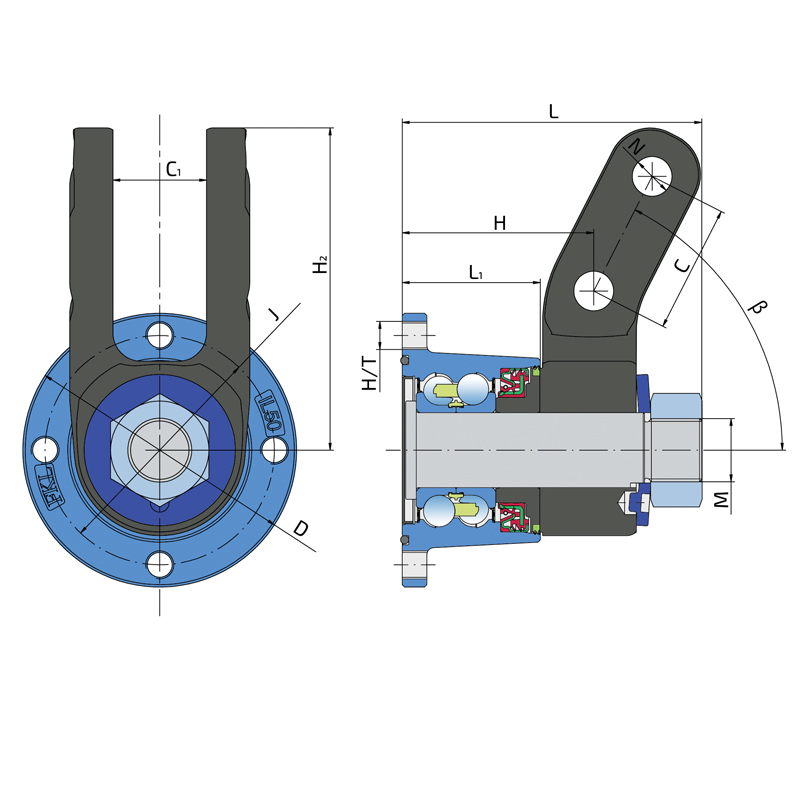

Technical specifications
| J | Pitch circle diameter | 98 mm |
| D | Outside diameter | 117 mm |
| C | Distance between holes | 55 mm |
| C1 | Disk harrow arm width | 40 mm |
| M | Outher Thread | M27x2 mm |
| H/T | Hole/Thread | 4xM12x1.25 mm |
| H2 | Distance between the bearing axis and the end of the holder | 137.7 mm |
| N | Hole diameter | 17 mm |
| L | Total length | 128 mm |
| L1 | Total flange length | 59 mm |
| β | Angle of the holder | 63 ° |
| kg | Mass | 2.5 kg |
| Cdyn | Dynamic load rating | 60 kN |
| Co | Static load rating | 45.8 kN |
| Pu | Fatigue load limit | 1.92 kN |

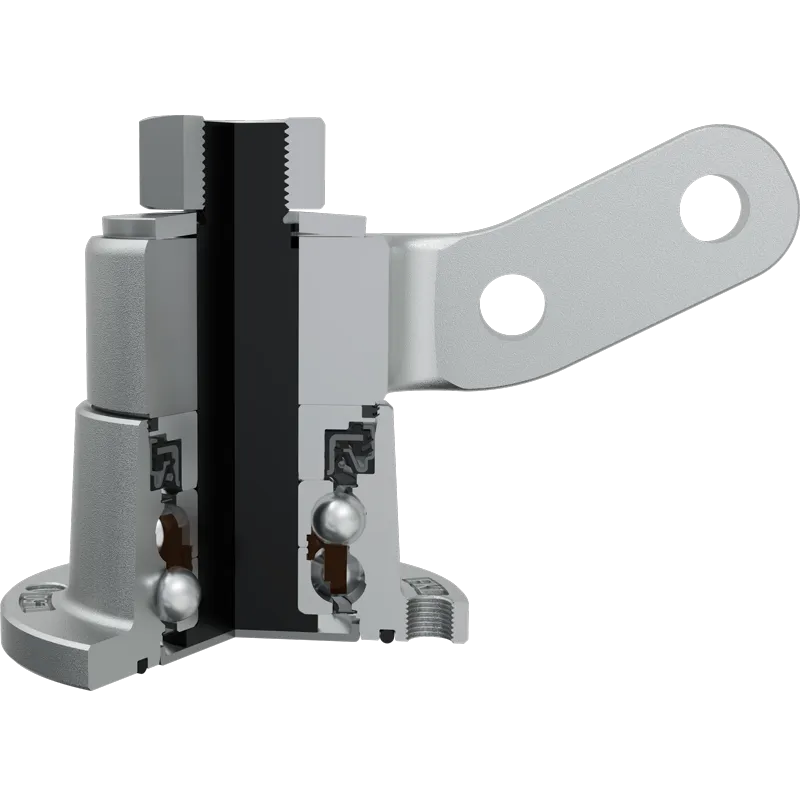

O-RING + SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + DOUBLE SEAL + FORGED COVER PLATE

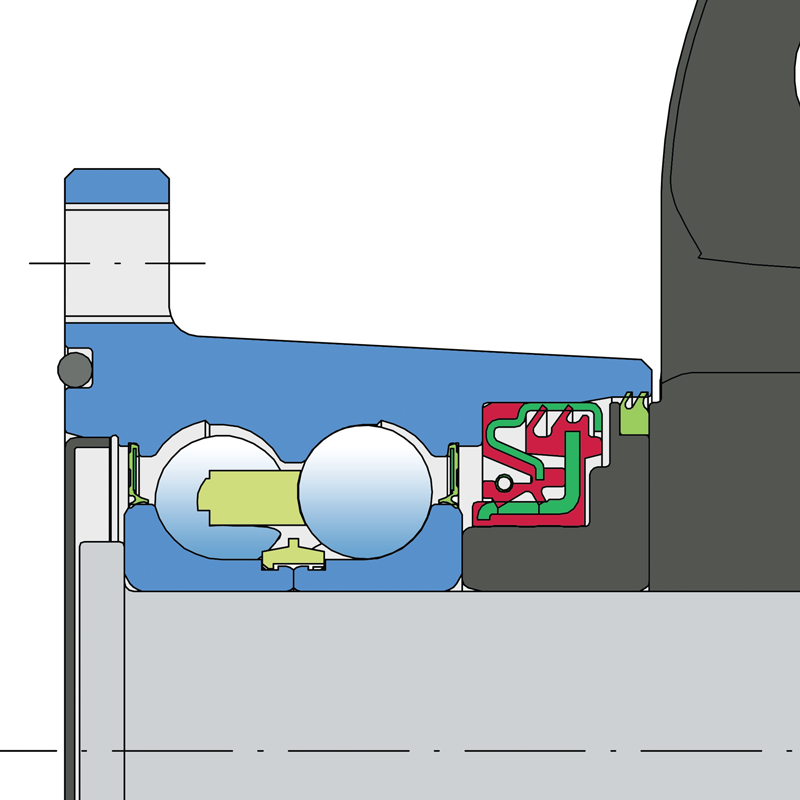

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.
O-ring, Sheet metal shield and RS seal together with attached special disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
Additional double seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.
