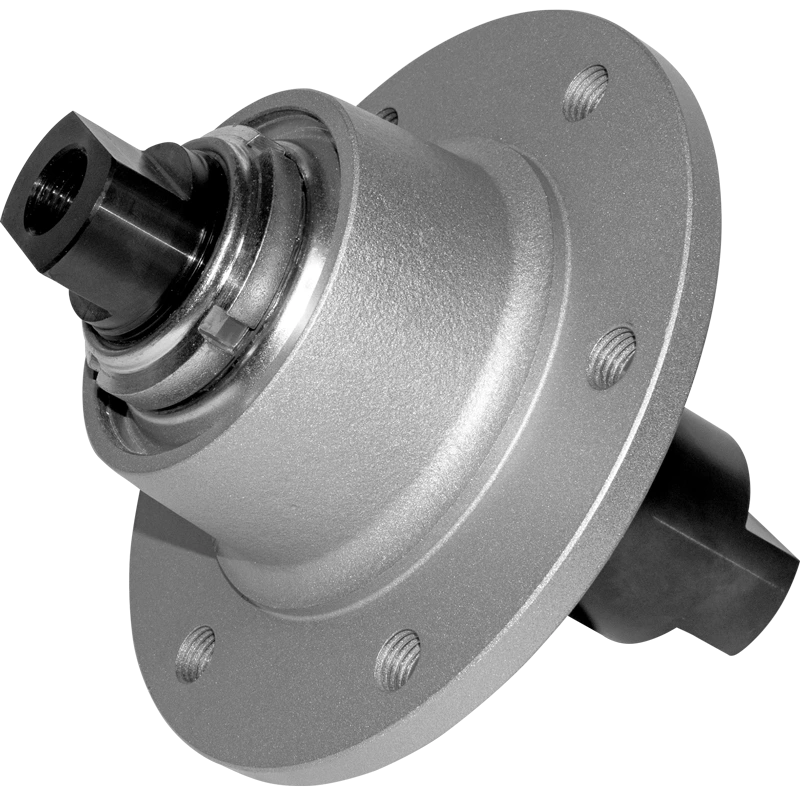

IL40-120/6T-2xM16

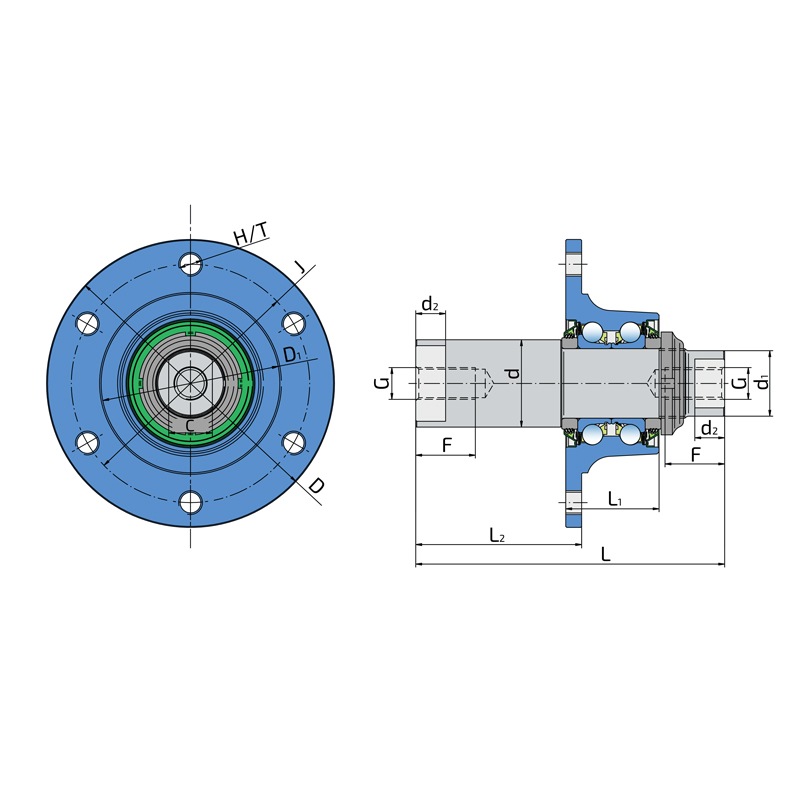

Technical specifications
| J | Pitch circle diameter | 120 mm |
| D | Outside diameter | 145 mm |
| D1 | Centar bore on the disc | 90 mm |
| d | Shaft diameter | 44 mm |
| d1 | Shaft diameter | 33 mm |
| d2 | Length of the flattened part of the shaft | 15 mm |
| C | D-shape hole cut out dimension | 2x22 mm |
| G | Internal Thread | M16x1.5 mm |
| L | Total length | 155.5 mm |
| L1 | Total flange length | 47 mm |
| L2 | Distance from the front end of the shaft to the flange face | 83.5 mm |
| F | Length of threaded part | 30 mm |
| kg | Mass | 3.08 kg |
| Cdyn | Dynamic load rating | 42.9 kN |
| Co | Static load rating | 36.3 kN |
| Pu | Fatigue load limit | 1.525 kN |

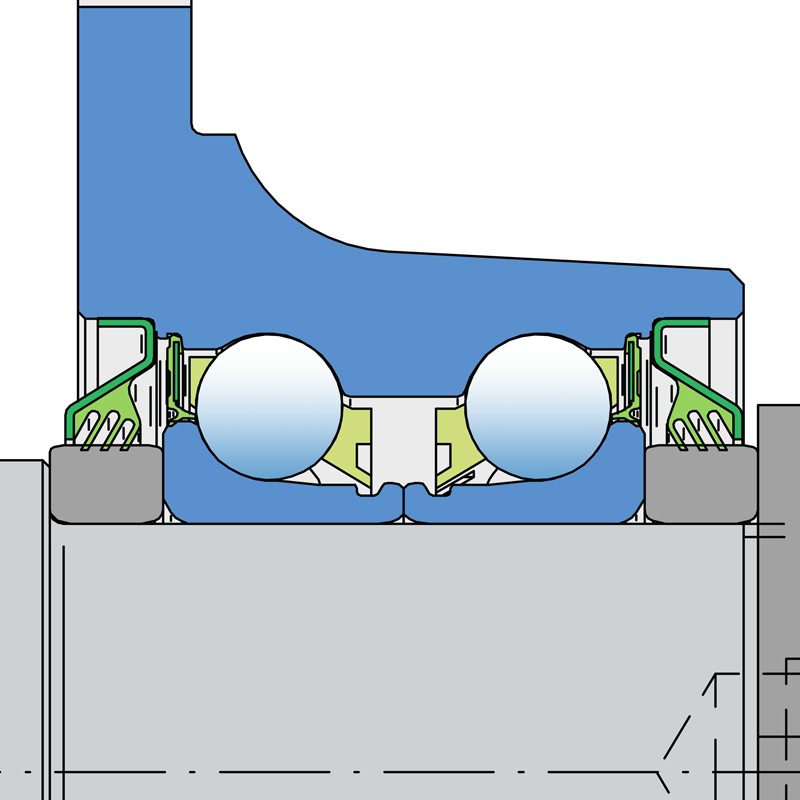

T SEAL + RS SEAL / RS SEAL + T SEAL
Trousna zaptivka zajedno sa RS zaptivkom obezbeđuje optimalnu zaštitu ležaja od prodora nečistoća, vlage i prašine.
Trousna zaptivka služi kao primarna barijera protiv spoljašnjih kontaminanata, dok RS zaptivka dodatno sprečava curenje maziva i štiti unutrašnji prostor ležaja. Ova kombinacija omogućava dugotrajan rad i pouzdanost u teškim radnim uslovima.
Cross references
| WEAVING | IL40-120/6T-2xM16 |
