IL35-98/4T-M22x1.5

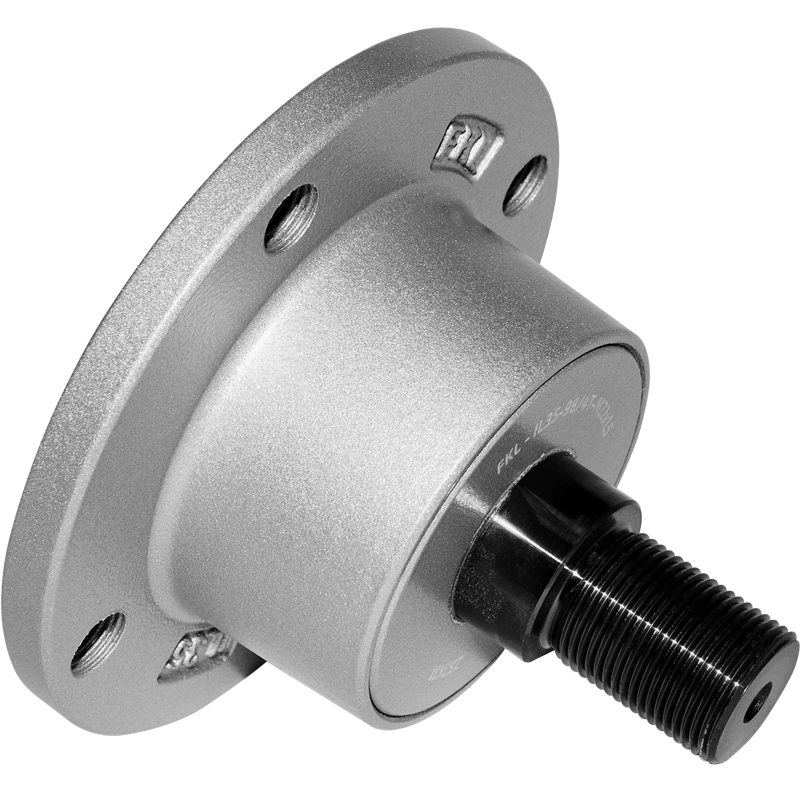

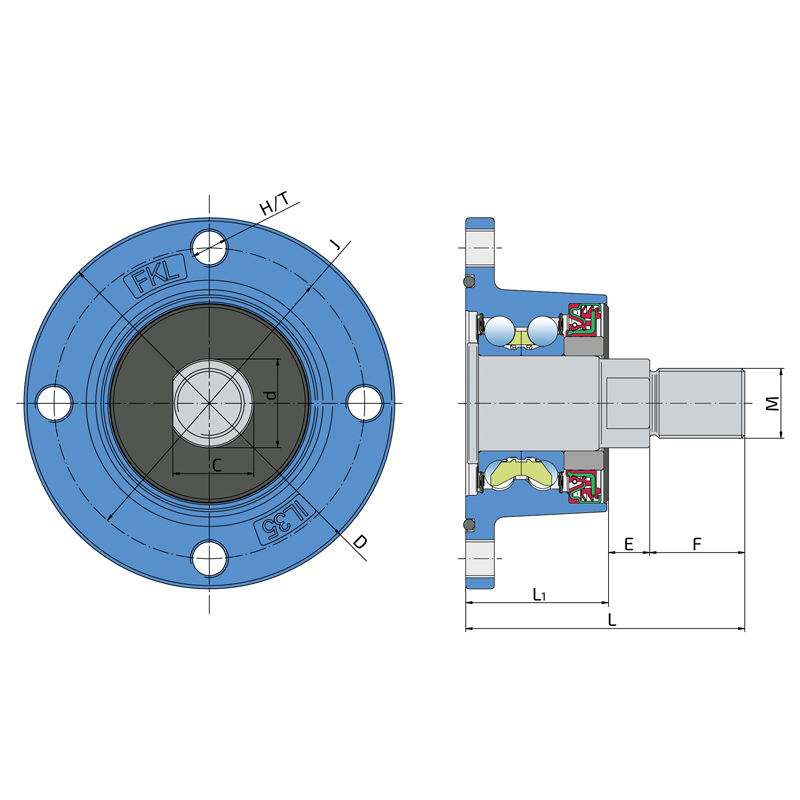

Technical specifications
| J | Pitch circle diameter | 98 mm |
| D | Outside diameter | 117 mm |
| H/T | Hole/Thread | 4xM12x1.25 mm |
| d | Shaft diameter | 28 mm |
| C | D-shape hole cut out dimension | 25.5 mm |
| M | Outher Thread | M22x1.5 mm |
| L | Total length | 88 mm |
| L1 | Total flange length | 45 mm |
| E | Length of D shape | 13 mm |
| F | Length of threaded part | 30 mm |
| kg | Mass | 1.647 kg |
| Cdyn | Dynamic load rating | 37.5 kN |
| Co | Static load rating | 26.5 kN |
| Pu | Fatigue load limit | 1.113 kN |
O-RING + RS SEAL / RS SEAL + DIRTBLOCK SEAL + SHEET METAL COVER

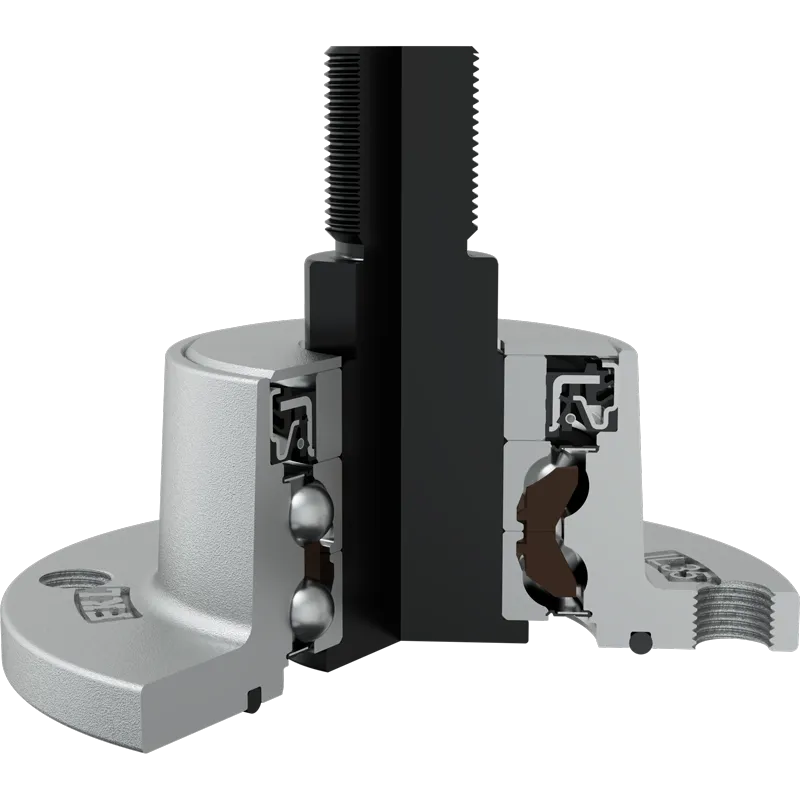

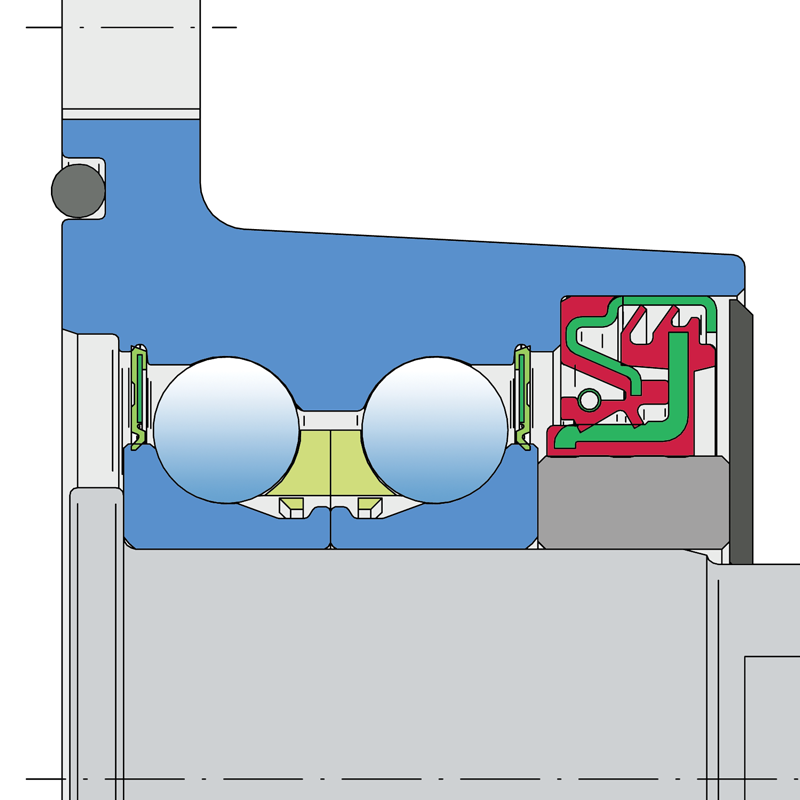

O-ring and RS seal on the base side and RS seal, Dirtblock seal with Sheet metal cover on the front side which is exposed to contaminants.
O-ring and RS seal together with attached disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. The sheet metal cover provides additional protection for the cassette seal against mechanical damage.
This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
Cross references
| CFS | IL35-98/4T-M22x1.5 |
| PEER | HUB-30MM |
